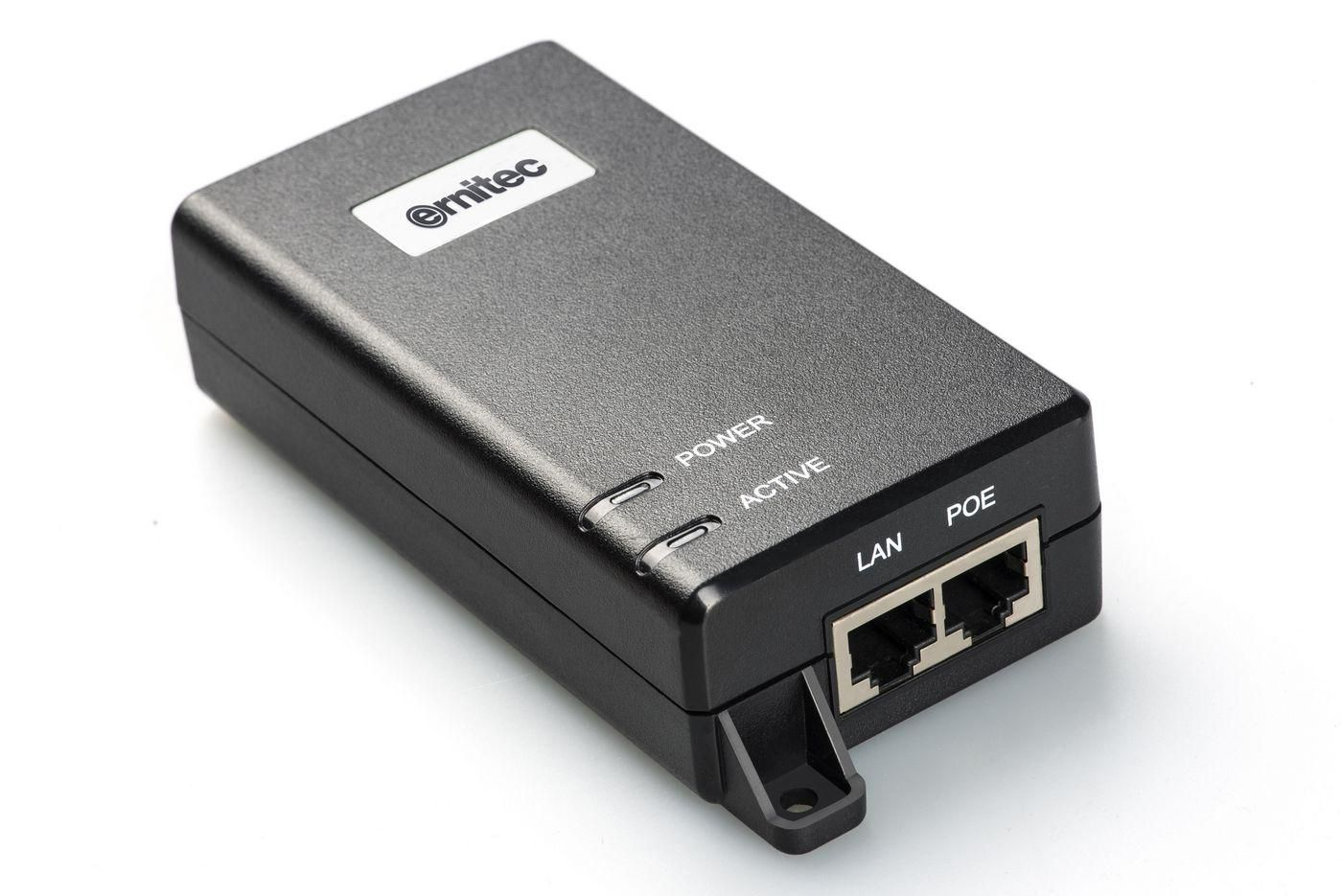

ELECTRA-P2-60W-1 PoE adapter Fast Ethernet, Gigabit Ethernet
52 V
Model ELECTRA-P2-60W-1EAN 5715063037072
31 specifications
- Weight120 g
- ColourBlack
- Ethernet interface typeFast Ethernet, Gigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage52 V
- Operating temperature (T-T)-10 - 50 °C
Overview
- Weight
- 120 g
- Colour
- Black
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 52 V
- Operating temperature (T-T)
- -10 - 50 °C
- Brand
- Ernitec
- Category
- PoE Adapter
- Model
- ELECTRA-P2-60W-1
- Part number
- ELECTRA-P2-60W-1
- EAN / UPC
- 5715063037072
- Also known as
- Ernitec ELECTRA-P2-60W-1 PoE adapter Fast Ethernet, Gigabit Ethernet 52 V
Specifications
31 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Duplex system | Full, Half |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Transmission method | Store-And-Forward |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Maximum operating distance | 100 m |
| LED indicators | Activity, Power |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 52 V |
| AC adapter input voltage | 100 - 240 V |
| DC output voltage | 52 V |
| Total Power over Ethernet (PoE) budget | 60 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 48 mm |
| Depth | 113 mm |
| Height | 30 mm |
| Weight | 120 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package length | 20.5 cm |
| Package width | 134 mm |
| Package height | 47 mm |
| Package weight | 300 g |
