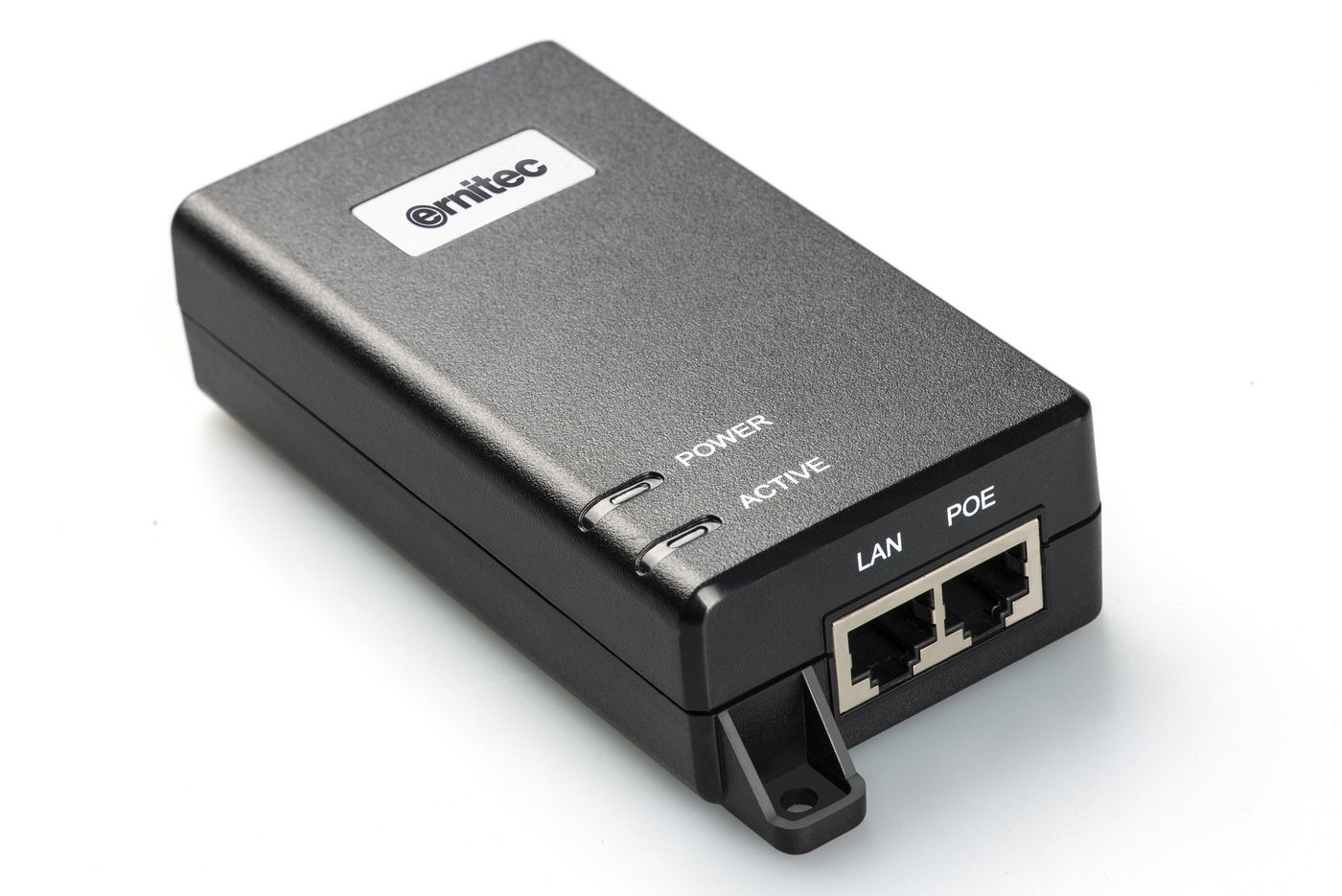

ELECTRA-P2-60W PoE adapter Gigabit Ethernet
55 V
Model ELECTRA-P2-60WEAN 5706998911421
41 specifications
- Weight300 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage55 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 300 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 55 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Ernitec
- Category
- PoE Adapter
- Model
- ELECTRA-P2-60W
- Part number
- ELECTRA-P2-60W
- EAN / UPC
- 5706998911421
- Also known as
- Ernitec ELECTRA-P2-60W PoE adapter Gigabit Ethernet 55 V
Specifications
41 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Data |
| Safety | cUL/UL, CE, FCC |
| Power protection features | Over current |
Ports & interfaces
| Specification | Value |
|---|---|

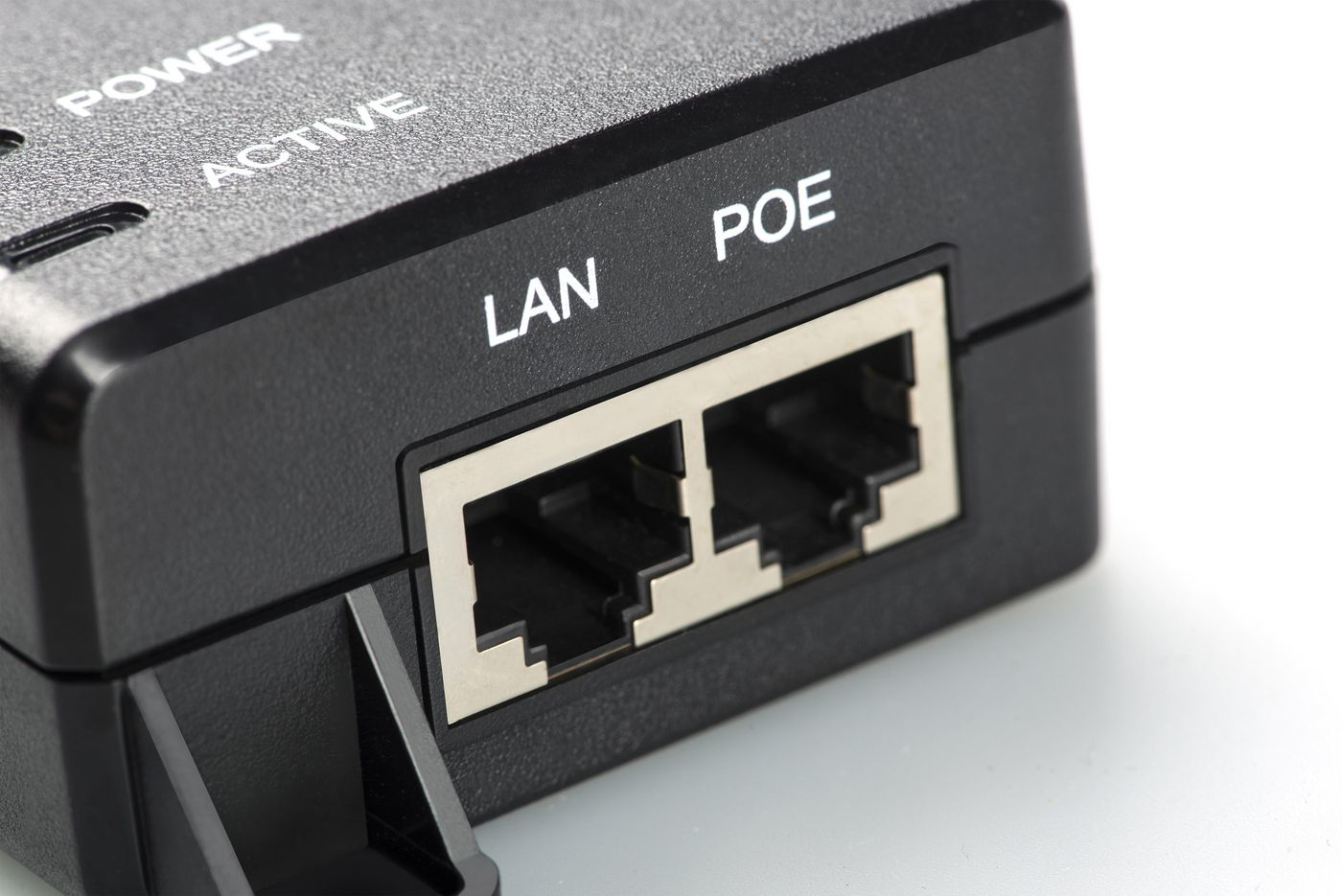

| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 55 V |
| Output power | 60 W |
| AC adapter input voltage | 100 - 240 V |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Output current | 1.1 A |
| Power over Ethernet (PoE) power per port | 60 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC CFR47 Part 15, EN55024, EN55032 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65.8 mm |
| Depth | 33.5 mm |
| Height | 145.5 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 171 mm |
| Package depth | 144 mm |
| Package height | 57 mm |
| Package weight | 454 g |
