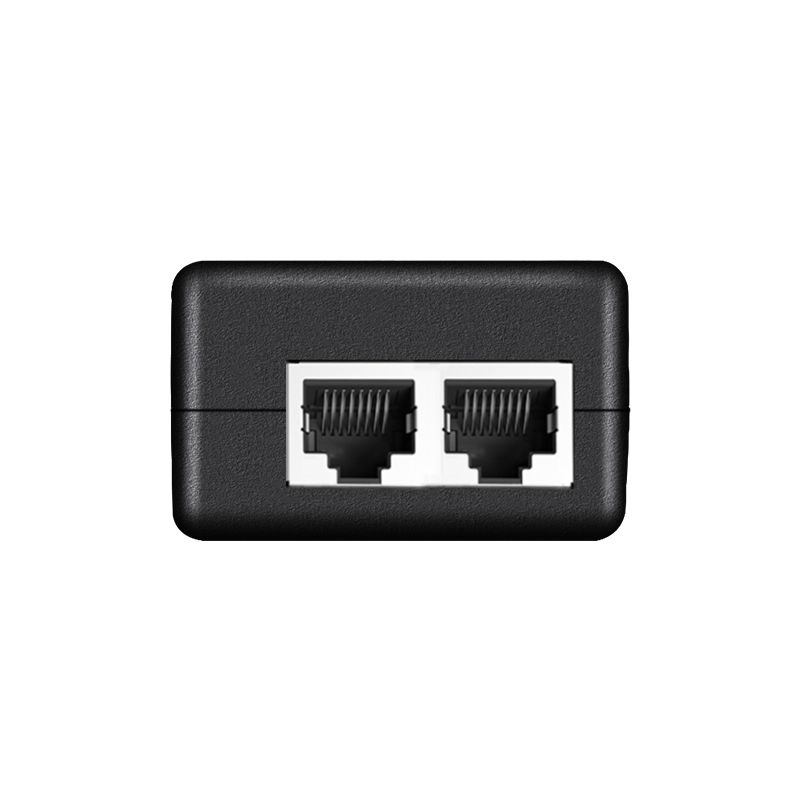

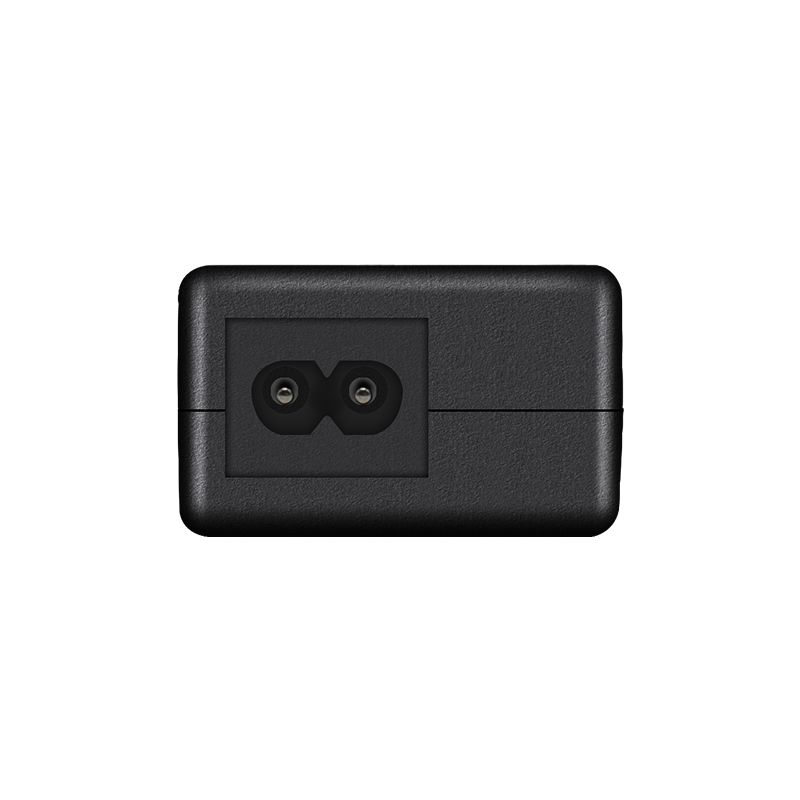

Ernitec ELECTRA-P2-30W-1 PoE adapter Fast Ethernet

ELECTRA-P2-30W-1 PoE adapter Fast Ethernet

48 V

Model ELECTRA-P2-30W-1EAN 5715063037065

25 specifications

Weight120 g
ColourBlack
Ethernet interface typeFast Ethernet
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage48 V
Operating temperature (T-T)-10 - 55 °C

See all specifications

Overview

Weight: 120 g
Colour: Black
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) voltage: 48 V
Operating temperature (T-T): -10 - 55 °C

Brand: Ernitec
Category: PoE Adapter
Model: ELECTRA-P2-30W-1
Part number: ELECTRA-P2-30W-1
EAN / UPC: 5715063037065
Also known as: Ernitec ELECTRA-P2-30W-1 PoE adapter Fast Ethernet 48 V

Specifications

25 specifications in 9 groups

Network

Specification	Value
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100
Power over Ethernet (PoE)	Yes
Duplex system	Full
Networking standards	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Features

Specification	Value
Product colour	Black
LED indicators	Power

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2

Power

Specification	Value
Power over Ethernet (PoE) voltage	48 V
Output power	24 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C

Weight & dimensions

Specification	Value
Width	113 mm
Depth	48 mm
Height	30 mm
Weight	120 g

Packaging content

Specification	Value
Power cord included	Yes
Quick installation guide	Yes

Packaging data

Specification	Value
Package width	205 mm
Package depth	134 mm
Package height	47 mm
Package weight	300 g
