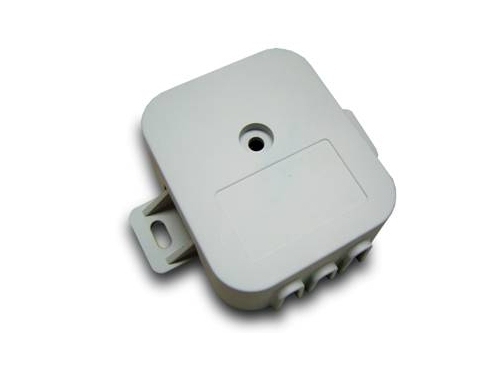

ESA-7500 Ethernet Surge Arrester 10/100 2kV Protection
Model ESA-7500EAN 5054484686637
18 specifications
- ColourWhite
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports2
- Operating temperature (T-T)-20 - 60 °C
- Dimensions (WxDxH)130 x 78 x 50 mm
Overview
- Colour
- White
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Operating temperature (T-T)
- -20 - 60 °C
- Dimensions (WxDxH)
- 130 x 78 x 50 mm
- Brand
- EnGenius
- Category
- PoE Adapter
- Model
- ESA-7500
- Part number
- ESA-7500
- EAN / UPC
- 5054484686637, 655216006126, 4713361931284, 5711045270659 +1 more
- Also known as
- EnGenius ESA-7500 Ethernet Surge Arrester 10/100 2kV Protection
Specifications
18 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3af |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| Surge protection | Yes |
| Power protection features | Over voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 78 x 50 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044090 |
