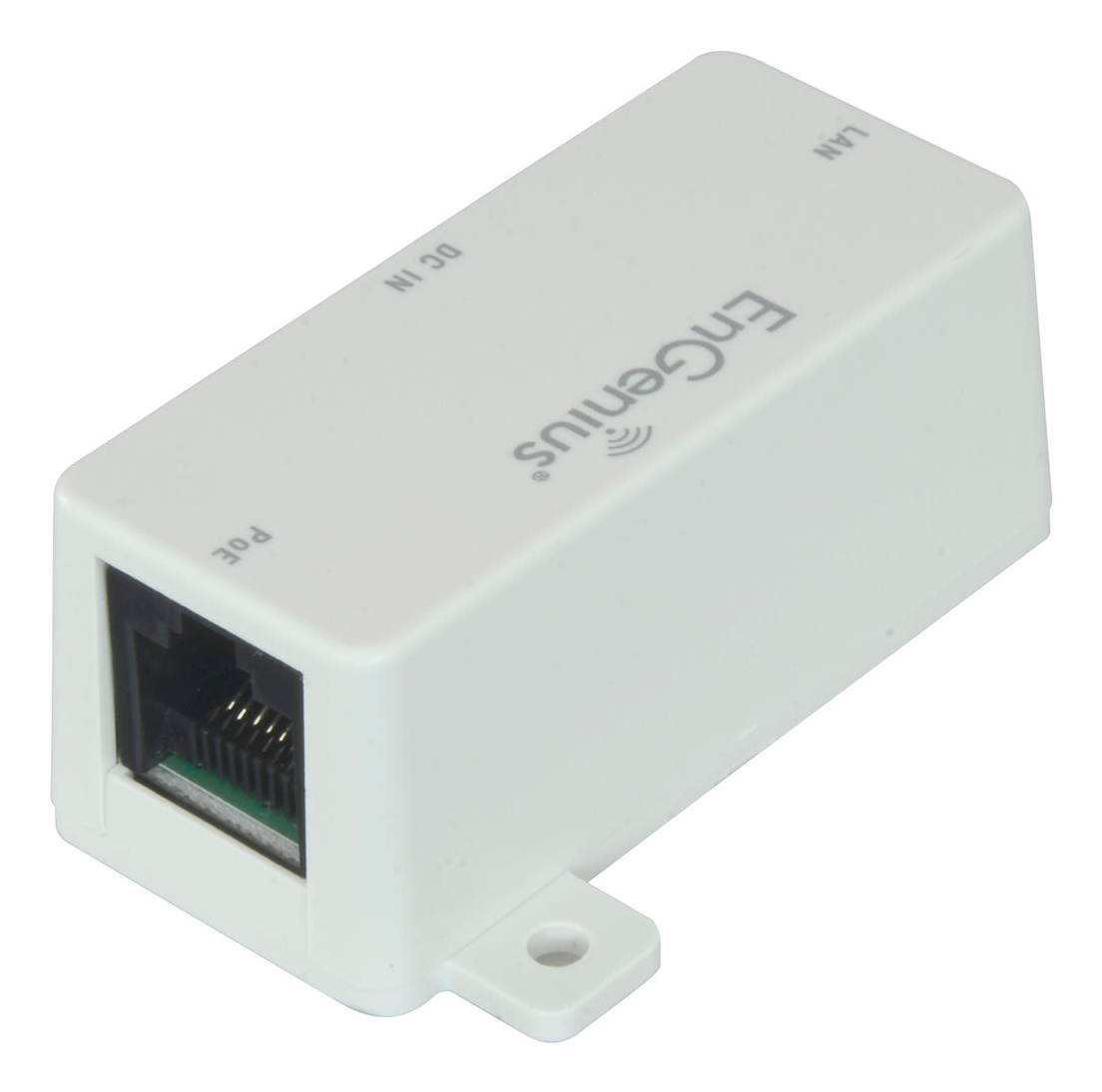

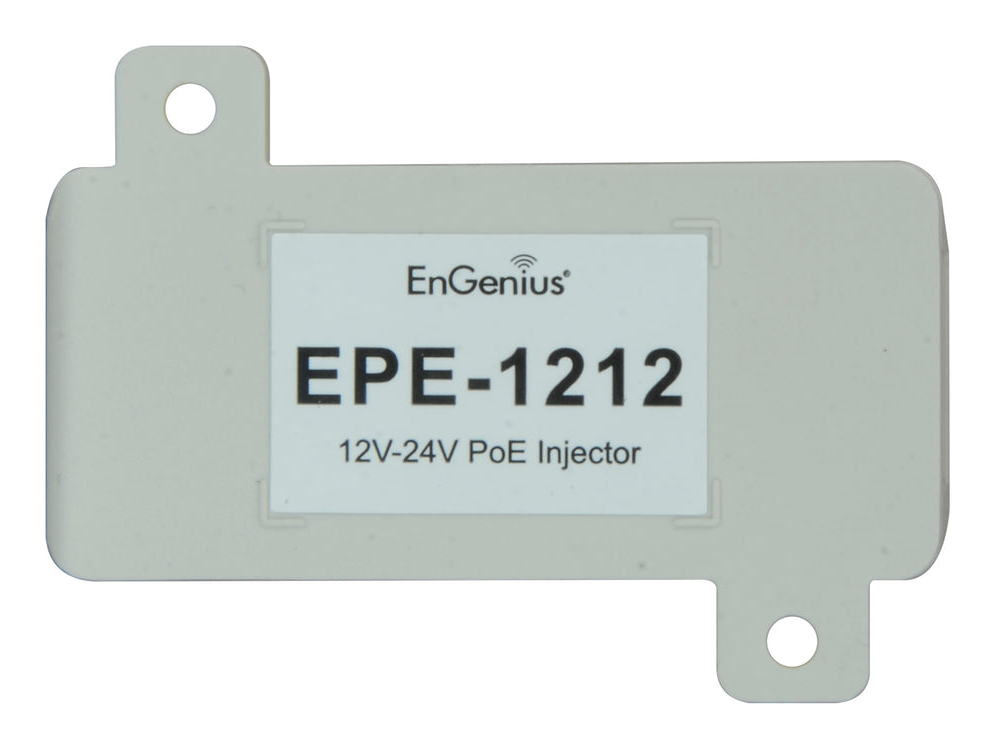

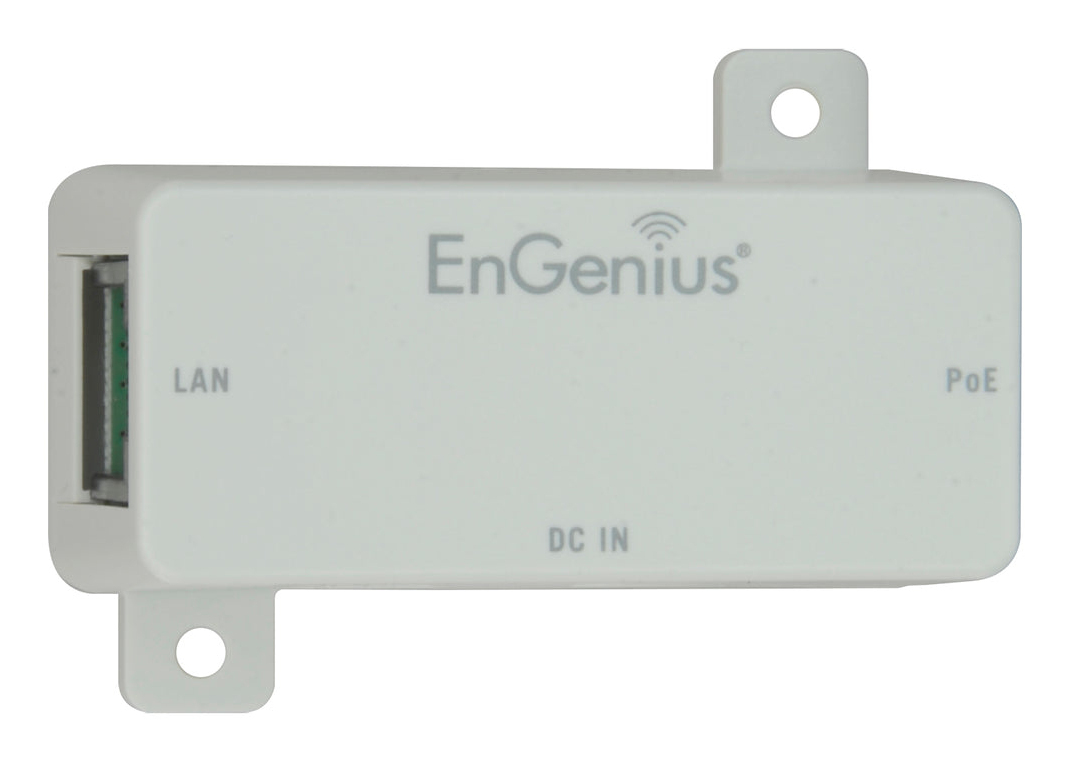

PoE injector for Proprietary 12/24V system (injector only)
Model EPE-1212EAN 4713361931079
29 specifications
- ColourWhite
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage24 V
- Operating temperature (T-T)0 - 60 °C
- Width27 mm
Overview
- Colour
- White
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 24 V
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 27 mm
- Brand
- EnGenius
- Category
- PoE Adapter
- Model
- EPE-1212
- Part number
- EPE-1212
- EAN / UPC
- 4713361931079, 655216005099, 4713361931062, 5711045448379 +1 more
- Also known as
- EnGenius PoE injector for Proprietary 12/24V system (injector only)
Specifications
29 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Mean time between failures (MTBF) | 20000 h |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 24 V |
| AC adapter frequency | 50 Hz |
| Input current | 0.6 A |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 27 mm |
| Depth | 60 mm |
| Height | 24 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 45 mm |
| Master (outer) case length | 60 mm |
| Master (outer) case height | 28 mm |
| Products per master (outer) case | 1 pc(s) |
