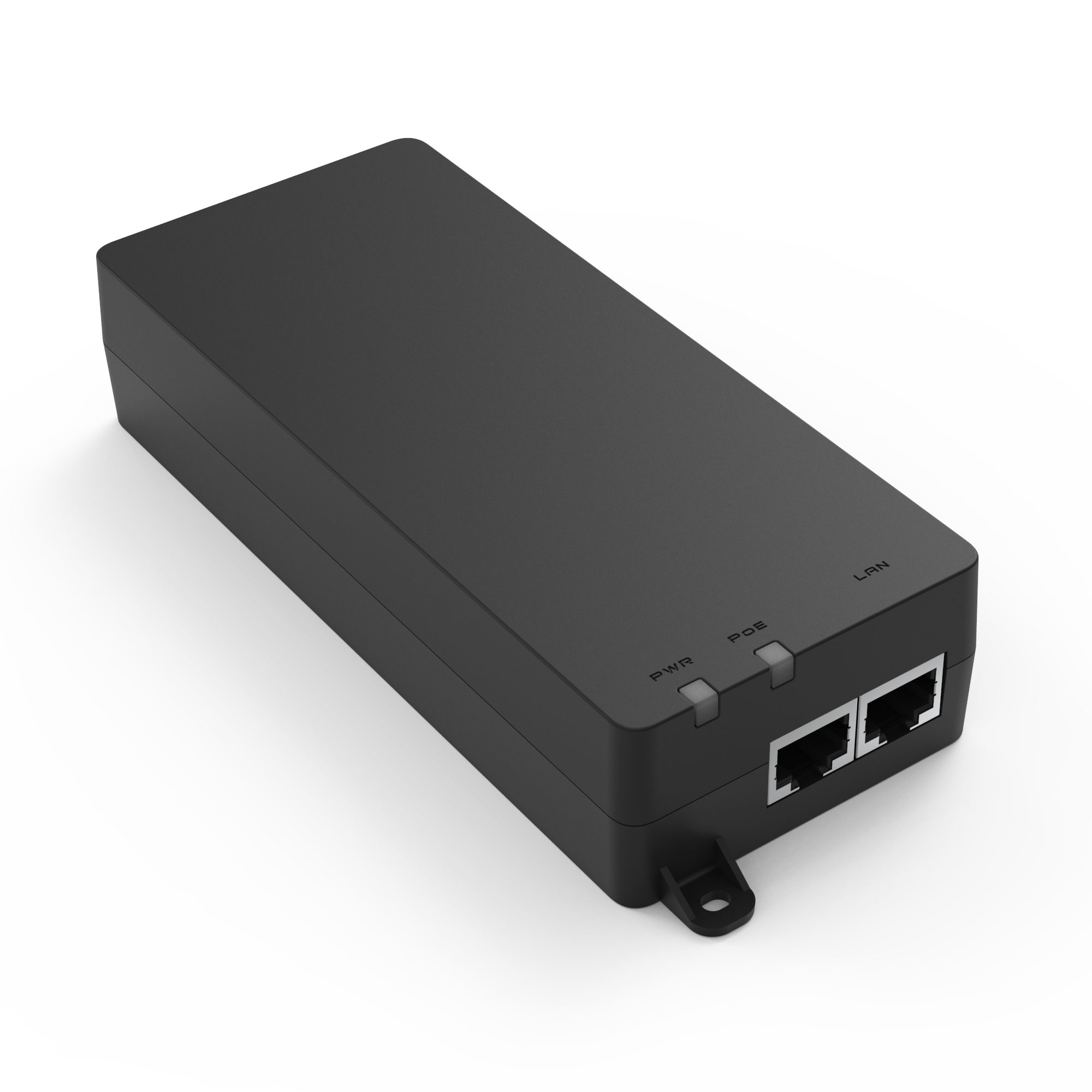

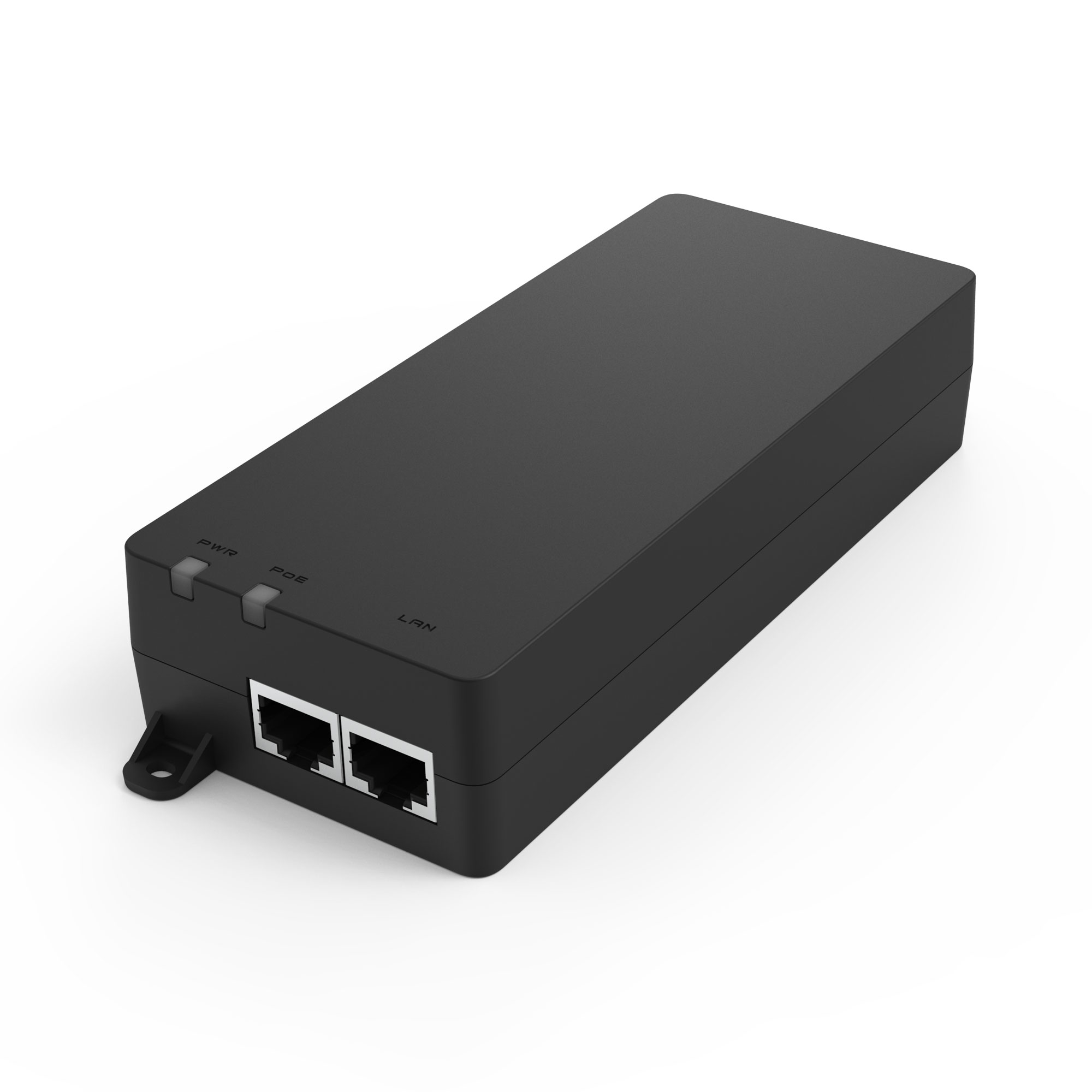

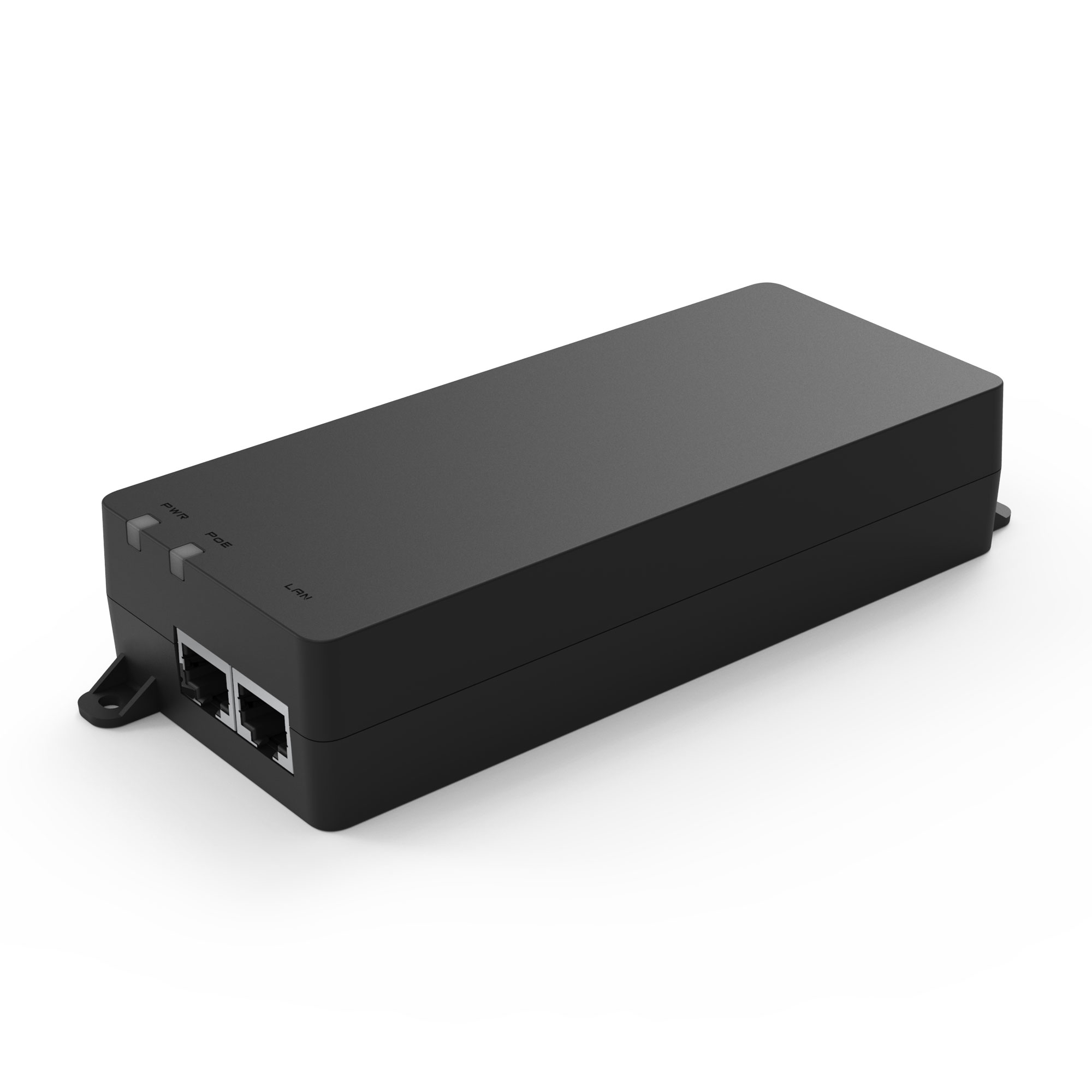

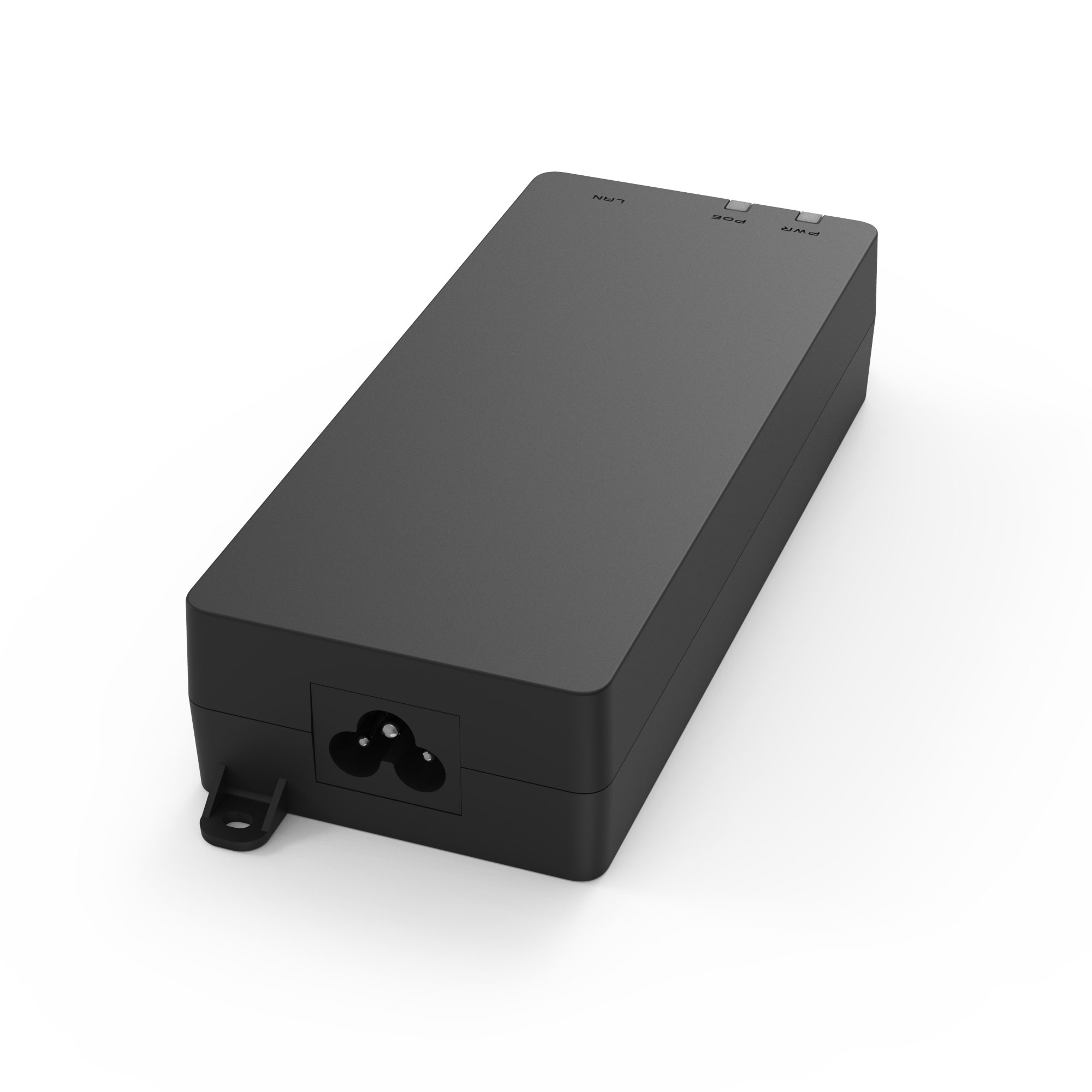

EPA5090HBT PoE adapter 2.5 Gigabit Ethernet
0.5 V
Model EPA5090HBTEAN 655216010901
34 specifications
- Weight354 g
- ColourBlack
- Ethernet interface type2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage0.5 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 354 g
- Colour
- Black
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 0.5 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- EnGenius
- Category
- PoE Adapter
- Model
- EPA5090HBT
- Part number
- EPA5090HBT
- EAN / UPC
- 655216010901, 4713361936135
- Also known as
- EnGenius EPA5090HBT PoE adapter 2.5 Gigabit Ethernet 0.5 V
Specifications
34 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Easy to install | Yes |
| Plug and Play | Yes |
| Surge protection | Yes |
| LED indicators | PoE, Power |
| Pin assignment & polarity | Pin 4 (Vdc+), Pin 5 (Vdc+), Pin 7 (Vdc-), Pin 8 (Vdc-) |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 0.5 V |
| Output power | 90 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Surge protection voltage | 4 kV |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC 62328-1: 2014, UL 62328-1, FCC Subpart 15 Class B, EN 55032: 2012 / AC: 2013, EN 55024: 2010 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 150 mm |
| Height | 34 mm |
| Weight | 354 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package length | 17.8 cm |
| Package width | 90 mm |
| Package height | 72 mm |
| Package weight | 470 g |
