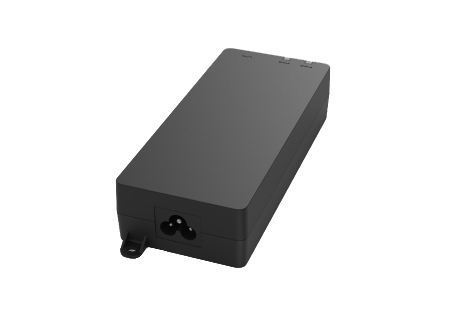

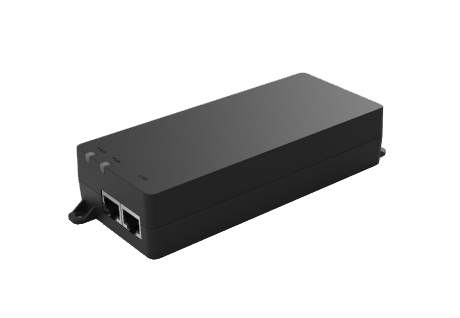

56V, 1.7A 90W AF/AT/BT 1GbE PoE Injector
Model EPA5090GBTEAN 655216010895
31 specifications
- Weight210 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Weight
- 210 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- EnGenius
- Category
- PoE Adapter
- Model
- EPA5090GBT
- Part number
- EPA5090GBT
- EAN / UPC
- 655216010895, 4713361936128
- Also known as
- EnGenius 56V, 1.7A 90W AF/AT/BT 1GbE PoE Injector
Specifications
31 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | Power |
| Pin assignment & polarity | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) |
| Power protection features | Over current, Over voltage, Short circuit |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Output power | 90 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 0.95A @ 120V, AC 0.5A @ 240V AC |
| Surge protection voltage | 4 kV |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 65 mm |
| Height | 34 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 178 mm |
| Package depth | 90 mm |
| Package height | 72 mm |
| Package weight | 470 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 200 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 20 pc(s) |
| Warranty period | 1 year(s) |
