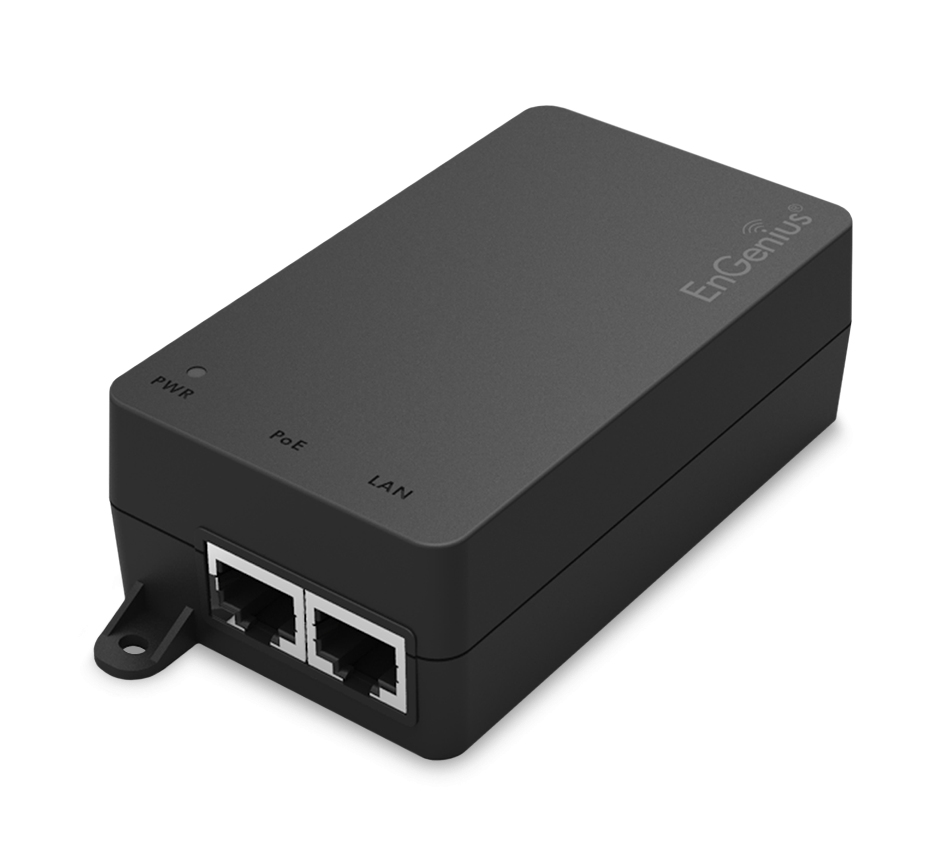

PoE adapter 1 port GbE 110~240VAC-in proprietary
54V/0.6A-out (Pin4-5:54V/pin7-8:return)
Model EPA5006GPEAN 655216007888
35 specifications
- Weight149.6 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 149.6 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- EnGenius
- Category
- PoE Adapter
- Model
- EPA5006GP
- Part number
- EPA5006GP
- EAN / UPC
- 655216007888, 4713361931031, 6552160078886
- Also known as
- EnGenius PoE adapter 1 port GbE 110~240VAC-in proprietary 54V/0.6A-out (Pin4-5:54V/pin7-8:return)
Specifications
35 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
| Power protection features | Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Output power | 32.8 W |
| AC adapter input voltage | 100-240 V |
| AC adapter frequency | 47-63 Hz |
| Input current | 0.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 149.6 g |
| Dimensions (WxDxH) | 68.5 x 99 x 33 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package length | 13.9 cm |
| Package width | 123 mm |
| Package depth | 50 mm |
| Package height | 151 mm |
| Package weight | 274 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044095 |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 40 pc(s) |
