D-Link PoE Redundant Power Supply for 1520 Series (Non-Poe)

PoE Redundant Power Supply for 1520 Series (Non-Poe)

Model DPS-520EAN 790069455483

27 specifications

Weight1.15 kg
ColourBlack
Ethernet interface typeFast Ethernet, Gigabit Ethernet
RJ-45 output ports4
AC adapter input voltage90 - 264 V
Operating temperature (T-T)0 - 50 °C

See all specifications

Overview

Weight: 1.15 kg
Colour: Black
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
RJ-45 output ports: 4
AC adapter input voltage: 90 - 264 V
Operating temperature (T-T): 0 - 50 °C

Brand: D-Link
Category: PoE Adapter
Model: DPS-520
Part number: DPS-520
EAN / UPC: 790069455483
Also known as: D-Link PoE Redundant Power Supply for 1520 Series (Non-Poe)

Specifications

27 specifications in 7 groups

Network

Specification	Value
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes

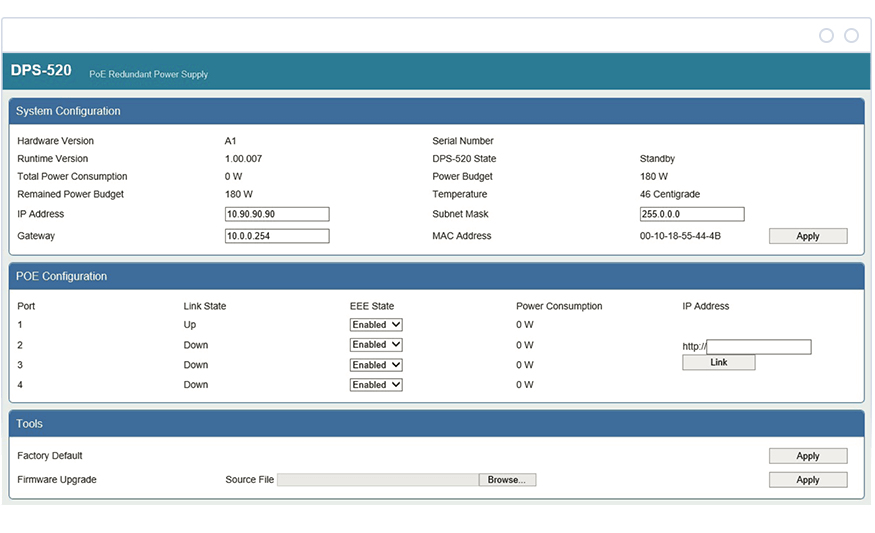

Web-based management	Yes

Features

Specification	Value
Product colour	Black
Easy to install	Yes

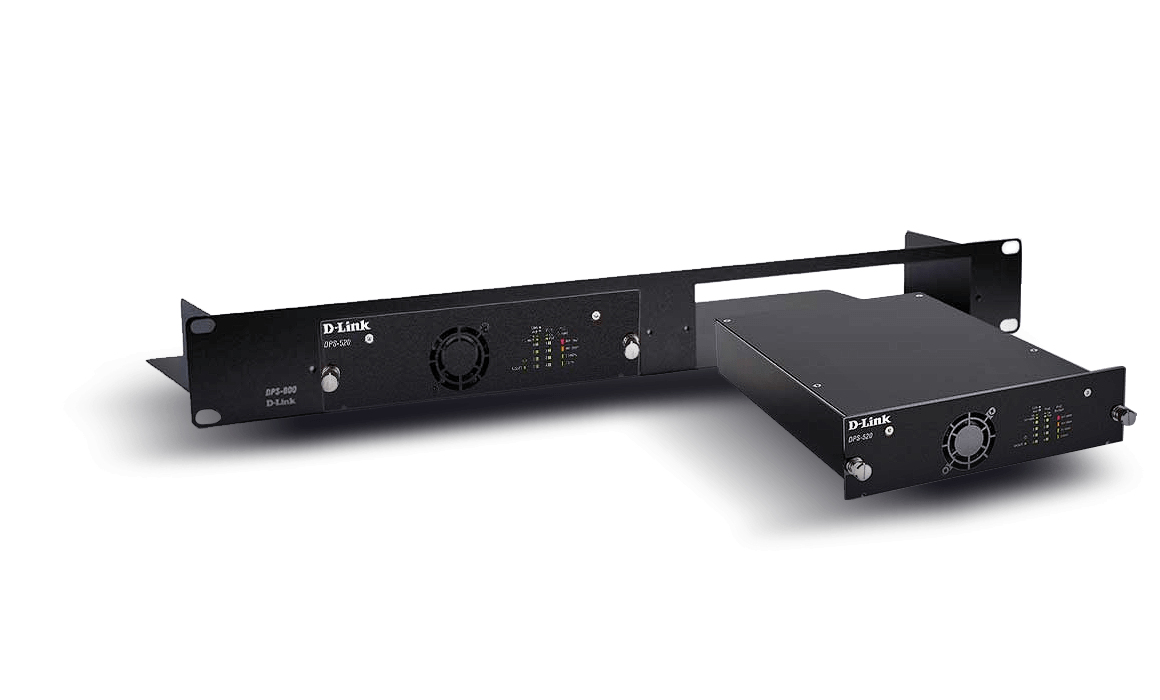

Rack mounting	Yes
Maximum operating distance	100 m
LED indicators	Yes
Number of fans	1 fan(s)
Power protection features	Over current

Ports & interfaces

Specification	Value

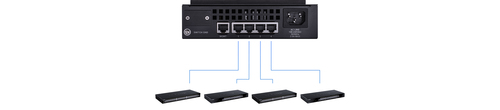

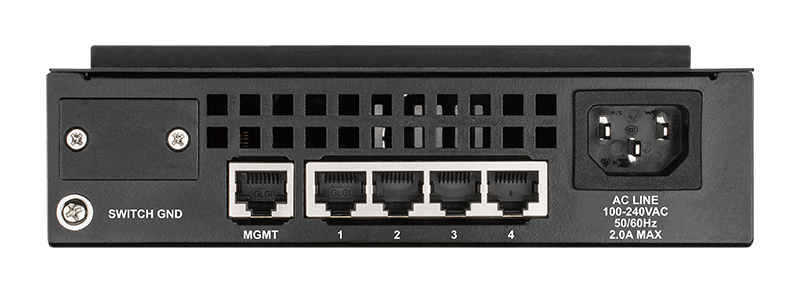

RJ-45 output ports	4
Remote management port	RJ-45 (Gigabit)

Power

Specification	Value
AC adapter input voltage	90 - 264 V
AC adapter frequency	47 - 63 Hz
Input current	2 A
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	180 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	196 mm
Depth	257 mm
Height	52 mm
Weight	1.15 kg

Logistics data

Specification	Value
Harmonized System (HS) code	85044095
