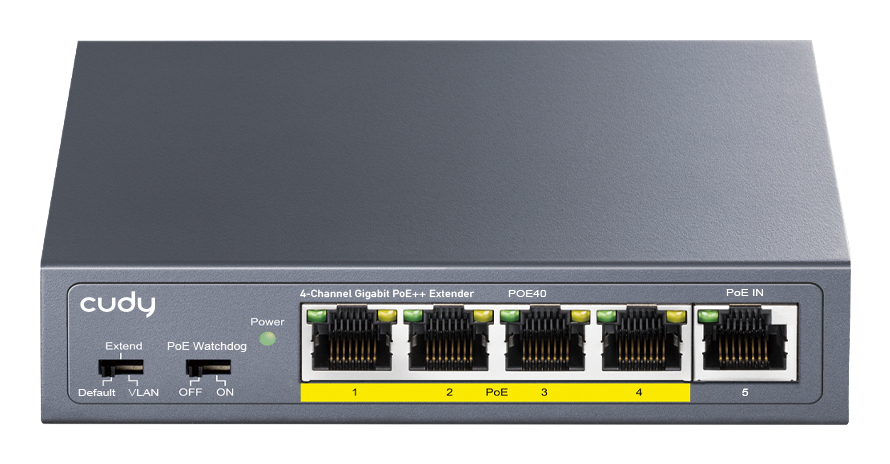

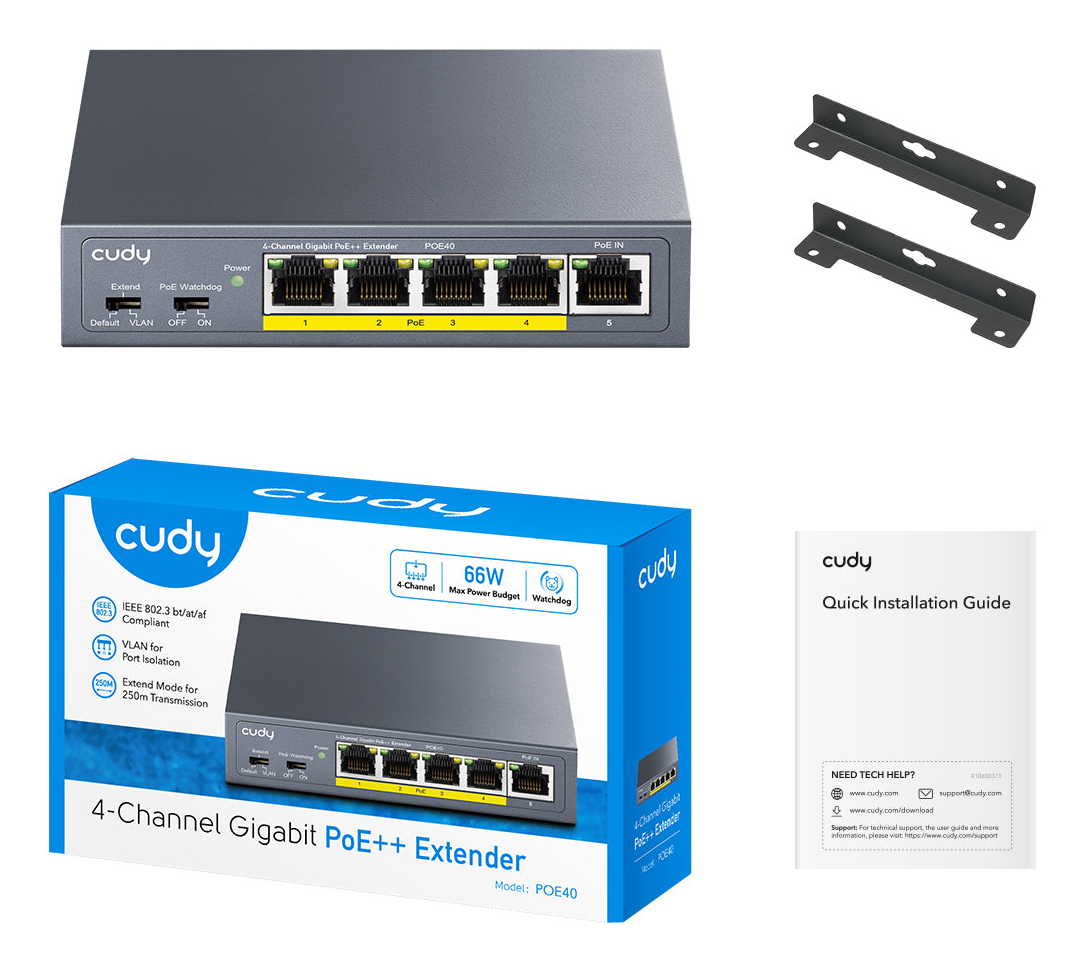

Cudy POE40 PoE adapter Gigabit Ethernet

POE40 PoE adapter Gigabit Ethernet

Model POE40EAN 6971690791513

30 specifications

Weight254.5 g
ColourBlack
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports5
Output power60 W
Operating temperature (T-T)0 - 45 °C

See all specifications

Overview

Weight: 254.5 g
Colour: Black
Ethernet interface type: Gigabit Ethernet
Ethernet LAN (RJ-45) ports: 5
Output power: 60 W
Operating temperature (T-T): 0 - 45 °C

Brand: Cudy
Category: PoE Adapter
Model: POE40
Part number: POE40
EAN / UPC: 6971690791513
Also known as: Cudy POE40 PoE adapter Gigabit Ethernet

Specifications

30 specifications in 6 groups

Network

Specification	Value
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Duplex system	Full, Half
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Features

Specification	Value
Product colour	Black
Housing material	Metal
Wall mountable	Yes
Easy to install	Yes
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Activity, Link, Power
Pin assignment & polarity	1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
RJ-45 input ports	1
RJ-45 output ports	4

Power

Specification	Value
Output power	60 W
Power consumption (max)	2 W
Power over Ethernet (PoE) power per port	30 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Operating temperature (T-T)	32 - 113 °F
Operating relative humidity (H-H)	10 - 95%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	119 mm
Depth	85 mm
Height	28 mm
Weight	254.5 g
