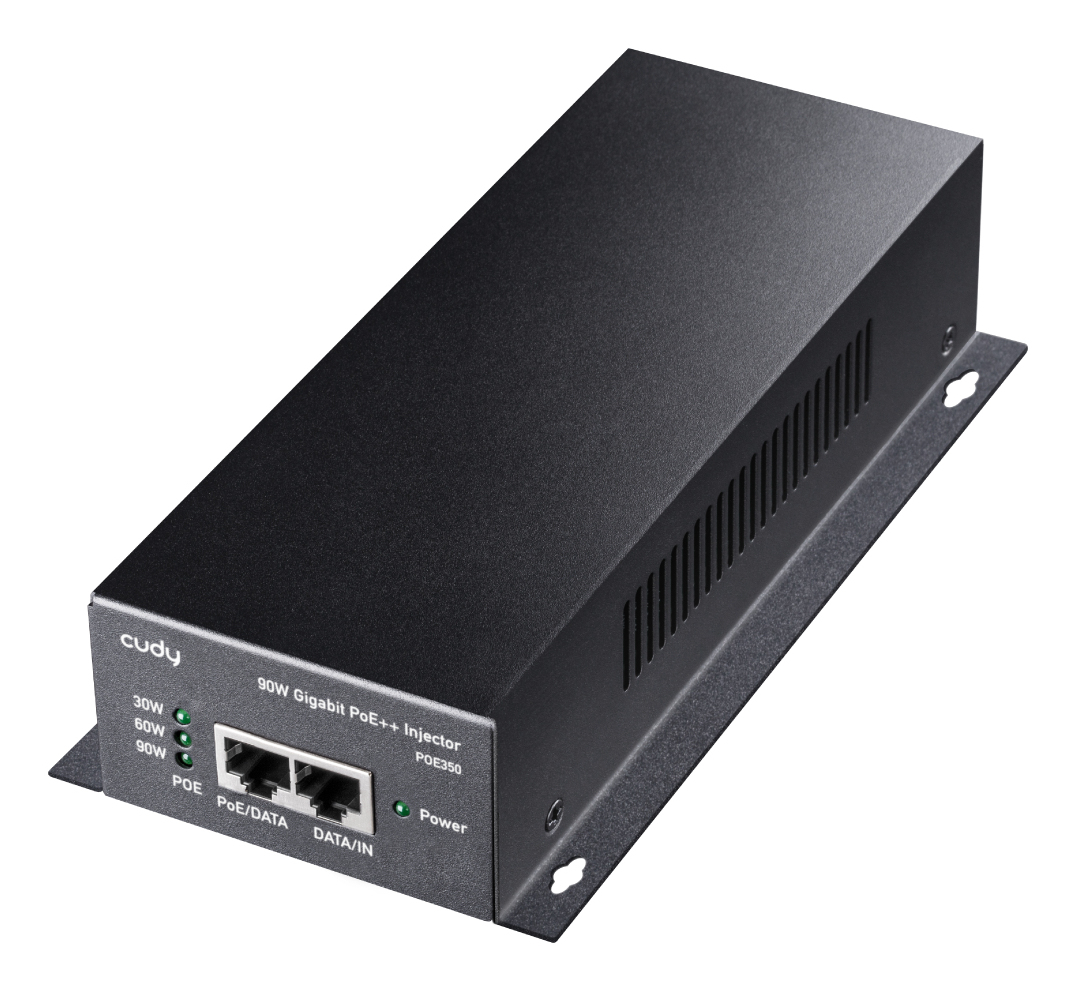

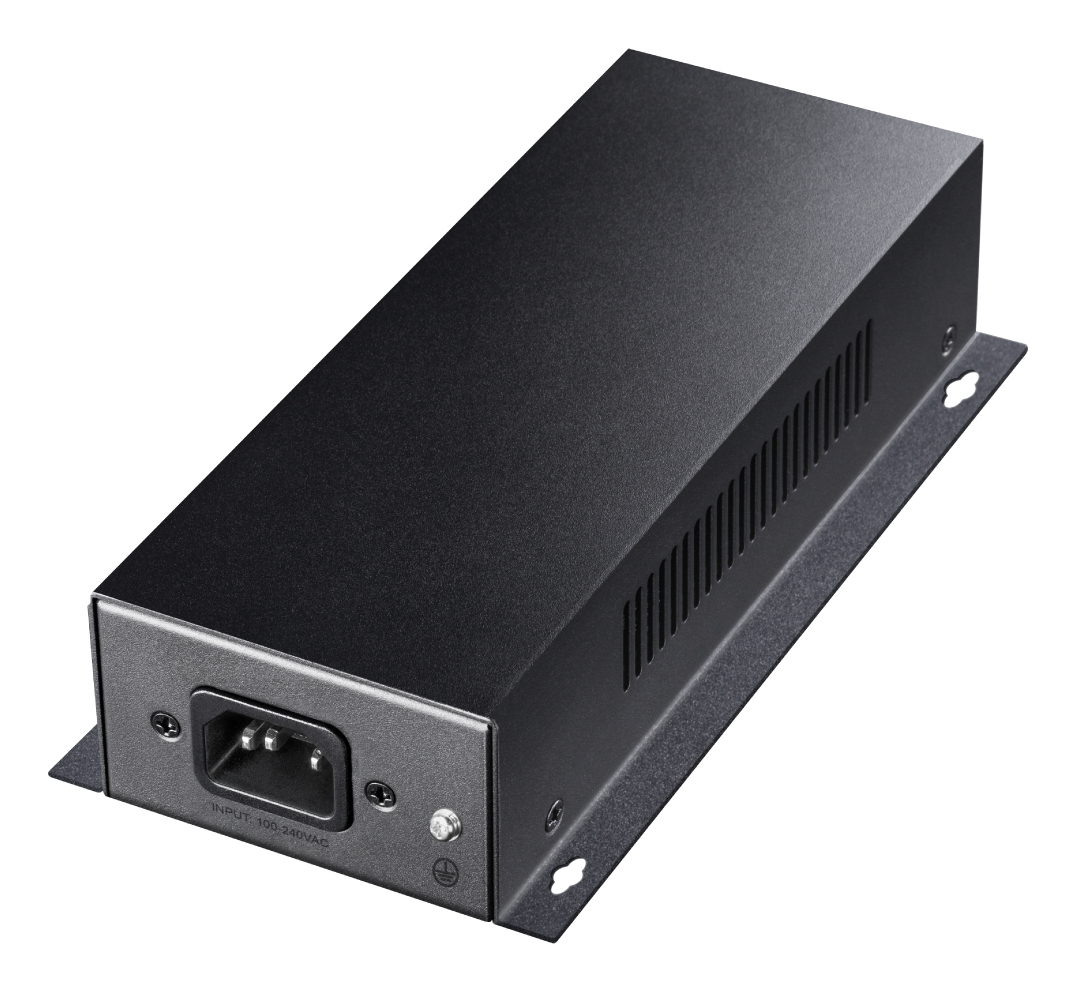

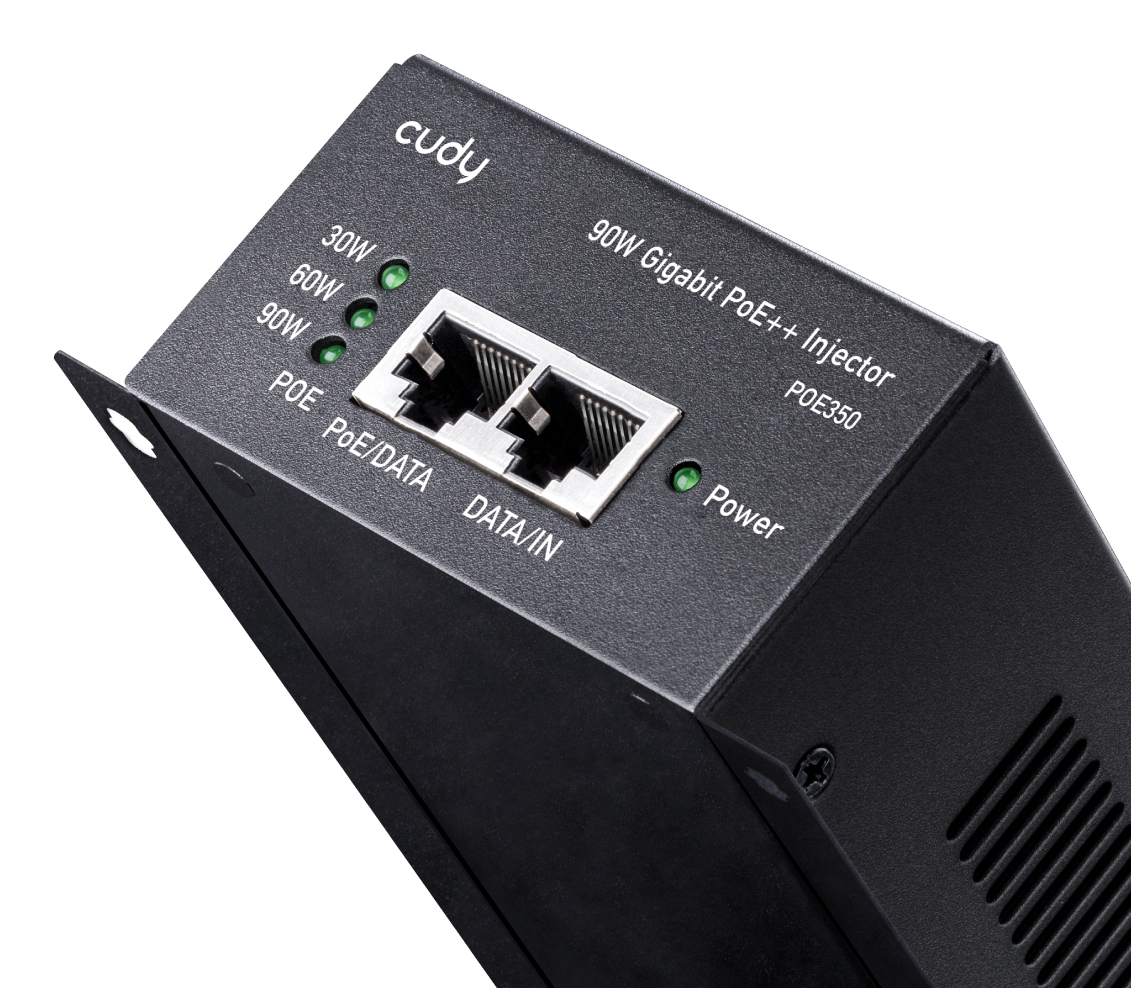

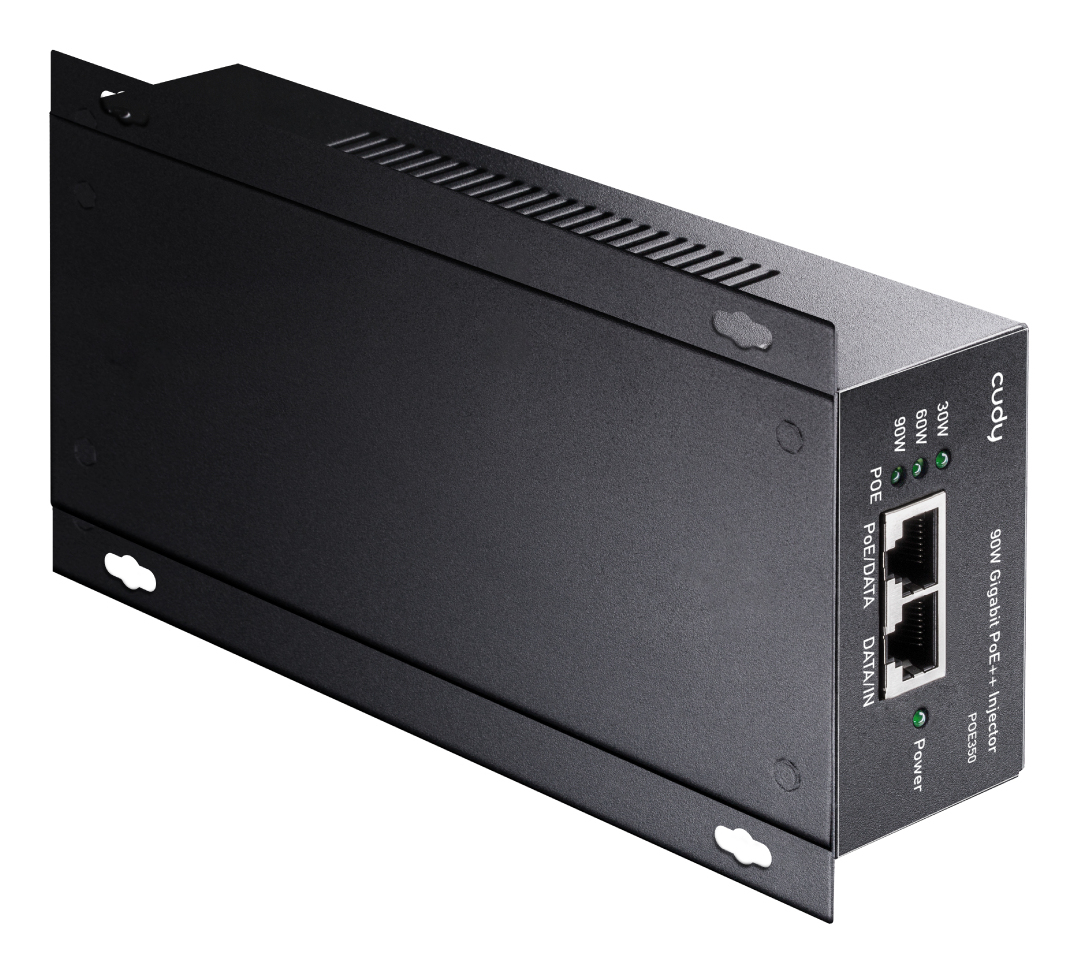

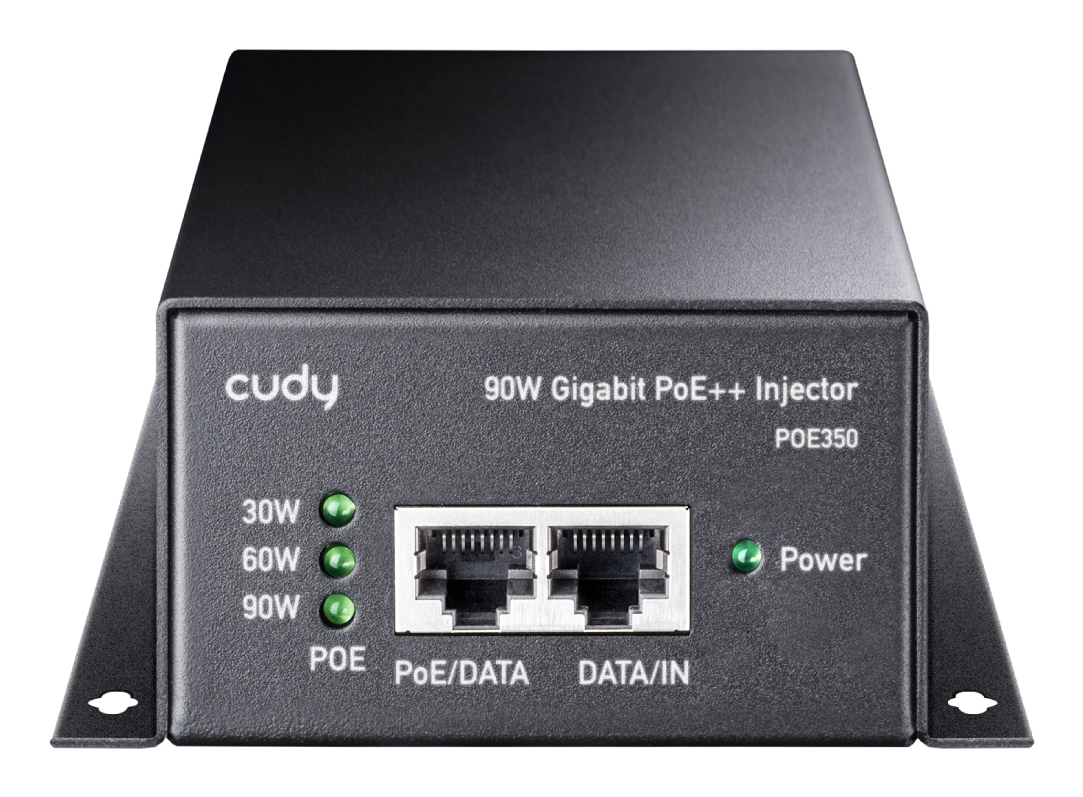

POE350 PoE adapter Gigabit Ethernet
52 V
Model POE350EAN 6971690791438
34 specifications
- Weight688 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage52 V
- Operating temperature (T-T)-10 - 45 °C
Overview
- Weight
- 688 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 52 V
- Operating temperature (T-T)
- -10 - 45 °C
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- POE350
- Part number
- POE350
- EAN / UPC
- 6971690791438
- Also known as
- Cudy POE350 PoE adapter Gigabit Ethernet 52 V
Specifications
34 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5e |
| Networking standards | IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Surge protection | Yes |
| LED indicators | Power |
| Pin assignment & polarity | 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-) |
| Power protection features | Over current, Over power, Over voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 52 V |
| Output power | 90 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| DC output voltage | 56 V |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating temperature (T-T) | 14 - 113 °F |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178.5 mm |
| Depth | 80 mm |
| Height | 46 mm |
| Weight | 688 g |

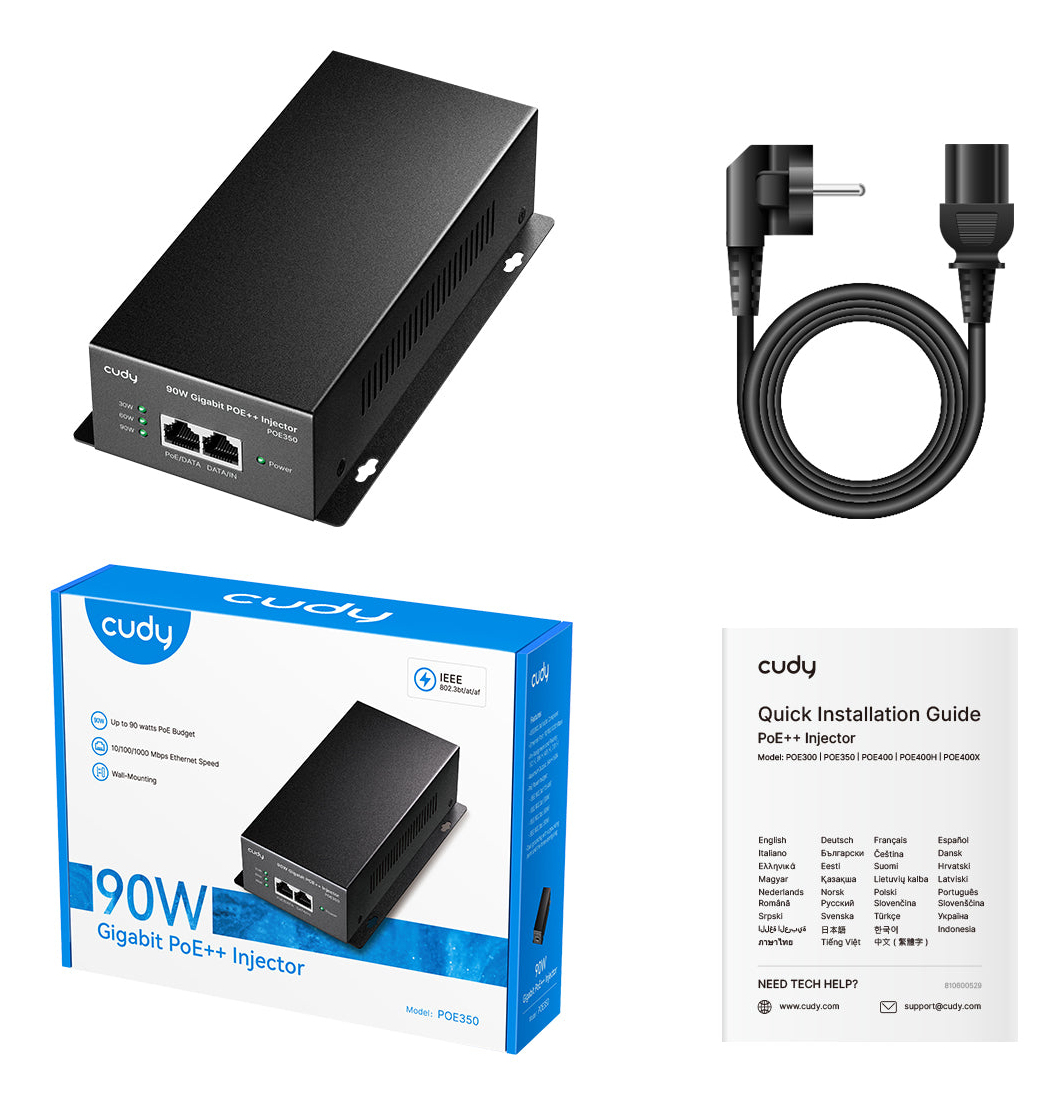

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
