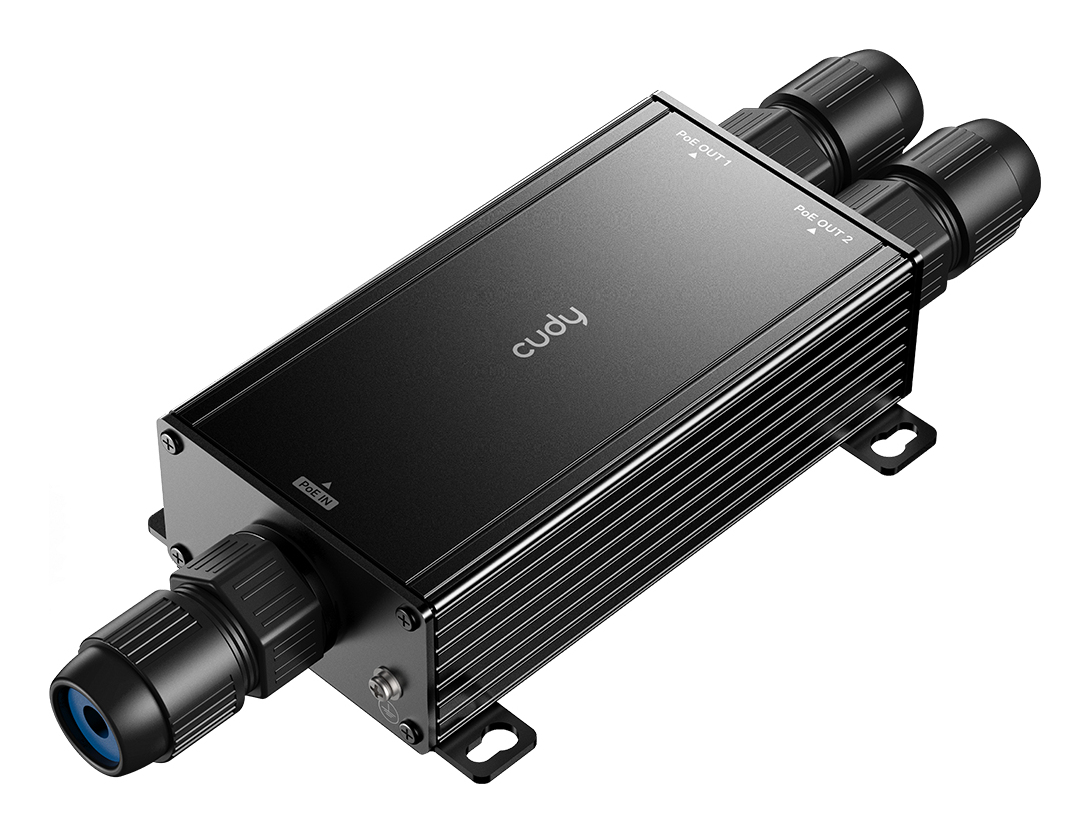

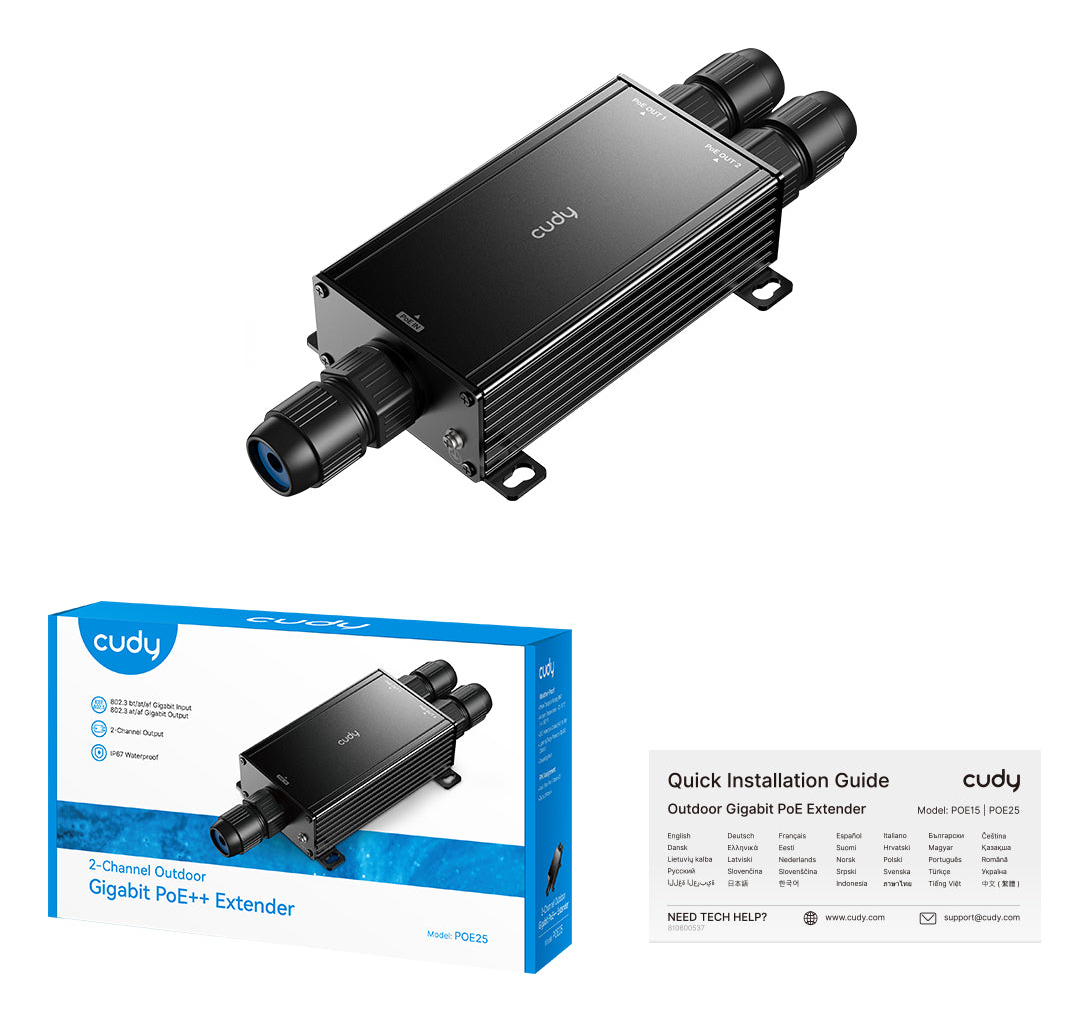

POE25 PoE adapter Gigabit Ethernet
100 V
Model POE25EAN 6971690791506
32 specifications
- Weight305 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports3
- Power over Ethernet (PoE) voltage100 V
- Operating temperature (T-T)-25 - 55 °C
Overview
- Weight
- 305 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 3
- Power over Ethernet (PoE) voltage
- 100 V
- Operating temperature (T-T)
- -25 - 55 °C
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- POE25
- Part number
- POE25
- EAN / UPC
- 6971690791506
- Also known as
- Cudy POE25 PoE adapter Gigabit Ethernet 100 V
Specifications
32 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Pin assignment & polarity | 1/2(-),3/6(+) and 4/5(+),7/8(-) / 1/2(+),3/6(-) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 100 V |
| Output power | 60 W |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | -13 - 131 °F |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 90 mm |
| Height | 40 mm |
| Weight | 305 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 215 mm |
| Package depth | 92 mm |
| Package height | 44 mm |
| Package weight | 386 g |
| Package type | Box |
