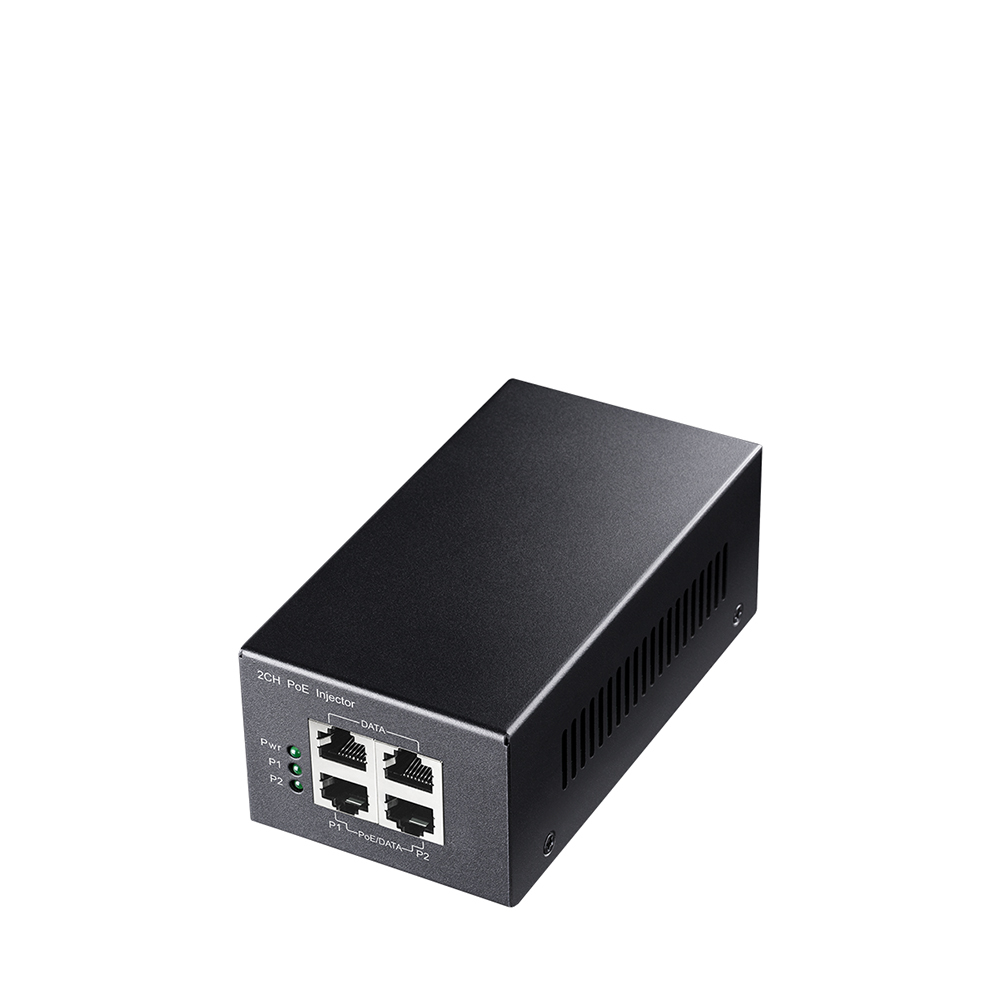

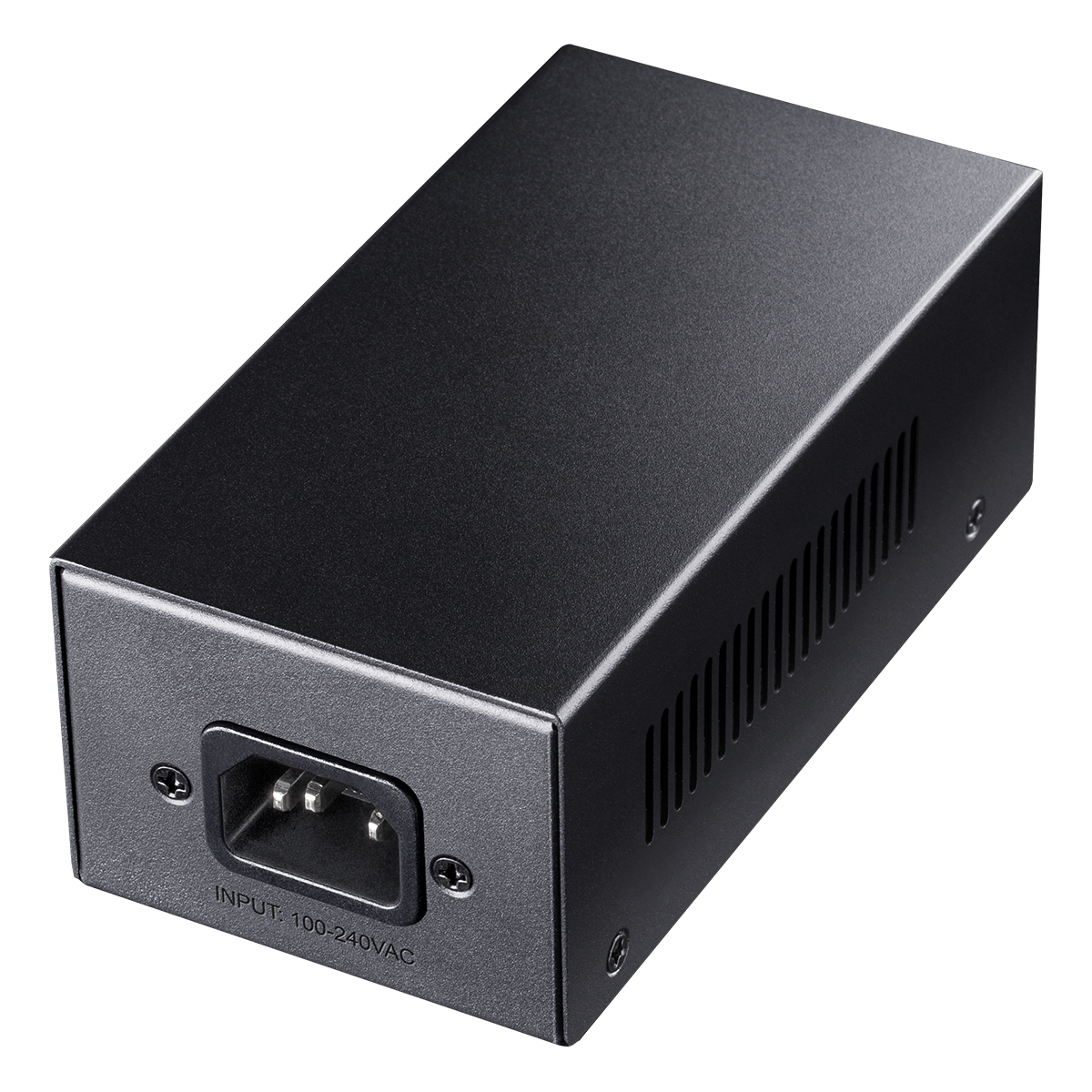

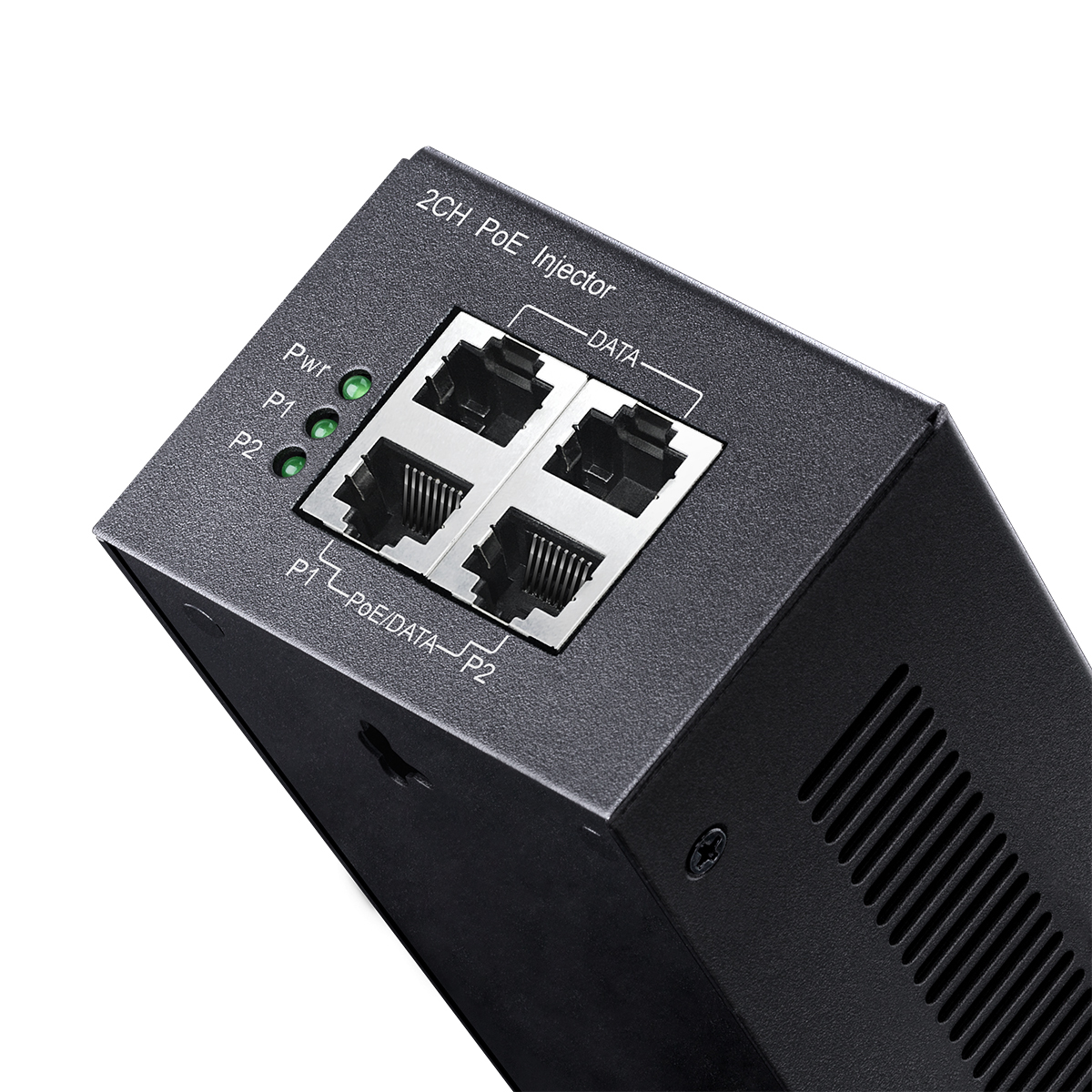

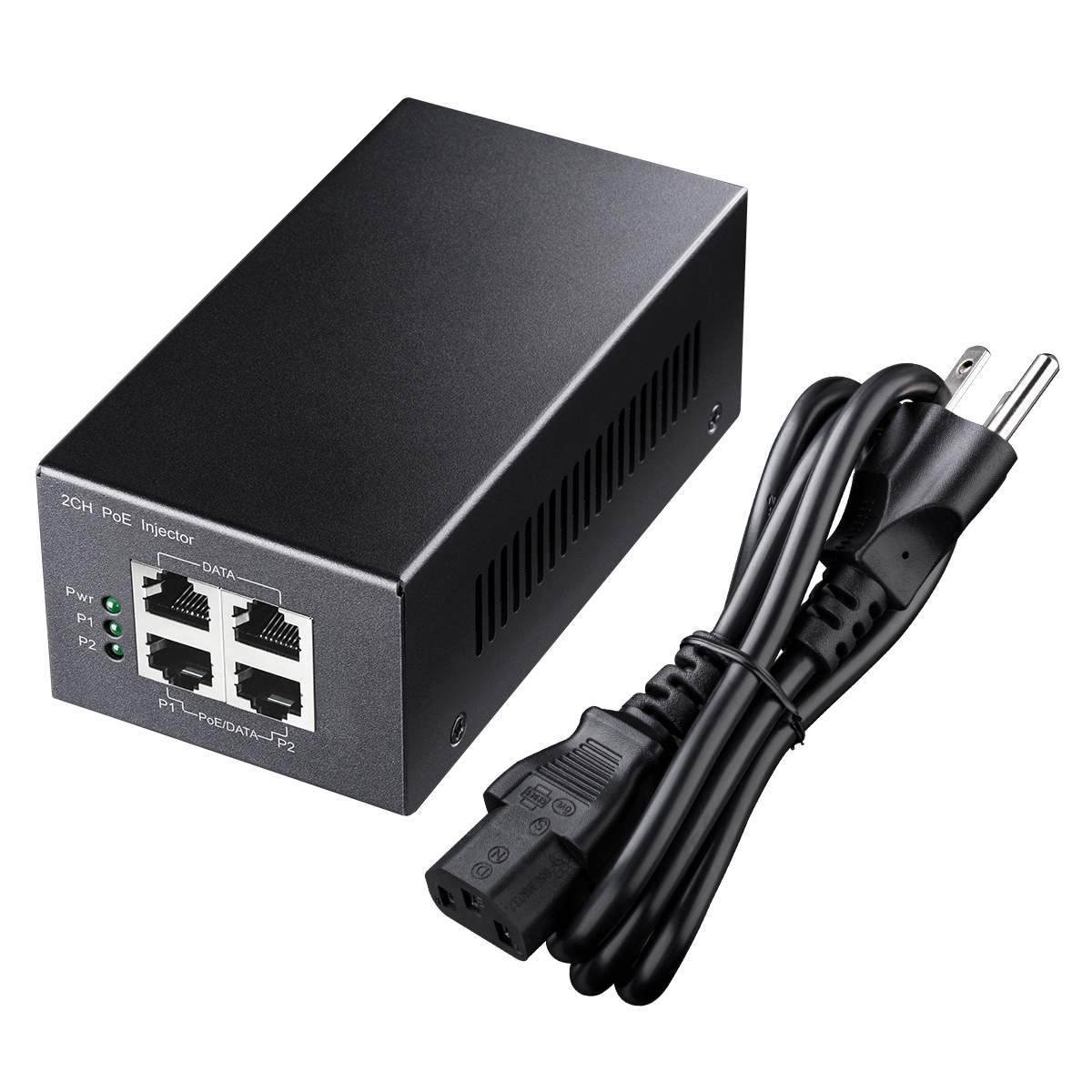

POE220 PoE adapter Gigabit Ethernet
54 V
Model POE220EAN 6971690791568
32 specifications
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports4
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)-40 - 40 °C
- Width131 mm
Overview
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- -40 - 40 °C
- Width
- 131 mm
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- POE220
- Part number
- POE220
- EAN / UPC
- 6971690791568
- Also known as
- Cudy POE220 PoE adapter Gigabit Ethernet 54 V
Specifications
32 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Pin assignment & polarity | 1/2 (-), 3/6 (+) |
| Power protection features | Over current, Over voltage, Overload |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 70 mm |
| Height | 40 mm |

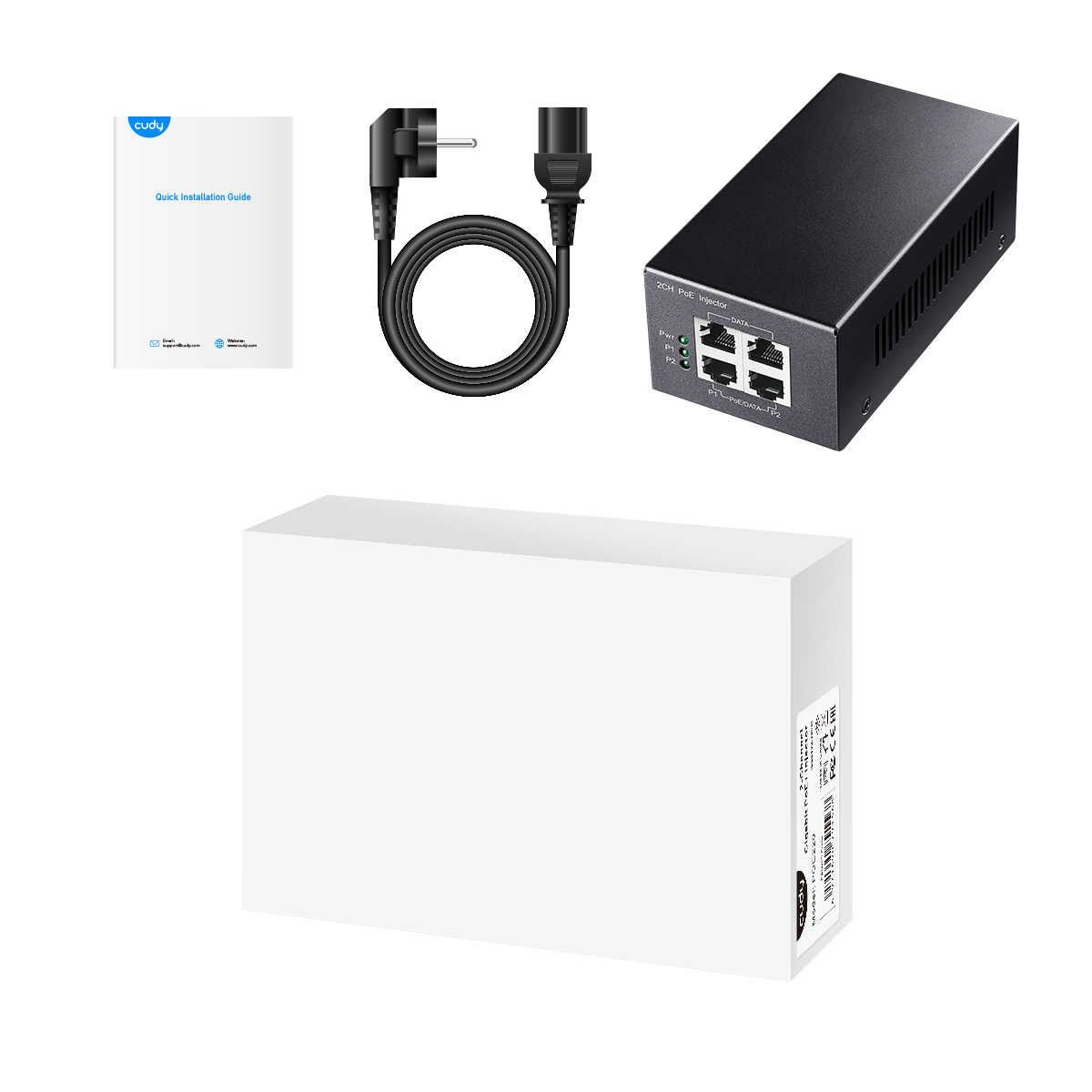

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
