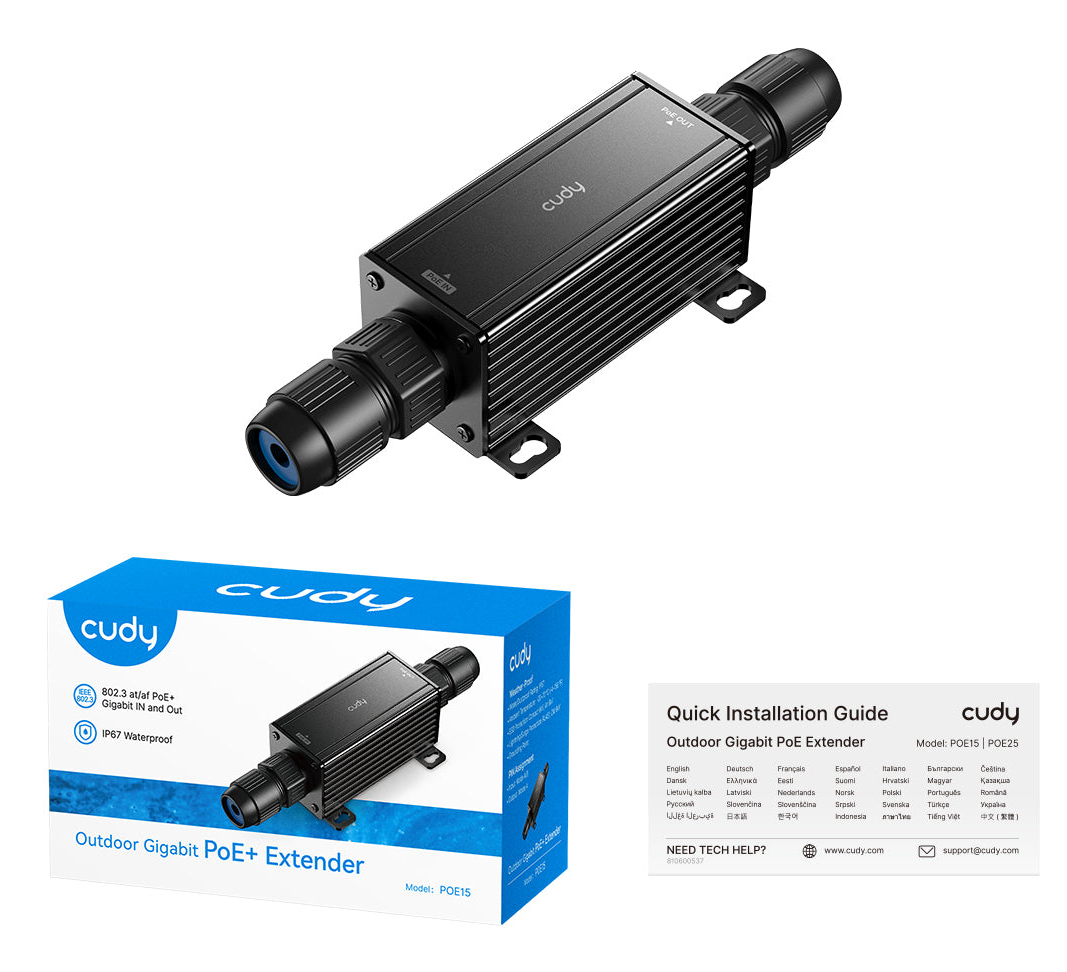

POE15 PoE adapter Gigabit Ethernet
Model POE15EAN 6971690791339
34 specifications
- Weight250 g
- ColourBlack
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports2
- Output power30 W
- Operating temperature (T-T)-22 - 55 °C
Overview
- Weight
- 250 g
- Colour
- Black
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Output power
- 30 W
- Operating temperature (T-T)
- -22 - 55 °C
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- POE15
- Part number
- POE15
- EAN / UPC
- 6971690791339
- Also known as
- Cudy POE15 PoE adapter Gigabit Ethernet
Specifications
34 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Duplex system | Full, Half |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3x |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Activity, Link, PoE |
| International Protection (IP) code | IP67 |
| Pin assignment & polarity | 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Output power | 30 W |
| Power consumption (max) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -22 - 55 °C |
| Operating temperature (T-T) | -13 - 131 °F |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 45 mm |
| Height | 45 mm |
| Weight | 250 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 152 mm |
| Package depth | 76 mm |
| Package height | 54 mm |
| Package weight | 307 g |
| Package type | Box |
