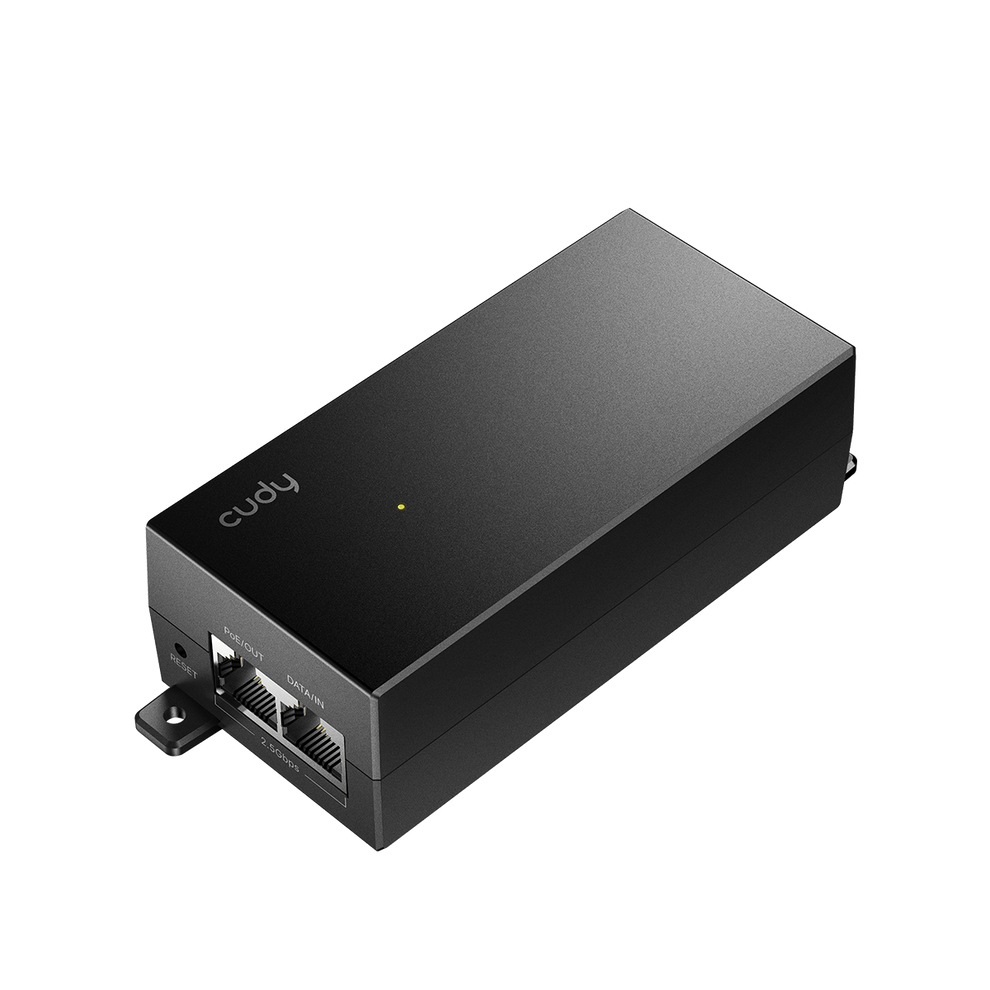

30W 2.5 Gbps PoE+ Injector, POE200H 1.0
Model 30W 2.5 Gbps PoE+ Injector, POE200H 1.0Part no. POE200H 1.0EAN 6971690794798
36 specifications
- Weight150 g
- ColourBlack
- Ethernet LAN data rates2500 Mbit/s
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage54 V
- Operating temperature (T-T)-10 - 40 °C
Overview
- Weight
- 150 g
- Colour
- Black
- Ethernet LAN data rates
- 2500 Mbit/s
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 54 V
- Operating temperature (T-T)
- -10 - 40 °C
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- 30W 2.5 Gbps PoE+ Injector, POE200H 1.0
- Part number
- POE200H 1.0
- EAN / UPC
- 6971690794798
- Also known as
- Cudy 30W 2.5 Gbps PoE+ Injector, POE200H 1.0 2.5 Gigabit Ethernet, Gigabit Ethernet 54 V
Specifications
36 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 2500 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) modes | Alternative A |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3at |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| Power protection features | Discharge overcurrent, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 54 V |
| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.8 A |
| Output current | 0.56 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 51 mm |
| Height | 35 mm |
| Weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 193 mm |
| Package depth | 135 mm |
| Package height | 55 mm |
| Package weight | 346 g |
