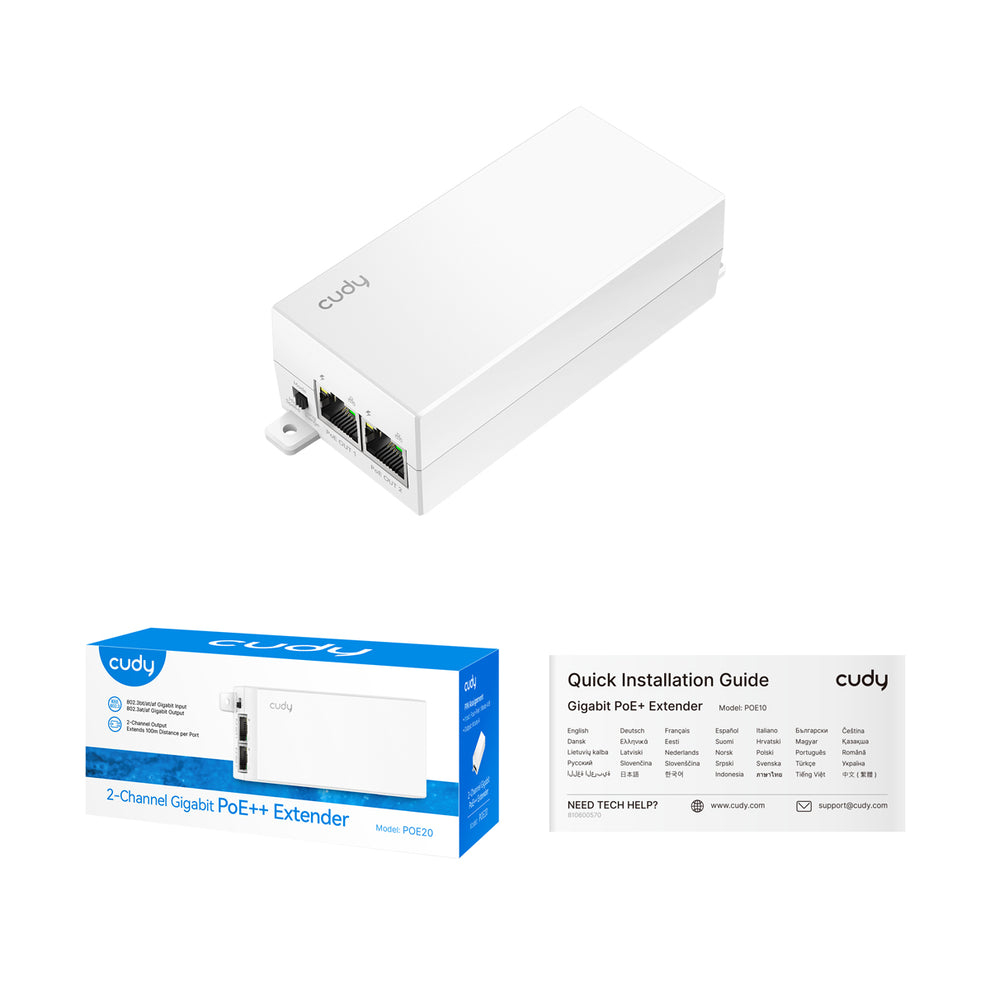

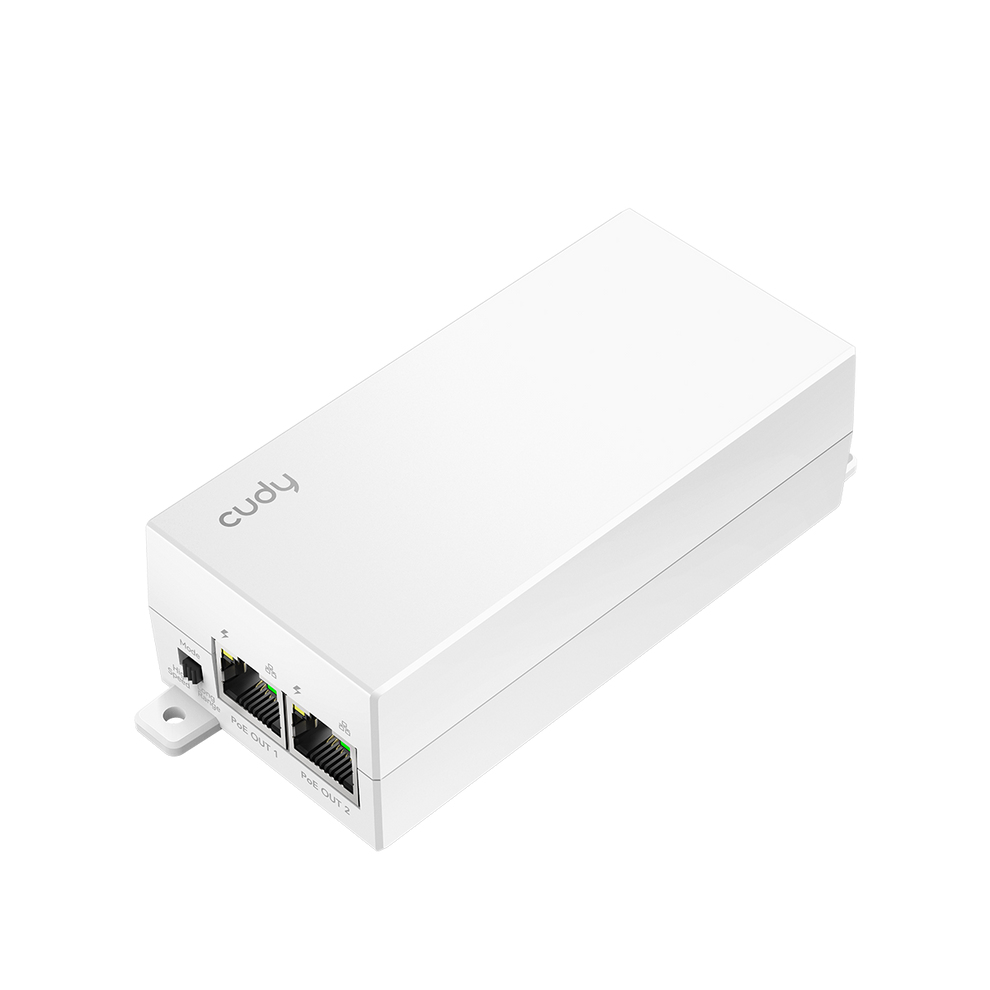

2-Channel Gigabit PoE++ Extender, POE20 1.0
Model 2-Channel Gigabit PoE++ Extender, POE20 1.0Part no. POE20 1.0EAN 6971690795276
31 specifications
- Weight89.6 g
- ColourWhite
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports3
- Output power60 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 89.6 g
- Colour
- White
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 3
- Output power
- 60 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- 2-Channel Gigabit PoE++ Extender, POE20 1.0
- Part number
- POE20 1.0
- EAN / UPC
- 6971690795276
- Also known as
- Cudy 2-Channel Gigabit PoE++ Extender, POE20 1.0 Gigabit Ethernet
Specifications
31 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) modes | Alternative A, 4PPoE, Alternative B |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 250 m |
| LED indicators | Yes |
| Power protection features | Discharge overcurrent, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|

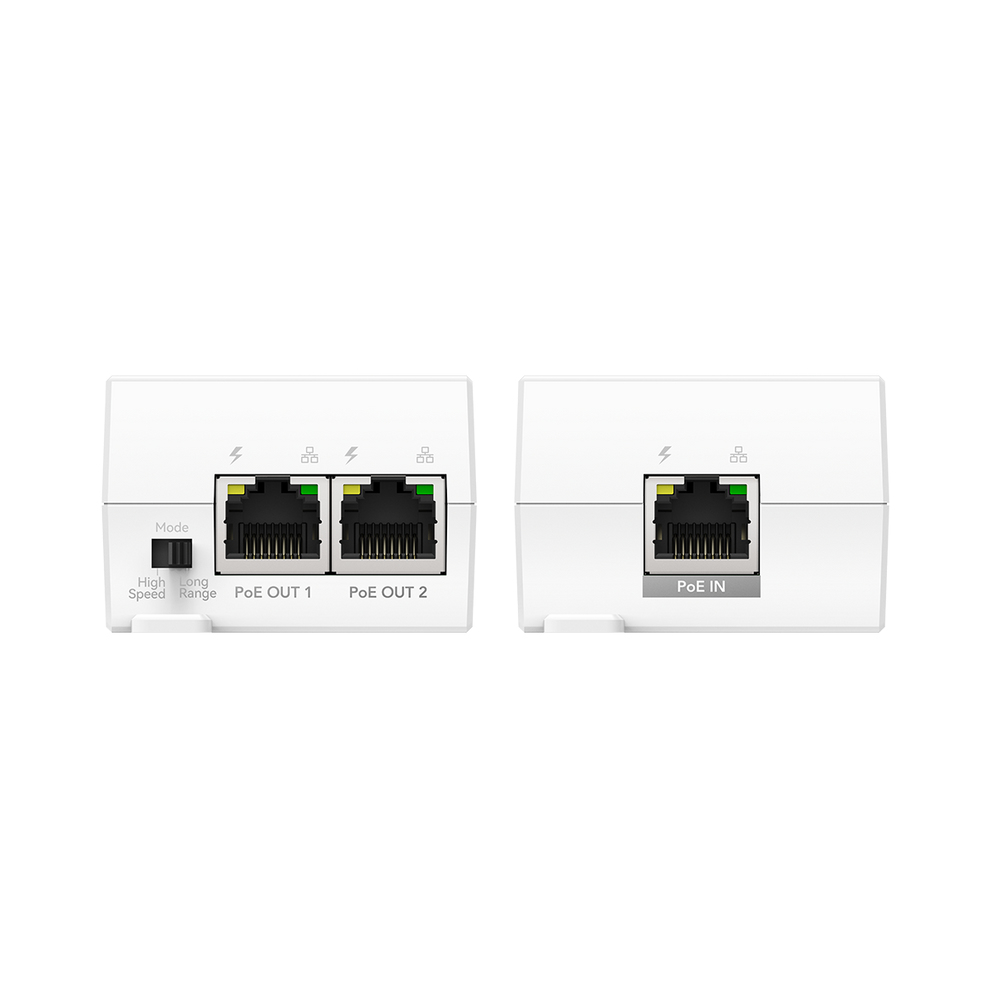

| Ethernet LAN (RJ-45) ports | 3 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
Power
| Specification | Value |
|---|---|
| Output power | 60 W |
| Power consumption (max) | 2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 50 mm |
| Height | 36 mm |
| Weight | 89.6 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 128 mm |
| Package depth | 56 mm |
| Package height | 45 mm |
| Package weight | 124 g |
