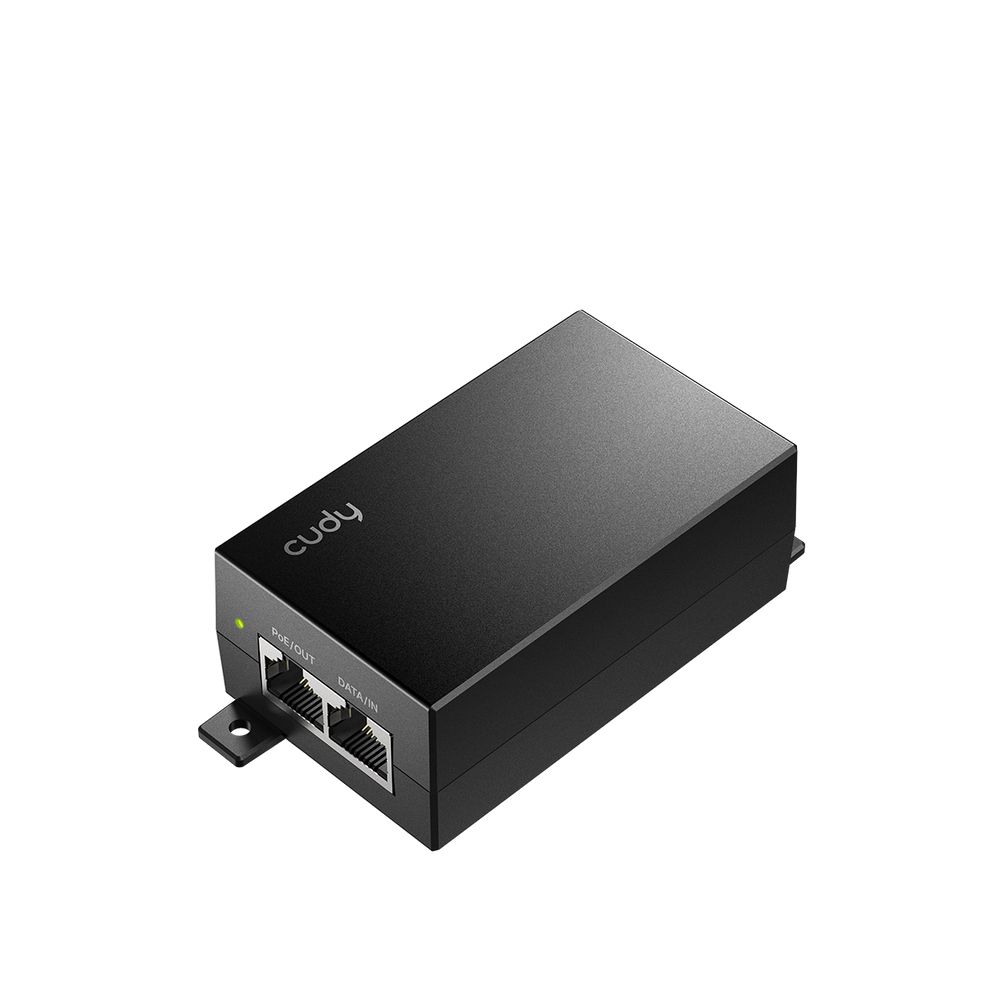

10/100M 24V 12W Passive PoE Adapter, POE24-12W 1.0
Model 10/100M 24V 12W Passive PoE Adapter, POE24-12W 1.0Part no. POE24-12W 1.0EAN 6971690795191
35 specifications
- ColourBlack
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE) voltage24 V
- Operating temperature (T-T)0 - 40 °C
- Width80.1 mm
Overview
- Colour
- Black
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE) voltage
- 24 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 80.1 mm
- Brand
- Cudy
- Category
- PoE Adapter
- Model
- 10/100M 24V 12W Passive PoE Adapter, POE24-12W 1.0
- Part number
- POE24-12W 1.0
- EAN / UPC
- 6971690795191
- Also known as
- Cudy 10/100M 24V 12W Passive PoE Adapter, POE24-12W 1.0 Fast Ethernet
Specifications
35 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) modes | Alternative B |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes, Power |
| Power protection features | Discharge overcurrent, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) voltage | 24 V |
| Output power | 12 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.4 A |
| Output current | 0.5 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.1 mm |
| Depth | 48.9 mm |
| Height | 31.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 175 mm |
| Package depth | 63 mm |
| Package height | 57 mm |
