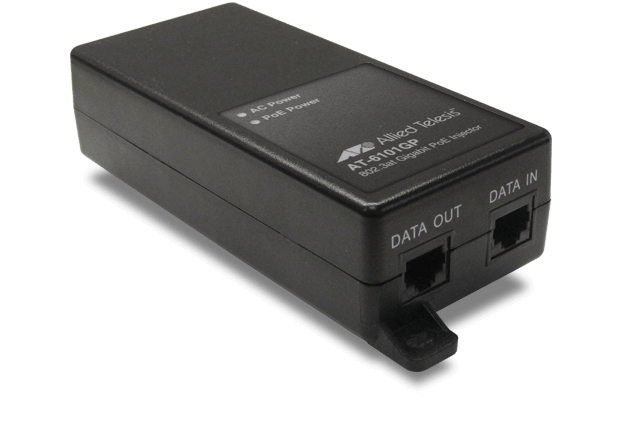

Allied Telesis AT-6101GP-30 PoE adapter Gigabit Ethernet

AT-6101GP-30 PoE adapter Gigabit Ethernet

Model AT-6101GP-30

23 specifications

Weight300 g
ColourBlack
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Input voltage100 - 240 V
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Weight: 300 g
Colour: Black
Ethernet interface type: Gigabit Ethernet
Ethernet LAN (RJ-45) ports: 1
Input voltage: 100 - 240 V
Operating temperature (T-T): 0 - 40 °C

Brand: Allied Telesis
Category: PoE Adapter
Model: AT-6101GP-30
Part number: AT-6101GP-30
Also known as: Allied Telesis AT-6101GP-30 PoE adapter Gigabit Ethernet

Specifications

23 specifications in 8 groups

Network

Specification	Value
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Features

Specification	Value
Product colour	Black
Plug and Play	Yes
LED indicators	Yes
Safety	EN 60950-1:2006+A11:2009+A1:2010+A12:2011, EN 60825-1:2007
Power protection features	Overload, Short circuit

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Power

Specification	Value
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.72 A
Power consumption (max)	36 W

Certificates

Specification	Value
Certification	CE, EAC, FCC, RCM, UL, cUL, TUV-T, China RoHS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 80 °C
Storage relative humidity (H-H)	0 - 90%

Weight & dimensions

Specification	Value
Weight	300 g
Dimensions (WxDxH)	65 x 36 x 140 mm

Packaging content

Specification	Value
Number of products included	1 pc(s)
