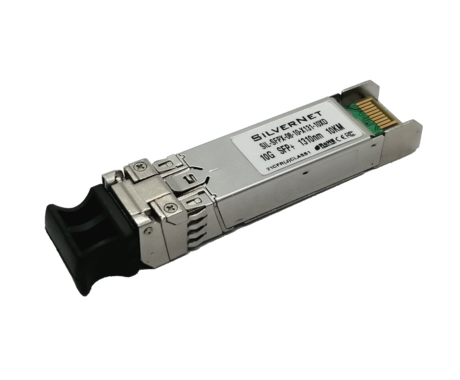

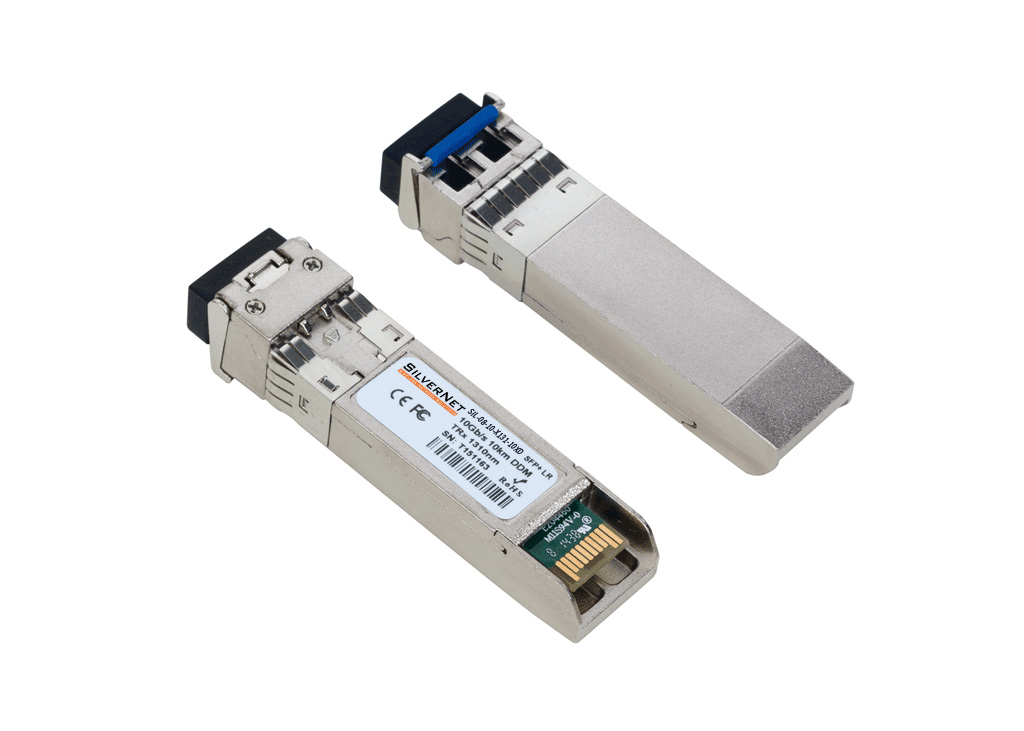

SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Model SIL-08-10-X131-10XDEAN 5060693980725
33 specifications
- Speed10000 Mbit/s
- Weight15 g
- ColourNickel
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 10000 Mbit/s
- Weight
- 15 g
- Colour
- Nickel
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- SilverNet
- Category
- Network Transceiver Module
- Model
- SIL-08-10-X131-10XD
- Part number
- SIL-08-10-X131-10XD
- EAN / UPC
- 5060693980725
- Also known as
- SilverNet SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Specifications
33 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Nickel |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE IEC60825-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 10 mm |
| Depth | 15 mm |
| Height | 60 mm |
| Weight | 15 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 50 mm |
| Package depth | 100 mm |
| Package height | 20 mm |
| Package weight | 30 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
