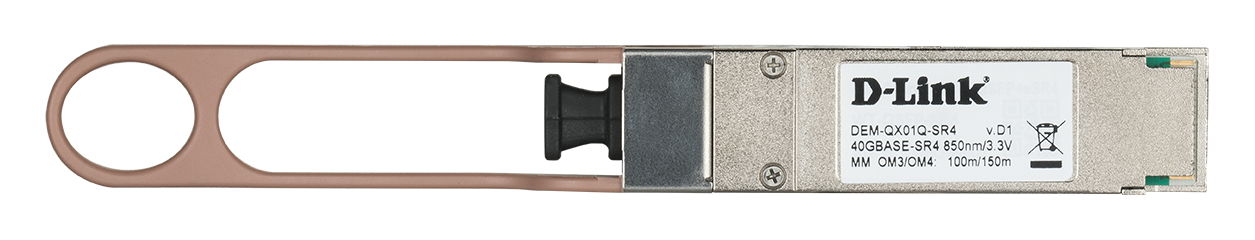

40GBase-SR4 QSFP+ Multi-mode Transceiver, 100M/ 150M
Model DEM-QX01Q-SR4EAN 790069415319
54 specifications
- Speed40000 Mbit/s
- Weight40 g
- ColourBeige, Metallic
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 40000 Mbit/s
- Weight
- 40 g
- Colour
- Beige, Metallic
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-QX01Q-SR4
- Part number
- DEM-QX01Q-SR4
- EAN / UPC
- 790069415319
- Also known as
- D-Link 40GBase-SR4 QSFP+ Multi-mode Transceiver, 100M/ 150M
Specifications
54 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Tx power (min) | -7.6 dBmW |
| Tx power (max) | 2.4 dBmW |
| Rx power (min) | -9.5 dBmW |
| Rx power (max) | 2.4 dBmW |
| Link budget | 11.9 dB |
| Ethernet interface type | 40 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Beige, Metallic |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Maximum current | 0.35 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC Class B CE Class B VCCI Class B FDA/CDRH TUV CSA MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 75 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18.4 mm |
| Depth | 115.8 mm |
| Height | 13.3 mm |
| Weight | 40 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross weight (air) | 272 kg |
| Pallet gross weight (sea) | 272 kg |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet height (sea) | 199 cm |
| Products per pallet (air) | 3000 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Products per shipping (inner) case | 50 pc(s) |
| Shipping (inner) case gross weight | 4.2 kg |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case width | 26 cm |
| Harmonized System (HS) code | 85369010 |
