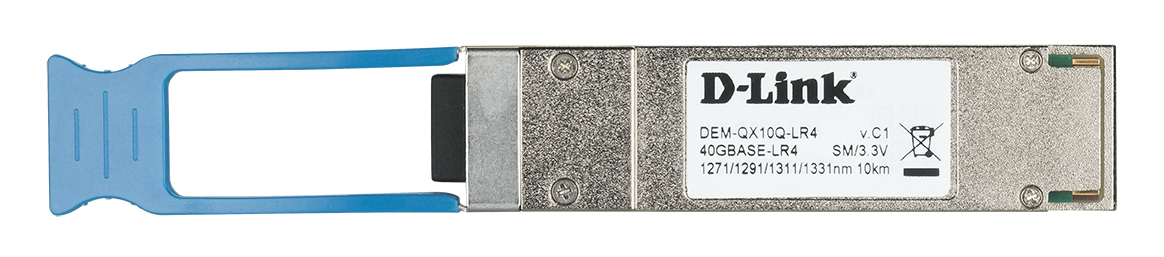

40GBase-LR4 QSFP+ Single-Mode Transceiver, 10km

Model DEM-QX10Q-LR4EAN 790069390630

56 specifications

Overview

56 specifications in 9 groups

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	40000 Mbit/s
Interface type	QSFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LR4
Maximum transfer distance	10000 m
Wavelength	1310 nm
Tx power (min)	-4 dBmW
Tx power (max)	8.3 dBmW
Rx power (min)	3.5 dBmW
Rx power (max)	-13.7 dBmW
Link budget	19.8 dB
Ethernet interface type	400 Gigabit Ethernet
Networking standards	IEEE 802.3ba
Fiber ethernet cabling technology	40GBASE
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes

Specification	Value
Product colour	Blue, Silver
Hot-Plug support	Yes

Specification	Value
Maximum voltage	3.3 V
Maximum current	1.13 A

Specification	Value
Compliance certificates	RoHS
Certification	FCC Class B CE Class B VCCI Class B FDA/CDRH TUV CSA MSA

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%

Specification	Value
Quantity per pack	1 pc(s)

Specification	Value
Master (outer) cases per pallet (air)	60 pc(s)
Master (outer) cases per pallet (sea)	60 pc(s)
Pallet gross length	102 cm
Pallet gross weight (air)	272 kg
Pallet gross weight (sea)	272 kg
Pallet gross width	122 cm
Pallet height (air)	199 cm
Pallet height (sea)	199 cm
Products per pallet (air)	3000 pc(s)
Products per pallet (sea)	3000 pc(s)
Products per shipping (inner) case	50 pc(s)
Shipping (inner) case gross weight	4.2 kg
Shipping (inner) case height	31 cm
Shipping (inner) case length	36 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case width	26 cm
Harmonized System (HS) code	85369010
