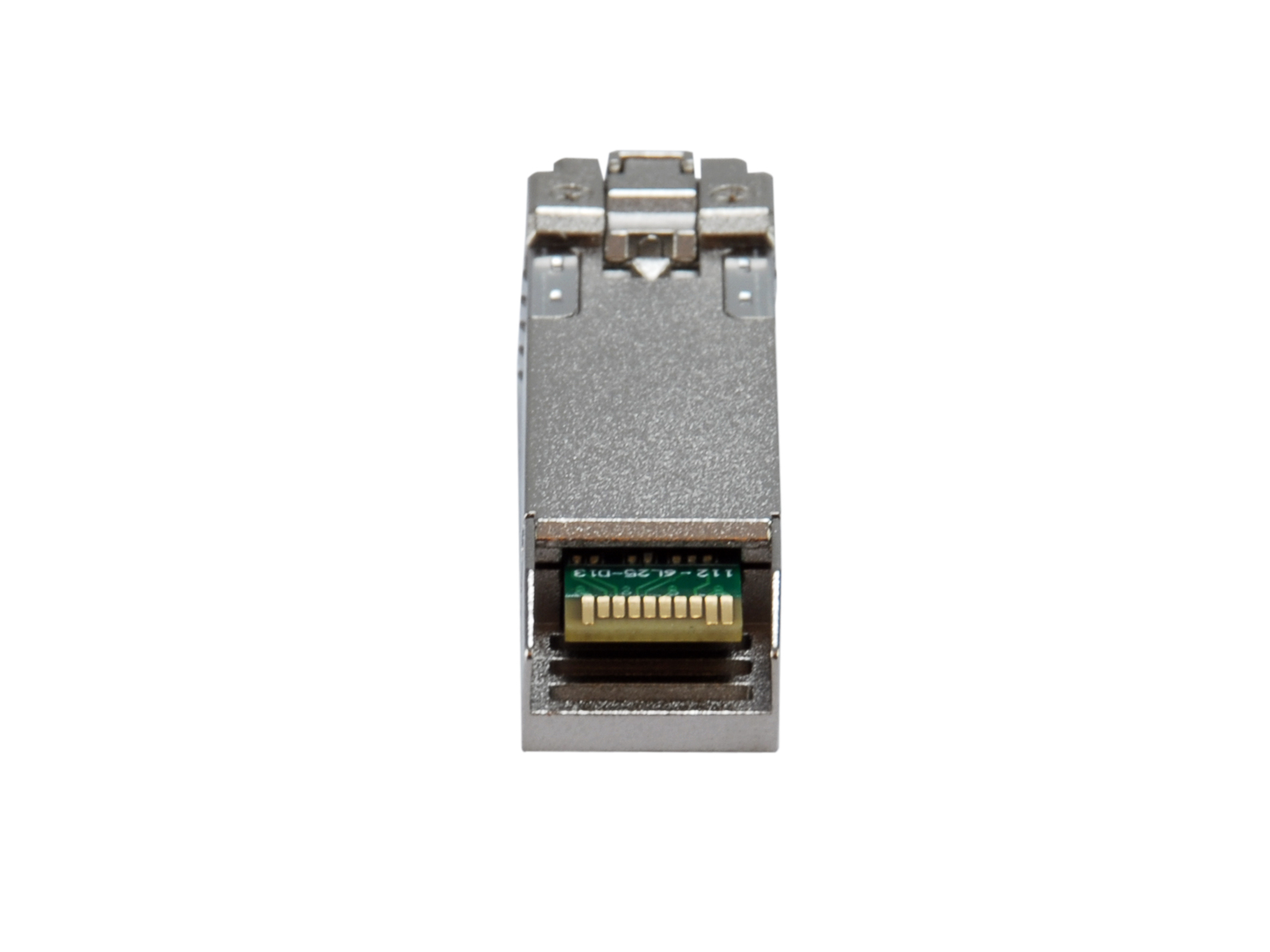

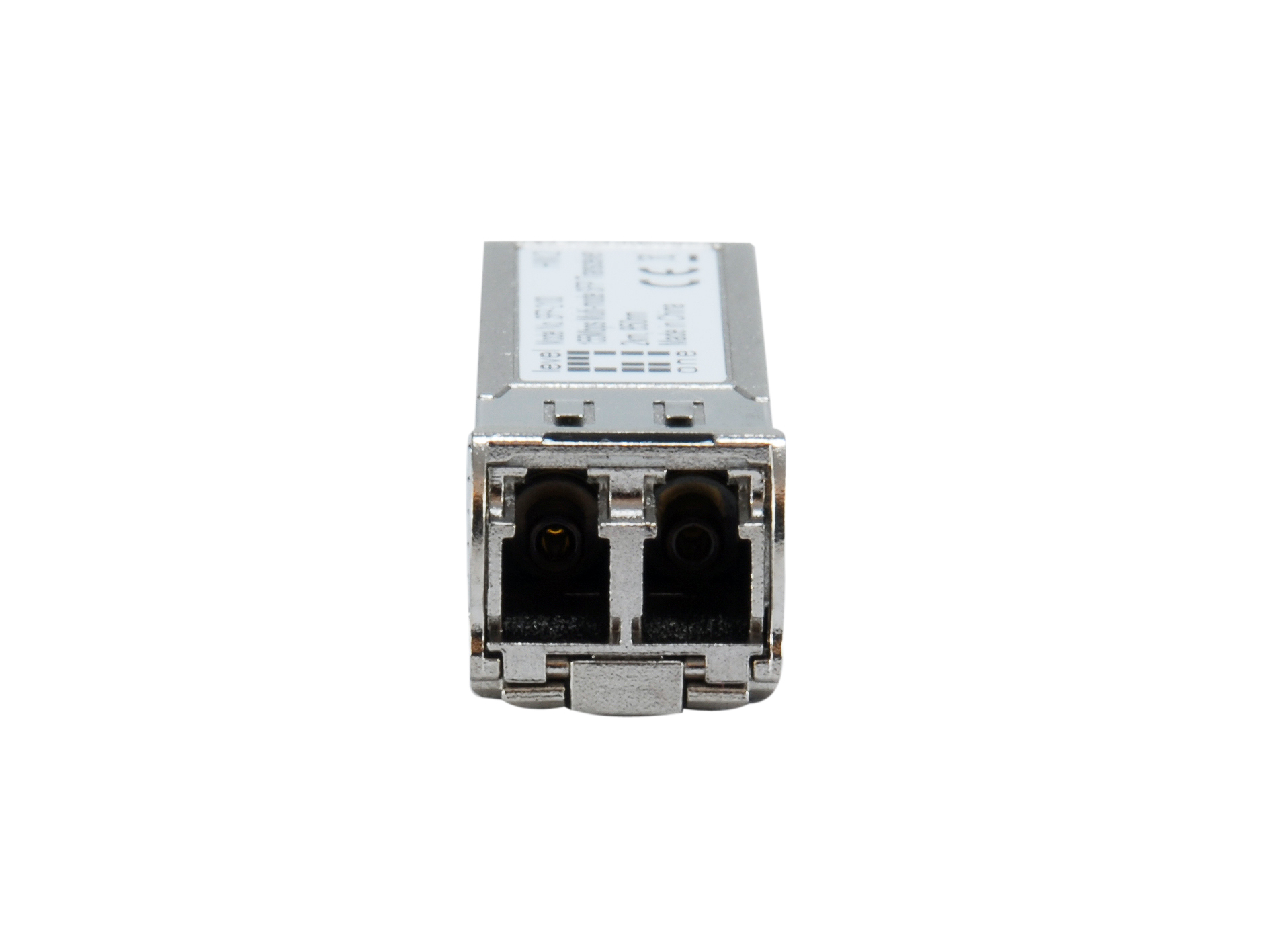

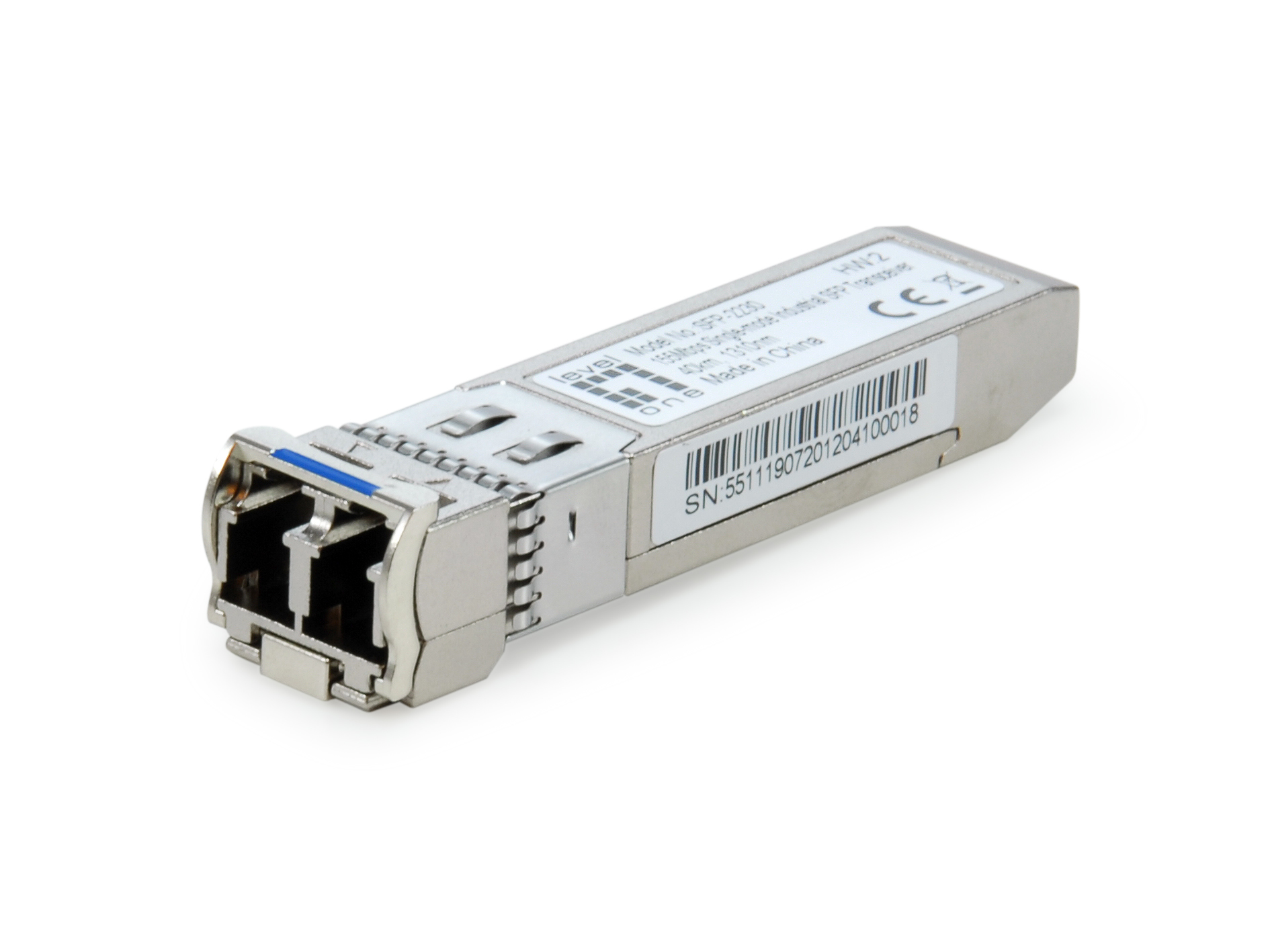

125Mbps Single-mode Industrial SFP Transceiver, 30km, 1310nm, -40°C to 85°C
Model SFP-2230EAN 4015867181164
52 specifications
- Speed155 Mbit/s
- Weight21 g
- ColourSilver
- SFP transceiver typeFiber optic
- Maximum voltage3.47 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 155 Mbit/s
- Weight
- 21 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.47 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- LevelOne
- Category
- Network Transceiver Module
- Model
- SFP-2230
- Part number
- SFP-2230
- EAN / UPC
- 4015867181164, 4015867224427, 5050914833213
- Also known as
- LevelOne 125Mbps Single-mode Industrial SFP Transceiver, 30km, 1310nm, -40°C to 85°C
Specifications
52 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | FX |
| Maximum transfer distance | 2000 m |
| Tx wavelength (min) | 1263 nm |
| Tx wavelength (max) | 1360 nm |
| Rx wavelength (min) | 1270 nm |
| Rx wavelength (max) | 1600 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Rx power (min) | -34 dBmW |
| Rx power (max) | -10 dBmW |
| Copper ethernet cabling technology | 100BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.47 V |
| Maximum current | 0.3 A |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B |
| Certification | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 12 mm |
| Height | 57 mm |
| Weight | 21 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 65 mm |
| Package depth | 106 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 166.9 cm |
| Products per pallet | 35 pc(s) |
| Master (outer) case width | 310 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 268 mm |
| Master (outer) case gross weight | 6.67 kg |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
