Product comparison · 2 network transceiver modules

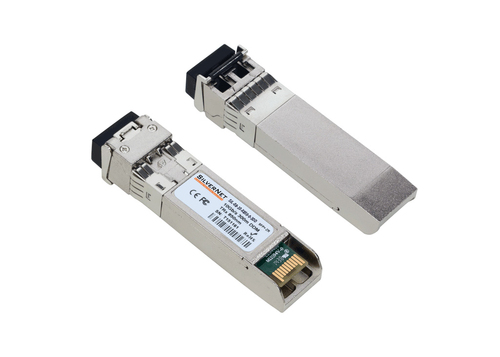

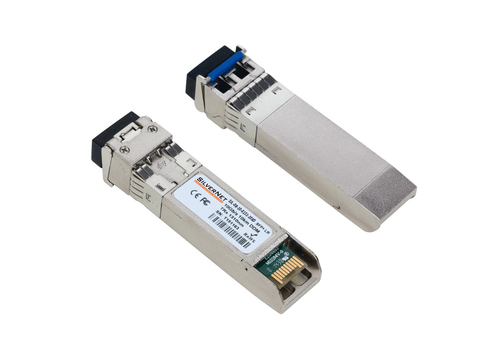

SilverNet SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm vs SilverNet SIL-08-10-X850-0-3D network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

32specifications compared
2differ
30identical
3known for one product only

Key differences

Maximum transfer distance
- SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm:10000 m
- SIL-08-10-X850-0-3D network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm:300 m
Wavelength
- SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm:1310 nm
- SIL-08-10-X850-0-3D network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm:850 nm

Side by side

Differences highlightedShow differences only

Comparison of SIL-08-10-X131-10XD, SIL-08-10-X850-0-3D
35 specifications	A SilverNet SIL-08-10-X131-10XD network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm Model SIL-08-10-X131-10XD View product	B SilverNet SIL-08-10-X850-0-3D network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm Model SIL-08-10-X850-0-3D View product
Performance2 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	10000 Mbit/s	10000 Mbit/s
Interface type	SFP+	SFP+
Multi-mode fiber (MMF) supportedKnown for one	Unknown — not stated by the source	Yes
Fiber optic connector	LC	LC
Fiber cable diameters supported (core/cladding)	9/125 µm	9/125 µm
Maximum transfer distanceDiffers	10000 m	300 m
WavelengthDiffers	1310 nm	850 nm
Ethernet interface type	10 Gigabit Ethernet	10 Gigabit Ethernet
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Single-mode fiber (SMF) supportedKnown for one	Yes	Unknown — not stated by the source
Featuresidentical
Product colour	Nickel	Nickel
Plug and Play	Yes	Yes
Hot-Plug support	Yes	Yes
Hot-swap	Yes	Yes
Easy to install	Yes	Yes
Poweridentical
Input voltage	3.3 V	3.3 V
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	RoHS
Certification	CE IEC60825-1	CE IEC60825-1
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%	0 - 95%
Weight & dimensionsidentical
Width	10 mm	10 mm
Depth	15 mm	15 mm
Height	60 mm	60 mm
Weight	15 g	15 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging dataidentical
Package width	50 mm	50 mm
Package depth	100 mm	100 mm
Package height	20 mm	20 mm
Package weight	30 g	30 g
Package type	Box	Box
Logistics dataidentical
Country of origin	United Kingdom	United Kingdom
UK Trade Tariff code	85176200	85176200
Warranty period	1 year(s)	1 year(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
