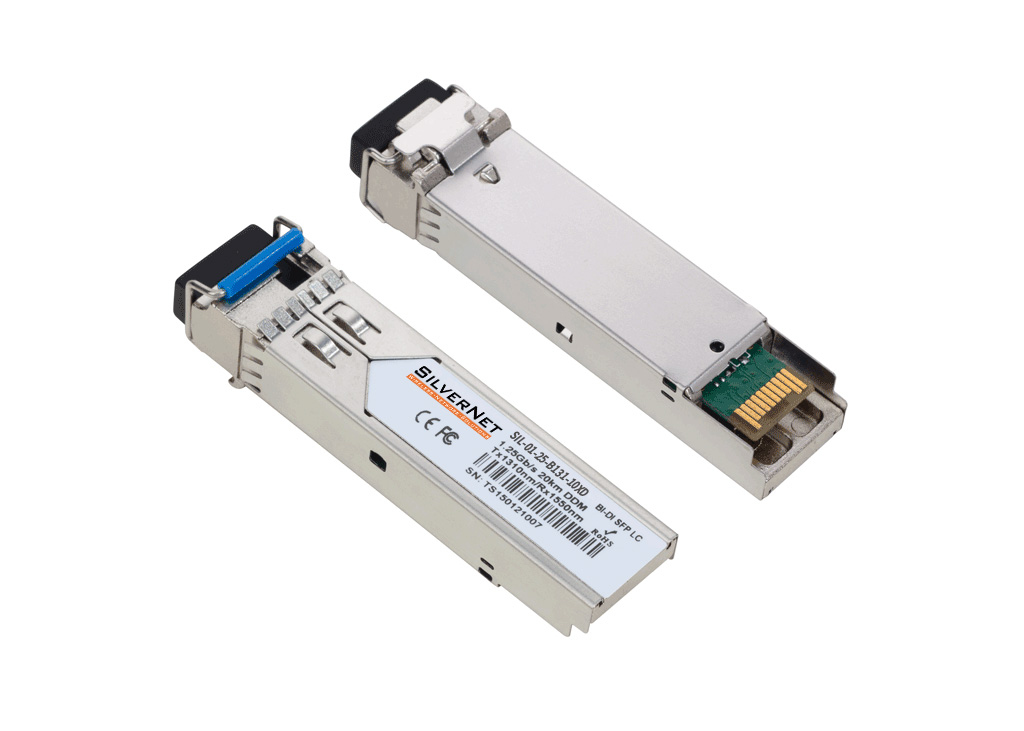

SilverNet SIL-01-25-B131-10XD

SIL-01-25-B131-10XD

Model SFP0-01-25-B131-10XDPart no. SIL-01-25-B131-10XDEAN 5060693981456

36 specifications

Speed1250 Mbit/s
Weight15 g
ColourNickel
SFP transceiver typeFiber optic
Input voltage3.3 V
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Speed: 1250 Mbit/s
Weight: 15 g
Colour: Nickel
SFP transceiver type: Fiber optic
Input voltage: 3.3 V
Operating temperature (T-T): 0 - 70 °C

Brand: SilverNet
Category: Network Transceiver Module
Model: SFP0-01-25-B131-10XD
Part number: SIL-01-25-B131-10XD
EAN / UPC: 5060693981456
Also known as: SilverNet SIL-01-25-B131-10XD

Specifications

36 specifications in 9 groups

Performance

Specification	Value
SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
Maximum transfer distance	40000 m
Wavelength	1310 nm
Tx wavelength (max)	1550 nm
Rx wavelength (max)	1310 nm
Digital Diagnostics Monitoring (DDM)	Yes

Features

Specification	Value
Product colour	Nickel
Plug and Play	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Easy to install	Yes

Power

Specification	Value
Input voltage	3.3 V

Certificates

Specification	Value
Compliance certificates	RoHS
Safety	IEC60825-1
Certification	MSA, CE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	10 mm
Depth	15 mm
Height	60 mm
Weight	15 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Packaging data

Specification	Value
Package width	50 mm
Package depth	100 mm
Package height	20 mm
Package weight	30 g
Package type	Box

Logistics data

Specification	Value
Country of origin	United Kingdom
UK Trade Tariff code	85176200
Warranty period	1 year(s)
