Product comparison · 2 network transceiver modules

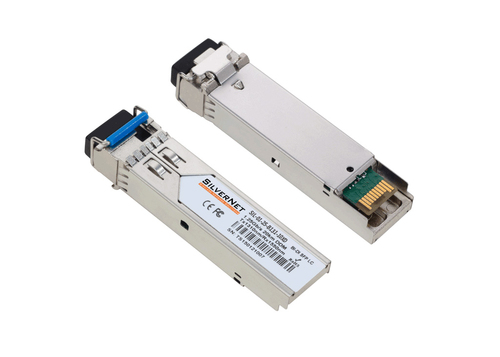

SilverNet SIL-01-25-B131-10XD vs SilverNet 1 Gbps SFP Fibre Transmission Module

30specifications compared
4differ
26identical
7known for one product only

Key differences

Fiber cable diameters supported (core/cladding)
- SIL-01-25-B131-10XD:9/125 µm
- 1 Gbps SFP Fibre Transmission Module:50/125 µm
Maximum transfer distance
- SIL-01-25-B131-10XD:40000 m
- 1 Gbps SFP Fibre Transmission Module:550 m
Wavelength
- SIL-01-25-B131-10XD:1310 nm
- 1 Gbps SFP Fibre Transmission Module:850 nm
Package weight
- SIL-01-25-B131-10XD:30 g
- 1 Gbps SFP Fibre Transmission Module:35 g

Side by side

Differences highlightedShow differences only

Comparison of SFP0-01-25-B131-10XD, SIL-01-25-X850-0-5D
37 specifications	A SilverNet SIL-01-25-B131-10XD Model SFP0-01-25-B131-10XD View product	B SilverNet 1 Gbps SFP Fibre Transmission Module Model SIL-01-25-X850-0-5D View product
Performance3 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	1250 Mbit/s	1250 Mbit/s
Interface type	SFP	SFP
Single-mode fiber (SMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connector	LC	LC
Fiber cable diameters supported (core/cladding)Differs	9/125 µm	50/125 µm
Maximum transfer distanceDiffers	40000 m	550 m
WavelengthDiffers	1310 nm	850 nm
Tx wavelength (max)Known for one	1550 nm	Unknown — not stated by the source
Rx wavelength (max)Known for one	1310 nm	Unknown — not stated by the source
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Multi-mode fiber (MMF) supportedKnown for one	Unknown — not stated by the source	Yes
Featuresidentical
Product colour	Nickel	Nickel
Plug and Play	Yes	Yes
Hot-Plug support	Yes	Yes
Hot-swap	Yes	Yes
Easy to install	Yes	Yes
Poweridentical
Input voltageKnown for one	3.3 V	Unknown — not stated by the source
Certificatesidentical
Compliance certificates	RoHS	RoHS
SafetyKnown for one	IEC60825-1	Unknown — not stated by the source
Certification	MSA, CE	MSA, CE
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%	0 - 95%
Weight & dimensionsidentical
Width	10 mm	10 mm
Depth	15 mm	15 mm
Height	60 mm	60 mm
Weight	15 g	15 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging data1 differ
Package width	50 mm	50 mm
Package depth	100 mm	100 mm
Package height	20 mm	20 mm
Package weightDiffers	30 g	35 g
Package type	Box	Box
Logistics dataidentical
Country of origin	United Kingdom	United Kingdom
UK Trade Tariff code	85176200	85176200
Warranty periodKnown for one	1 year(s)	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
