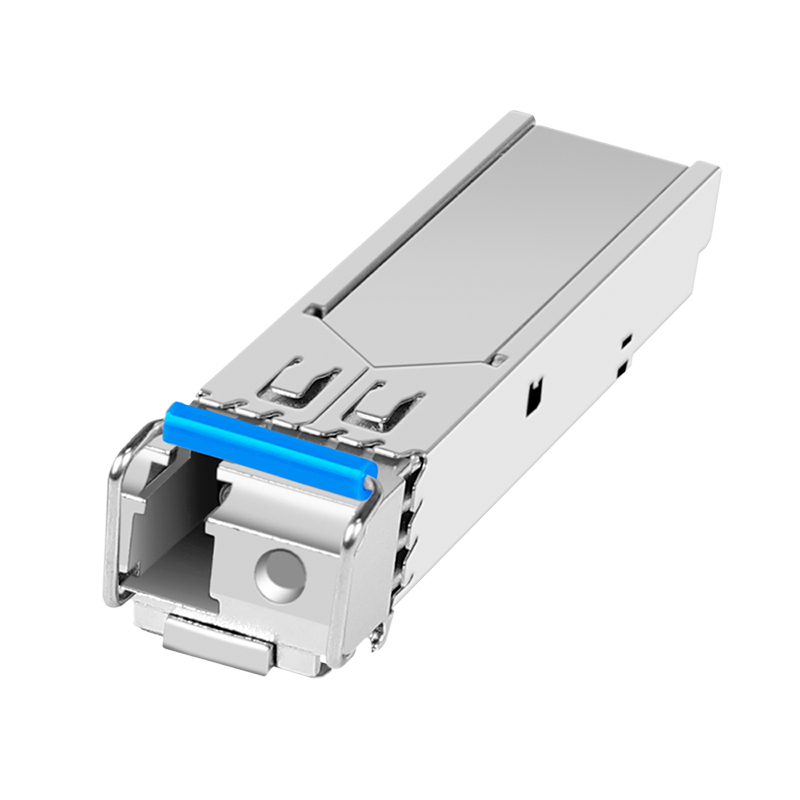

SFP003 network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP
Model SFP003EAN 4052792075618
24 specifications
- Speed1250 Mbit/s
- TypeSFP
- Weight20 g
- ColourSilver
- SFP transceiver typeFiber optic
- Width13.7 mm
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Width
- 13.7 mm
- Brand
- LogiLink
- Category
- Network Transceiver Module
- Model
- SFP003
- Part number
- SFP003
- EAN / UPC
- 4052792075618
- Also known as
- LogiLink SFP003 network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP
Specifications
24 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-U |
| Maximum transfer distance | 20000 m |
| Tx wavelength (min) | 1310 nm |
| Rx wavelength (min) | 1550 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 1.25 Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 56.7 mm |
| Height | 12.8 mm |
| Weight | 20 g |
