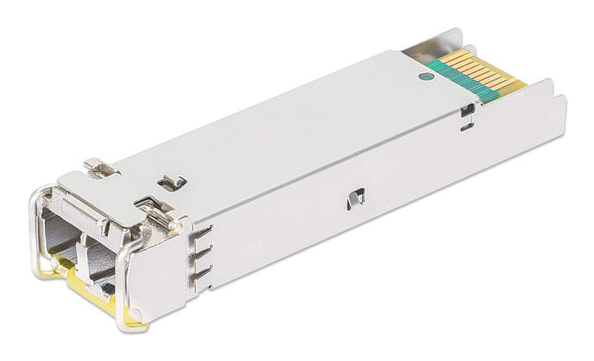

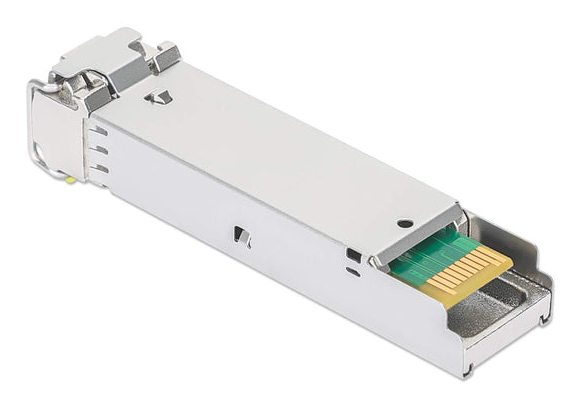

509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Model 509084EAN 766623509084
35 specifications
- Speed1000 Mbit/s
- TypeSFP
- Weight20 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 509084
- Part number
- 509084
- EAN / UPC
- 766623509084
- Also known as
- Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Specifications
35 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 19 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Compatible products | Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Cadmium, Lead, Mercury |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 30 g |
Other features
| Specification | Value |
|---|---|
| RX sensitivity | -24 dB |
