Product comparison · 2 network transceiver modules

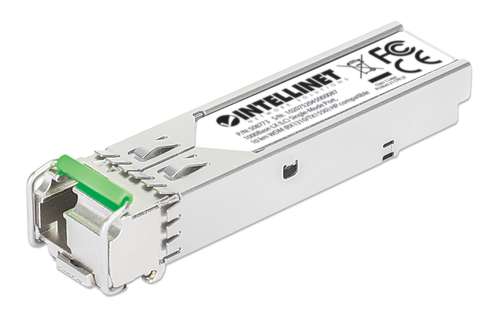

Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c vs Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm

24specifications compared
7differ
17identical
25known for one product only

Key differences

SFP transceiver standard
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:BX-U
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:LX
Maximum transfer distance
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:10000 m
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:40000 m
Tx power (min)
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:-8 dBmW
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:-5 dBmW
Tx power (max)
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:-3 dBmW
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:0 dBmW
Link budget
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:16 dB
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:19 dB
Operating temperature (T-T)
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:0 - 70 °C
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:-40 - 85 °C
Operating relative humidity (H-H)
- Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c:10 - 85%
- 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm:5 - 95%

Side by side

Differences highlightedShow differences only

Comparison of 508773, 509084
49 specifications	A Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-U (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1310/TX1550), HPE-c Model 508773 View product	B Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm Model 509084 View product
Performance5 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	1000 Mbit/s	1000 Mbit/s
Interface type	SFP	SFP
Single-mode fiber (SMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connectorKnown for one	LC	Unknown — not stated by the source
Fiber cable diameters supported (core/cladding)	9/125 µm	9/125 µm
SFP transceiver standardDiffers	BX-U	LX
Maximum transfer distanceDiffers	10000 m	40000 m
Tx wavelength (max)Known for one	1550 nm	Unknown — not stated by the source
Rx wavelength (max)Known for one	1310 nm	Unknown — not stated by the source
Tx power (min)Differs	-8 dBmW	-5 dBmW
Tx power (max)Differs	-3 dBmW	0 dBmW
Link budgetDiffers	16 dB	19 dB
Networking standards	IEEE 802.3z	IEEE 802.3z
Fiber ethernet cabling technologyKnown for one	1000BASE	Unknown — not stated by the source
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Wavelength-division multiplexing (WDM)Known for one	Yes	Unknown — not stated by the source
WavelengthKnown for one	Unknown — not stated by the source	1550 nm
Ethernet interface typeKnown for one	Unknown — not stated by the source	Gigabit Ethernet
Duplex systemKnown for one	Unknown — not stated by the source	Full
Featuresidentical
Product colour	Silver	Silver
Hot-Plug support	Yes	Yes
Housing materialKnown for one	Unknown — not stated by the source	Metal
Form factorKnown for one	Unknown — not stated by the source	SFP
Plug and PlayKnown for one	Unknown — not stated by the source	Yes
Brand compatibilityKnown for one	Unknown — not stated by the source	MSA Compliant
Compatible productsKnown for one	Unknown — not stated by the source	Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more
Poweridentical
Maximum voltageKnown for one	3.3 V	Unknown — not stated by the source
Power consumption (typical)	1 W	1 W
Input voltageKnown for one	Unknown — not stated by the source	3.3 V
Certificatesidentical
Compliance certificates	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA
Sustainabilityidentical
Sustainability complianceKnown for one	Yes	Unknown — not stated by the source
Doesn't containKnown for one	Unknown — not stated by the source	Cadmium, Lead, Mercury
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 70 °C	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)Differs	10 - 85%	5 - 95%
Weight & dimensionsidentical
Width	14 mm	14 mm
Depth	57 mm	57 mm
Height	12 mm	12 mm
Weight	20 g	20 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging dataidentical
Package weight	30 g	30 g
Package typeKnown for one	Box	Unknown — not stated by the source
Logistics dataidentical
Master (outer) case widthKnown for one	200 mm	Unknown — not stated by the source
Master (outer) case lengthKnown for one	310 mm	Unknown — not stated by the source
Master (outer) case heightKnown for one	250 mm	Unknown — not stated by the source
Master (outer) case gross weightKnown for one	2.6 kg	Unknown — not stated by the source
Products per master (outer) caseKnown for one	48 pc(s)	Unknown — not stated by the source
Other featuresidentical
RX sensitivityKnown for one	Unknown — not stated by the source	-24 dB

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
