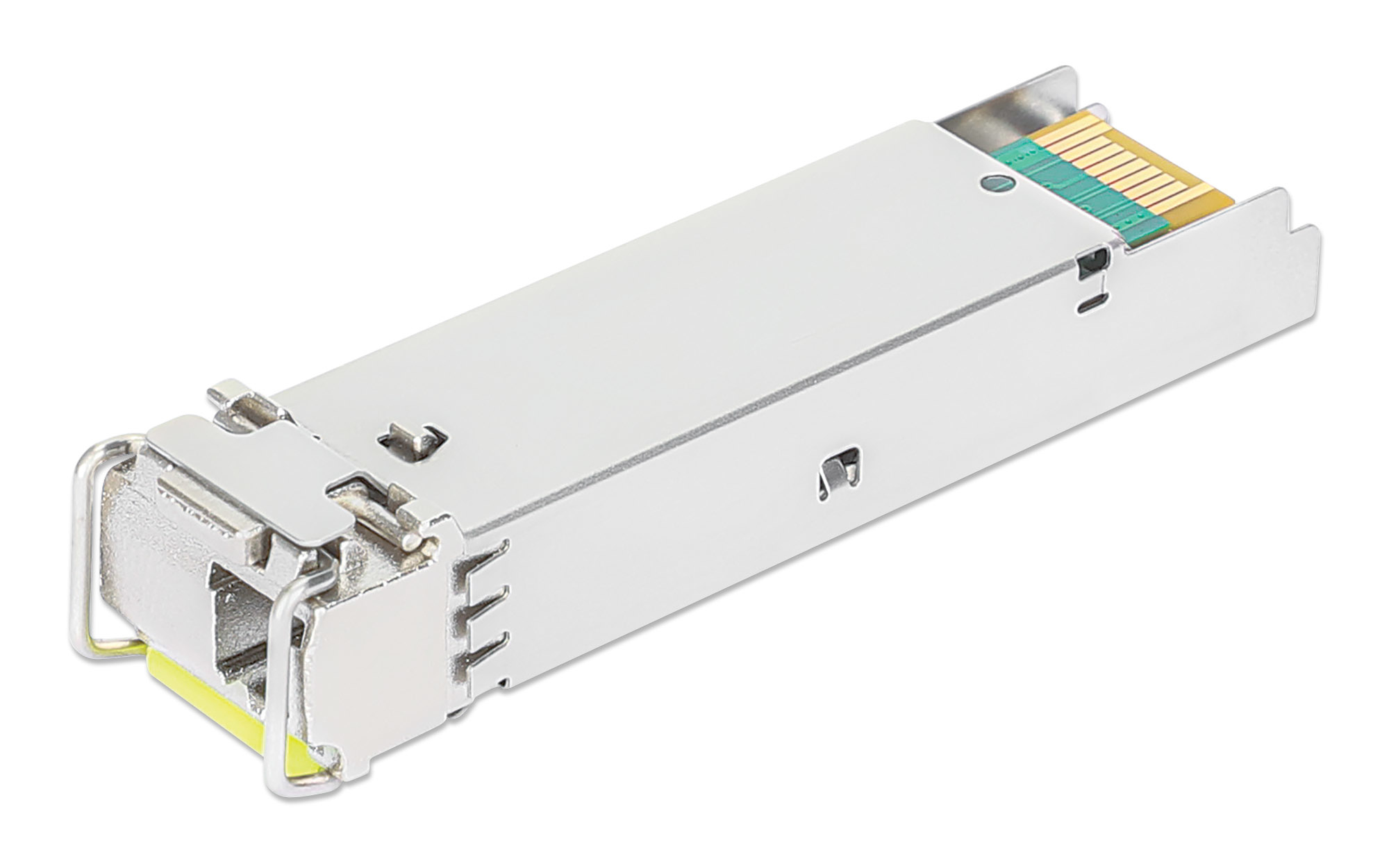

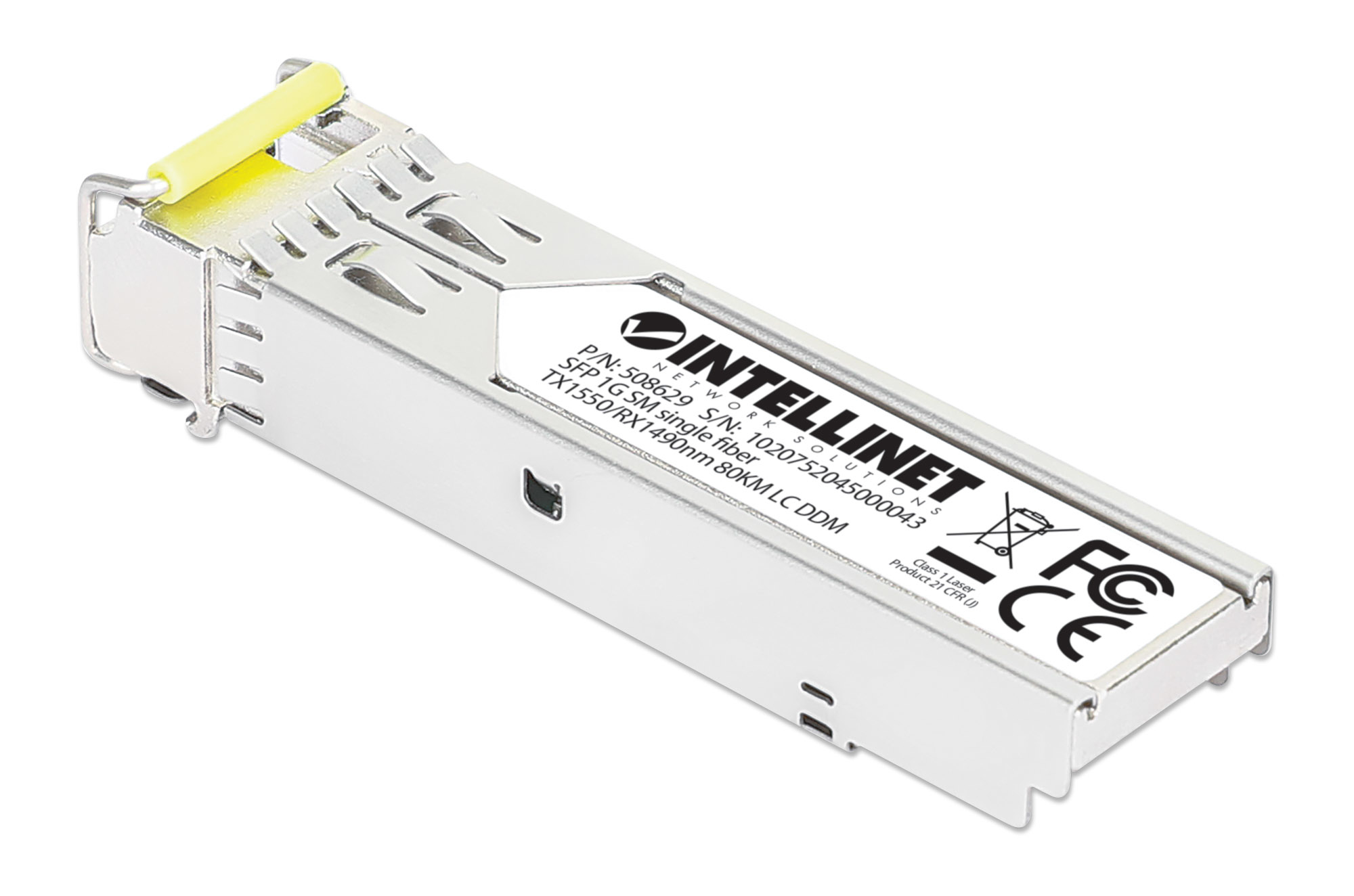

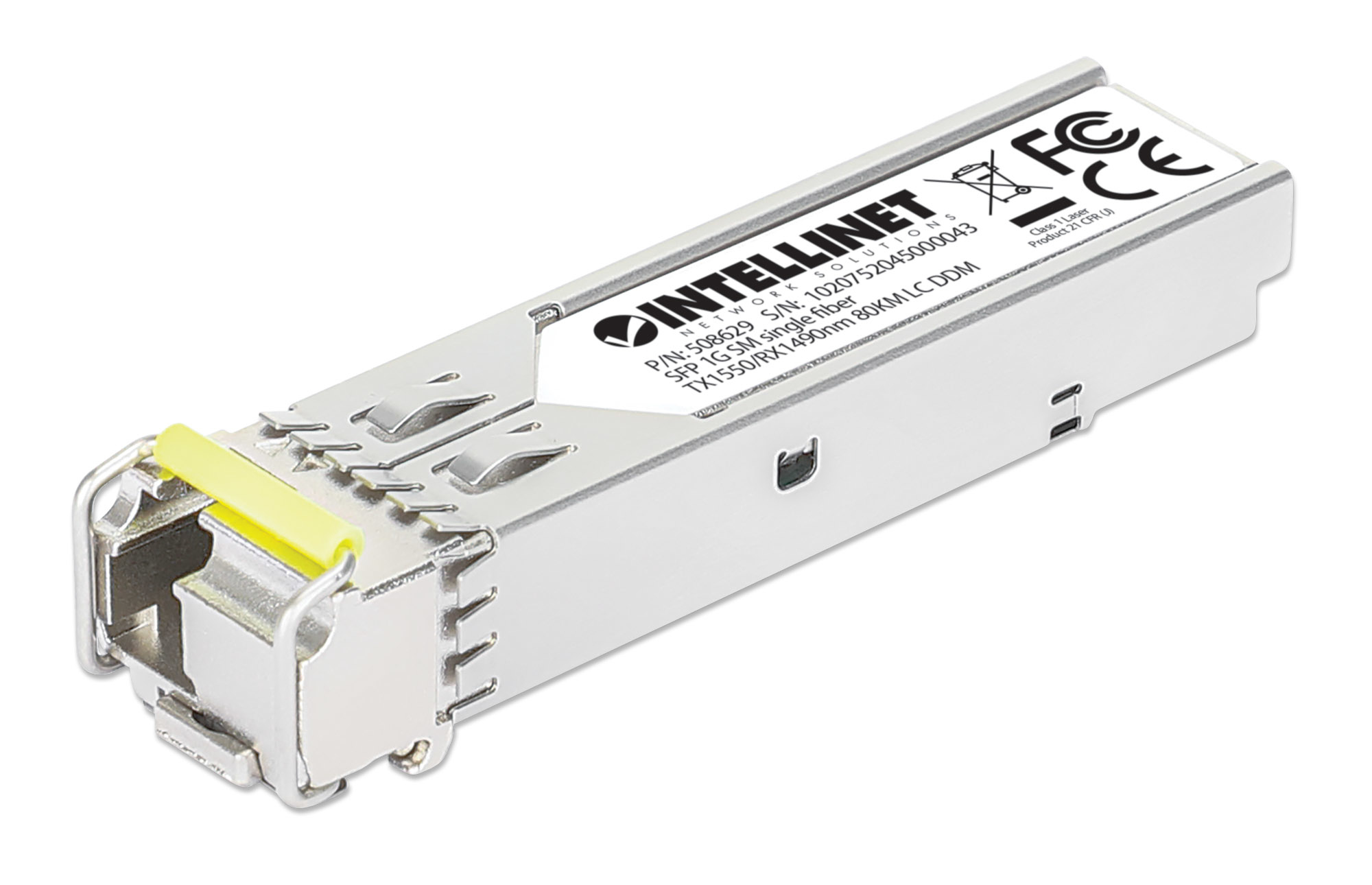

Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 80 km (50 mi.), BiDi WDM (RX1490/TX1550), MSA-co
Model 508629EAN 766623508629
38 specifications
- Speed1000 Mbit/s
- Weight20 g
- ColourSilver
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1000 Mbit/s
- Weight
- 20 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 508629
- Part number
- 508629
- EAN / UPC
- 766623508629
- Also known as
- Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 80 km (50 mi.), BiDi WDM (RX1490/TX1550), MSA-co
Specifications
38 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | BX-D |
| Maximum transfer distance | 80000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1490 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Fiber ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 30 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 200 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 2.6 kg |
| Products per master (outer) case | 48 pc(s) |
