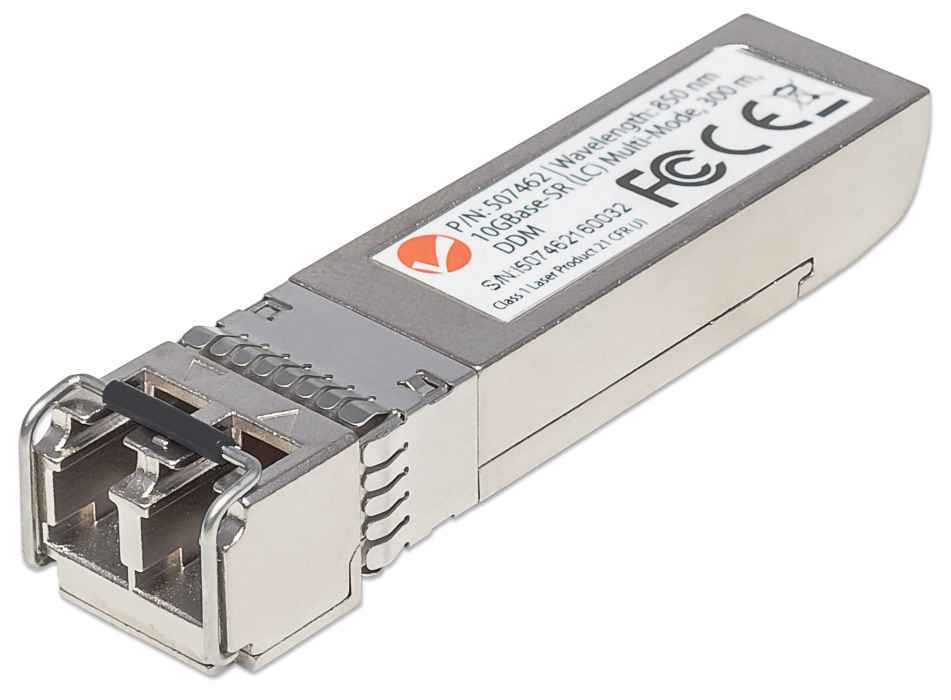

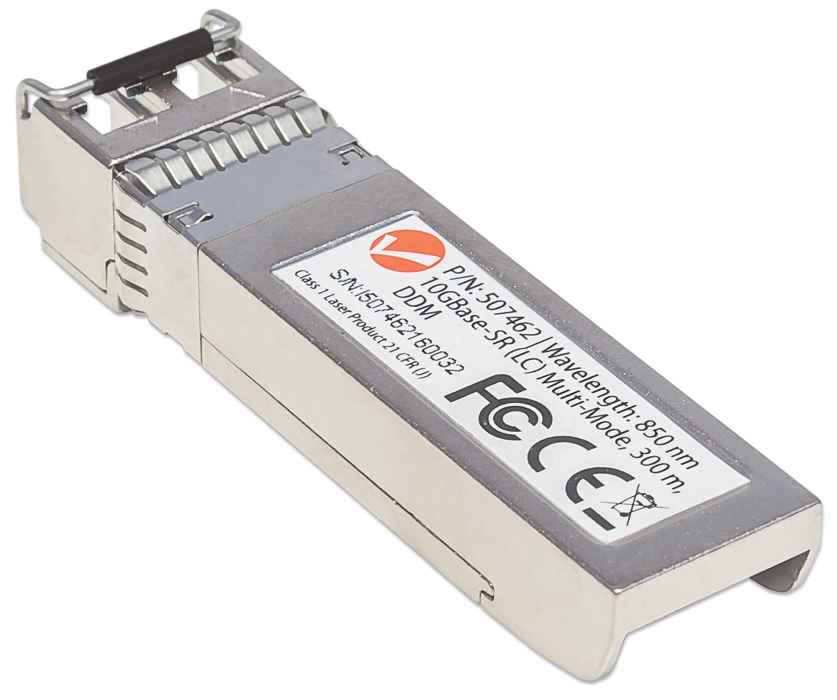

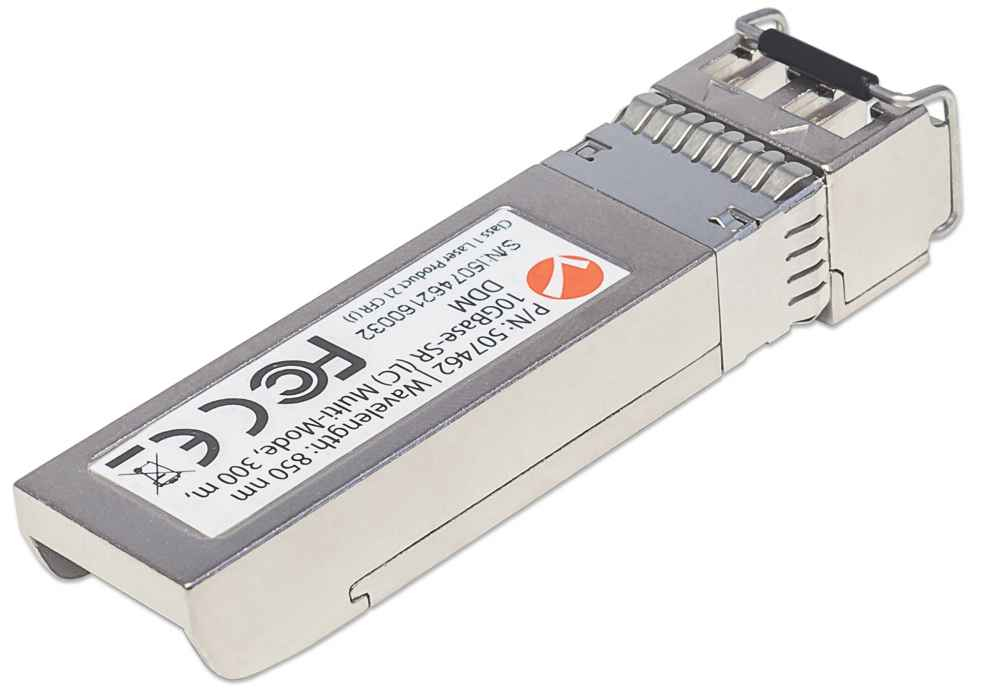

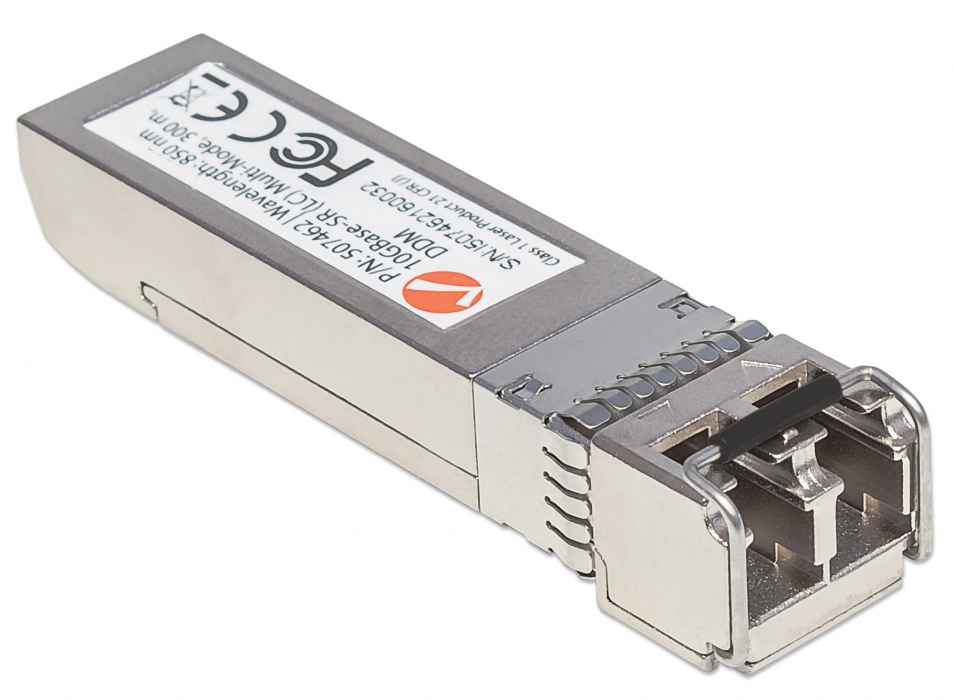

Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10
Model 507462EAN 766623507462
32 specifications
- Speed11100 Mbit/s
- Weight37 g
- ColourSilver
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 11100 Mbit/s
- Weight
- 37 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Intellinet
- Category
- Network Transceiver Module
- Model
- 507462
- Part number
- 507462
- EAN / UPC
- 766623507462
- Also known as
- Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10
Specifications
32 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 11100 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SR |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | -1 dBmW |
| Link budget | 7 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE Mark, IEC-60825, RoHS, NDAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
