Product comparison · 2 network transceiver modules

Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10 vs Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival

28specifications compared
9differ
19identical
17known for one product only

Key differences

Maximum data transfer rate
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:11100 Mbit/s
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:10000 Mbit/s
Fiber cable diameters supported (core/cladding)
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:50/125,62.5/125 µm
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:9/125 µm
SFP transceiver standard
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:SR
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:LR
Maximum transfer distance
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:300 m
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:10000 m
Wavelength
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:850 nm
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:1310 nm
Tx power (min)
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:-5 dBmW
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:-6 dBmW
Tx power (max)
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:-1 dBmW
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:-0.5 dBmW
Link budget
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10:7 dB
- Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival:9 dB

Side by side

Differences highlightedShow differences only

Comparison of 507462, 508759

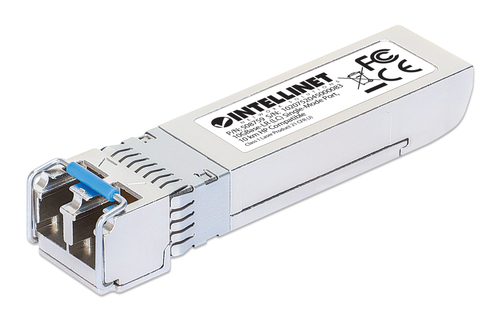

45 specifications	A Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, MSA Compliant, Equivalent to Cisco SFP-10 Model 507462 View product	B Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 300m, Wavelength 1310nm, Ethernet, Fibre, HPE Compliant, Equival Model 508759 View product
Performance8 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rateDiffers	11100 Mbit/s	10000 Mbit/s
Interface type	SFP+	SFP+
Single-mode fiber (SMF) supportedKnown for one	Unknown — not stated by the source	Yes
Fiber optic connector	LC	LC
Fiber cable diameters supported (core/cladding)Differs	50/125,62.5/125 µm	9/125 µm
SFP transceiver standardDiffers	SR	LR
Maximum transfer distanceDiffers	300 m	10000 m
WavelengthDiffers	850 nm	1310 nm
Tx power (min)Differs	-5 dBmW	-6 dBmW
Tx power (max)Differs	-1 dBmW	-0.5 dBmW
Link budgetDiffers	7 dB	9 dB
Networking standards	IEEE 802.3ae, IEEE 802.3z	IEEE 802.3ae, IEEE 802.3z
Fiber ethernet cabling technology	10GBASE	10GBASE
Duplex system	Full	Full
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Multi-mode fiber (MMF) supportedKnown for one	Yes	Unknown — not stated by the source
Ethernet interface typeKnown for one	Gigabit Ethernet	Unknown — not stated by the source
Featuresidentical
Product colour	Silver	Silver
Housing materialKnown for one	Unknown — not stated by the source	Metal
Hot-Plug support	Yes	Yes
Poweridentical
Maximum voltage	3.3 V	3.3 V
Power consumption (typical)	1 W	1 W
Certificatesidentical
Compliance certificates	CE, RoHS, Federal Communications Commission (FCC)	CE, RoHS, Federal Communications Commission (FCC)
CertificationKnown for one	FCC Class A, CE Mark, IEC-60825, RoHS, NDAA	Unknown — not stated by the source
Sustainabilityidentical
Sustainability complianceKnown for one	Unknown — not stated by the source	Yes
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%	10 - 85%
Weight & dimensions1 differ
Width	14 mm	14 mm
Depth	57 mm	57 mm
Height	12 mm	12 mm
WeightDiffers	37 g	20 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging dataidentical
Package widthKnown for one	Unknown — not stated by the source	56 mm
Package depthKnown for one	Unknown — not stated by the source	120 mm
Package heightKnown for one	Unknown — not stated by the source	24 mm
Package weightKnown for one	Unknown — not stated by the source	50 g
Package typeKnown for one	Unknown — not stated by the source	Box
Logistics dataidentical
Master (outer) case widthKnown for one	Unknown — not stated by the source	200 mm
Master (outer) case lengthKnown for one	Unknown — not stated by the source	310 mm
Master (outer) case heightKnown for one	Unknown — not stated by the source	250 mm
Master (outer) case gross weightKnown for one	Unknown — not stated by the source	2.6 kg
Products per master (outer) caseKnown for one	Unknown — not stated by the source	48 pc(s)
Harmonized System (HS) codeKnown for one	85369010	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
