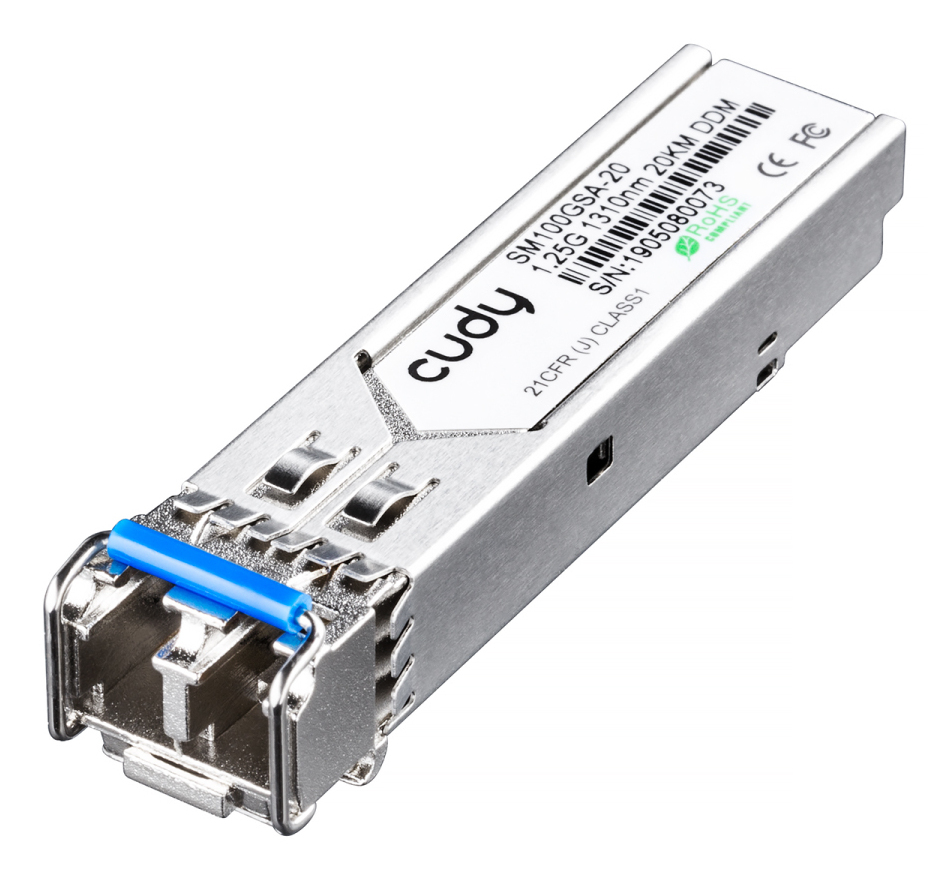

SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Model SM100GSA-20EAN 6971690790707
19 specifications
- Speed1250 Mbit/s
- TypeSFP
- ColourStainless steel
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature-40 °C
Overview
- Speed
- 1250 Mbit/s
- Type
- SFP
- Colour
- Stainless steel
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- -40 °C
- Brand
- Cudy
- Category
- Network Transceiver Module
- Model
- SM100GSA-20
- Part number
- SM100GSA-20
- EAN / UPC
- 6971690790707
- Also known as
- Cudy SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Specifications
19 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Form factor | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 4 V |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
