Product comparison · 2 network transceiver modules

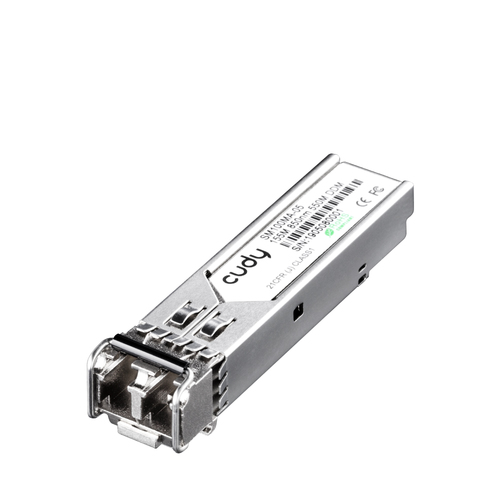

Cudy SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm vs Cudy SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm

14specifications compared
8differ
6identical
14known for one product only

Key differences

SFP transceiver type
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:Fiber optic
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:Copper
Maximum data transfer rate
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:1250 Mbit/s
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:155 Mbit/s
Maximum transfer distance
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:20000 m
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:550 m
Wavelength
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:1310 nm
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:850 nm
Product colour
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:Stainless steel
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:Silver
Input voltage
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:3.3 V
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:3.47 V
Operating temperature (T-T)
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:-40 - 70 °C
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:-40 - 85 °C
Width
- SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm:13.7 mm
- SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm:13.4 mm

Side by side

Differences highlightedShow differences only

Comparison of SM100GSA-20, SM100MA-05
28 specifications	A Cudy SM100GSA-20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm Model SM100GSA-20 View product	B Cudy SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm Model SM100MA-05 View product
Performance4 differ
SFP transceiver typeDiffers	Fiber optic	Copper
Maximum data transfer rateDiffers	1250 Mbit/s	155 Mbit/s
Interface type	SFP	SFP
Maximum transfer distanceDiffers	20000 m	550 m
WavelengthDiffers	1310 nm	850 nm
Networking standardsKnown for one	Unknown — not stated by the source	IEEE 802.3
Copper ethernet cabling technologyKnown for one	Unknown — not stated by the source	10BASE, 100BASE
Digital Diagnostics Monitoring (DDM)Known for one	Unknown — not stated by the source	Yes
Single-mode fiber (SMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connectorKnown for one	LC	Unknown — not stated by the source
Features1 differ
Product colourDiffers	Stainless steel	Silver
Housing materialKnown for one	Unknown — not stated by the source	Metal
Hot-Plug supportKnown for one	Unknown — not stated by the source	Yes
Brand compatibilityKnown for one	Unknown — not stated by the source	MSA Compliant
Form factorKnown for one	SFP	Unknown — not stated by the source
Power1 differ
Input voltageDiffers	3.3 V	3.47 V
Maximum voltage	4 V	4 V
Power consumption (typical)Known for one	Unknown — not stated by the source	1 W
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	CE, Federal Communications Commission (FCC), RoHS
Sustainabilityidentical
Sustainability complianceKnown for one	Unknown — not stated by the source	Yes
Operational conditions1 differ
Operating temperature (T-T)Differs	-40 - 70 °C	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Minimum operating temperatureKnown for one	-40 °C	Unknown — not stated by the source
Maximum operating temperatureKnown for one	70 °C	Unknown — not stated by the source
Weight & dimensions1 differ
WidthDiffers	13.7 mm	13.4 mm
Depth	68 mm	68 mm
Height	13.8 mm	13.8 mm
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
