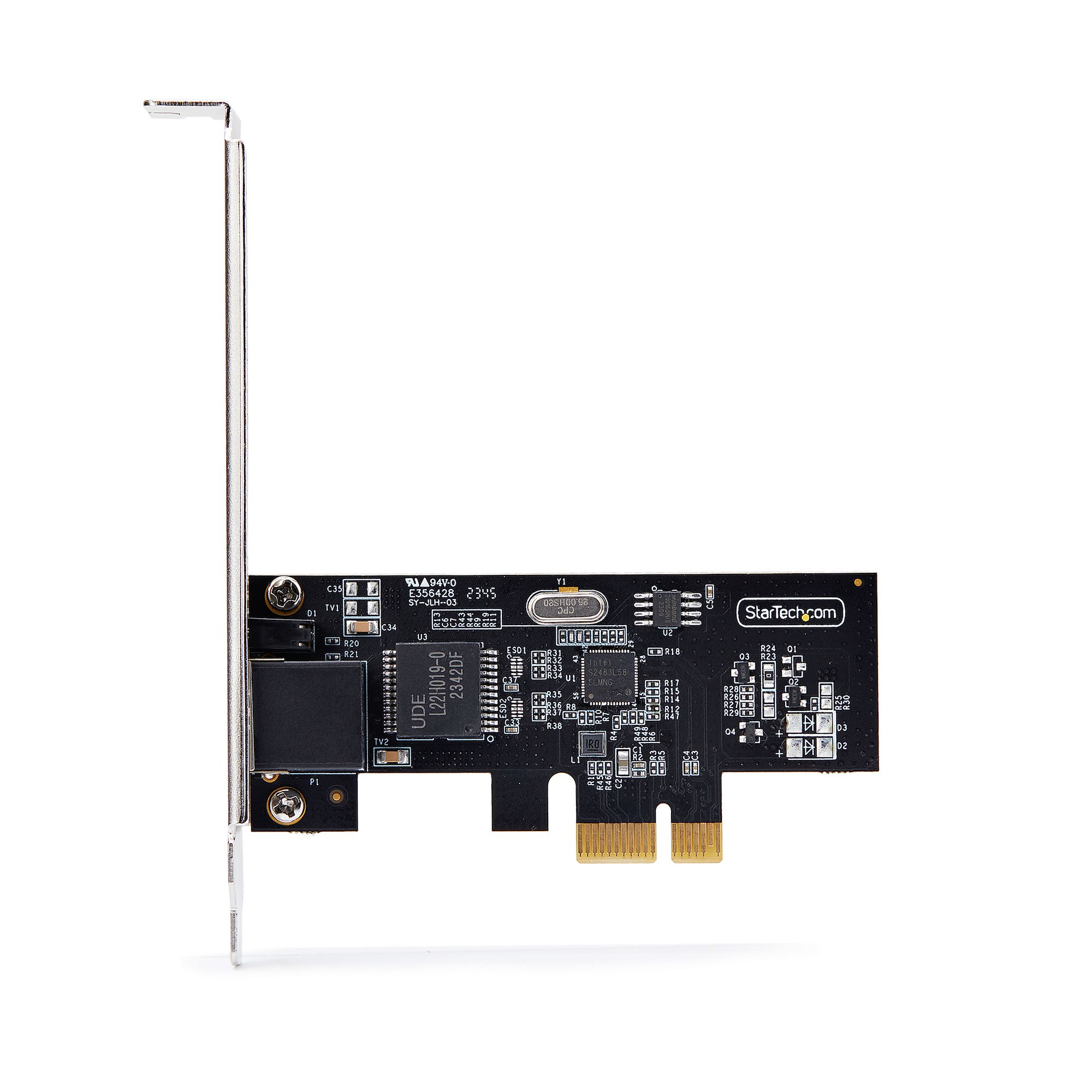

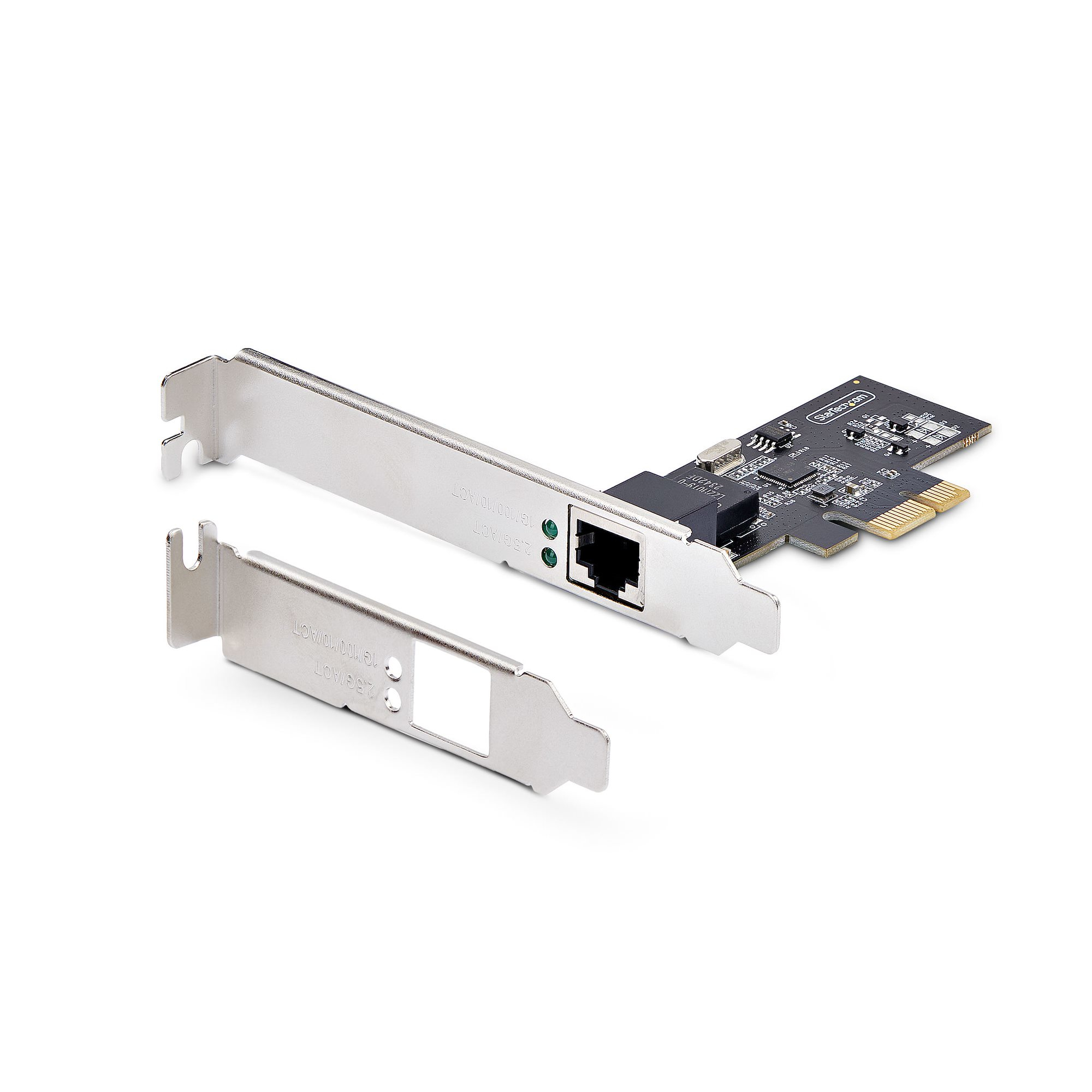

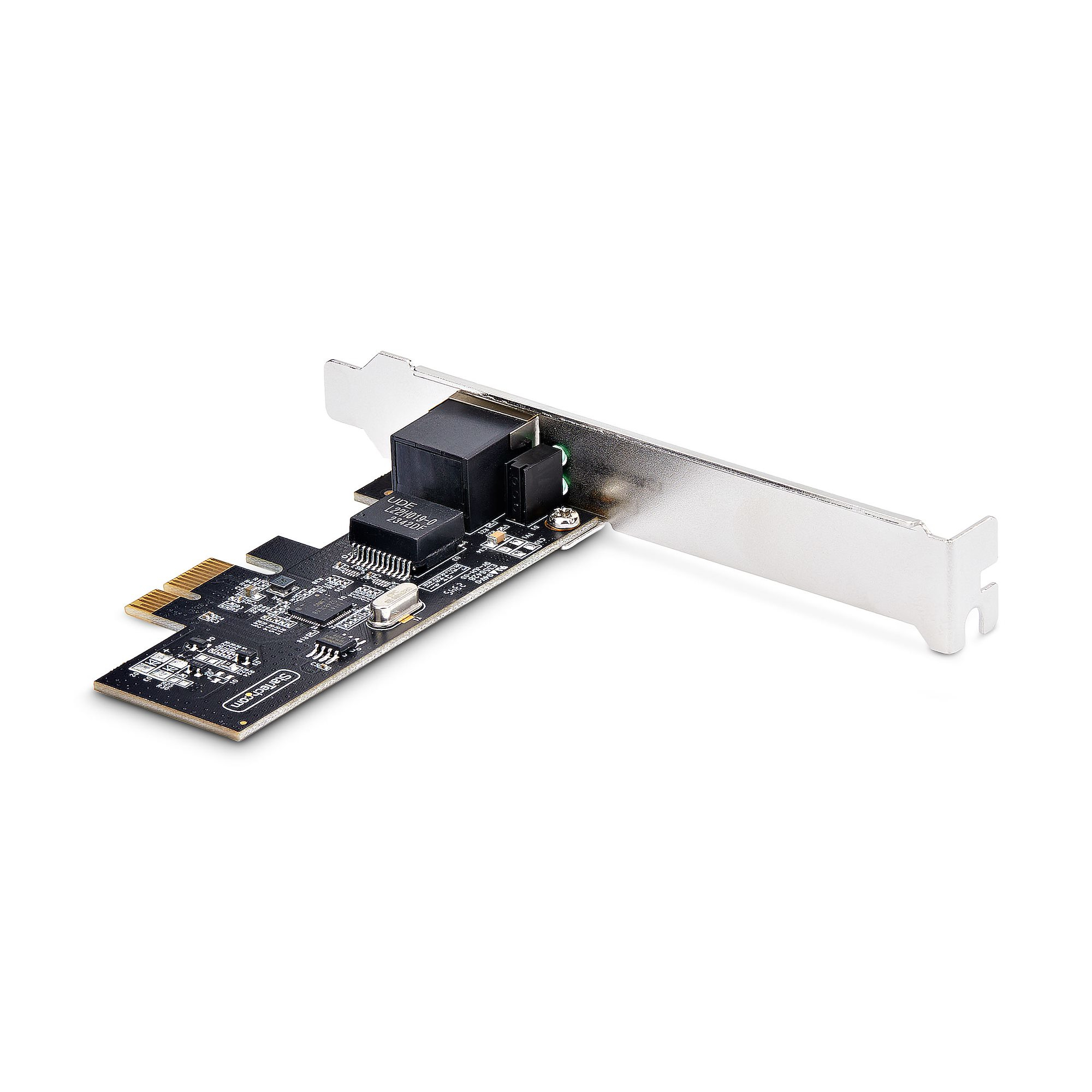

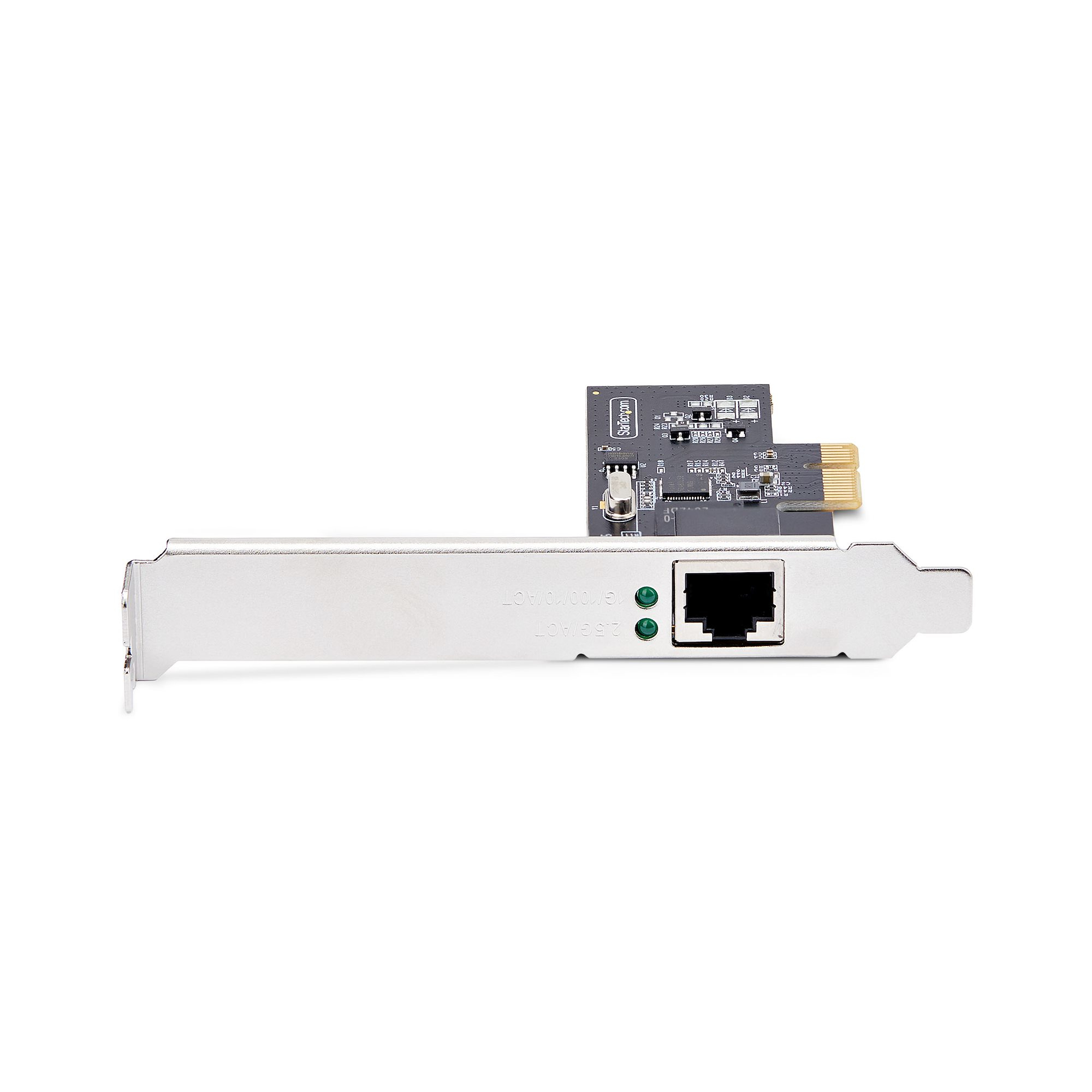

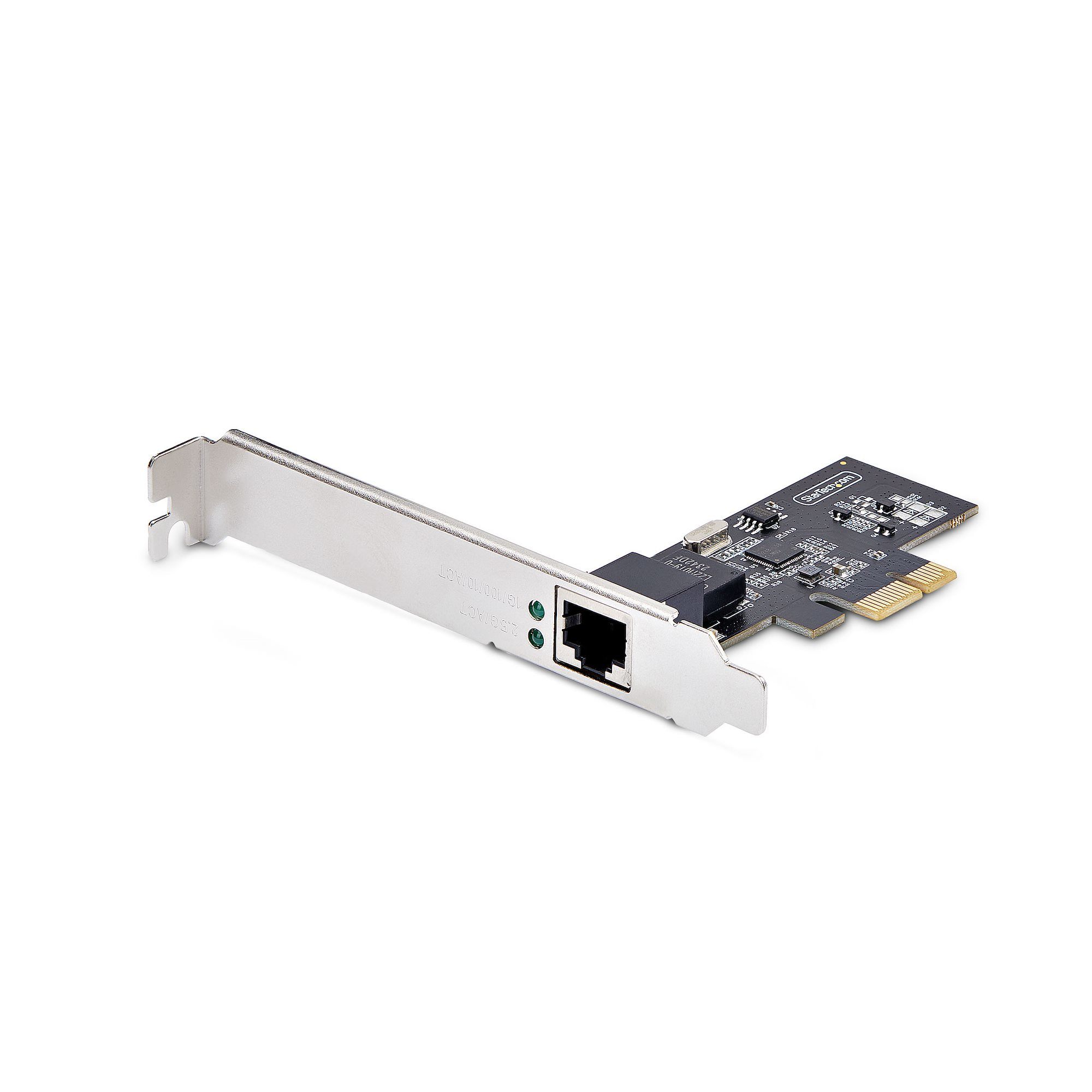

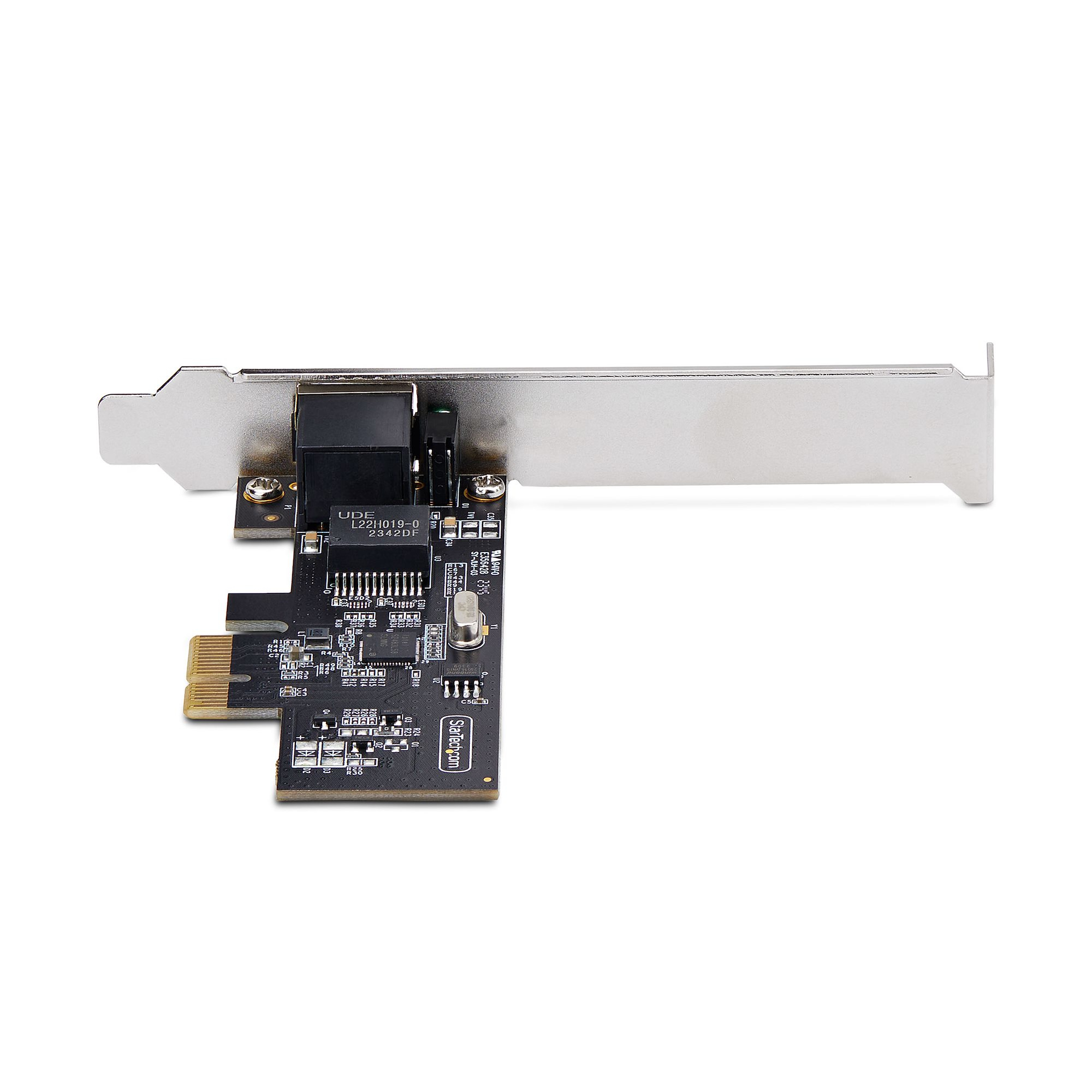

1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card
Model PR12GI-NETWORK-CARDEAN 065030906203
38 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- Weight100 g
- ColourBlack
- InternalYes
- Operating temperature (T-T)5 - 50 °C
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Weight
- 100 g
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- PR12GI-NETWORK-CARD
- Part number
- PR12GI-NETWORK-CARD
- EAN / UPC
- 065030906203
- Also known as
- StarTech.com 1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Black |
| Chipset | Intel I225-V |
| LED indicators | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89 mm |
| Depth | 121 mm |
| Height | 15 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 216 mm |
| Package depth | 150 mm |
| Package height | 36 mm |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 448 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 329 mm |
| Products per master (outer) case | 40 pc(s) |
