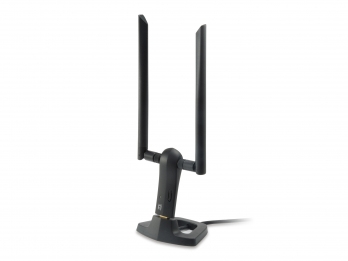

LevelOne AC1200 Dual Band Wireless USB Network Adapter, 1-11 Channel
LevelOne

AC1200 Dual Band Wireless USB Network Adapter, 1-11 Channel

Model WUA-1810AEAN 4015867200377

51 specifications
  • Speed867 Mbit/s
  • ConnectivityWireless
  • Weight100 g
  • ColourBlack
  • InternalNo
  • Input current0.5 A
See all specifications

Overview

Speed
867 Mbit/s
Connectivity
Wireless
Weight
100 g
Colour
Black
Internal
No
Input current
0.5 A
Brand
LevelOne
Category
Network Card
Model
WUA-1810A
Part number
WUA-1810A
EAN / UPC
4015867200377
Also known as
LevelOne AC1200 Dual Band Wireless USB Network Adapter, 1-11 Channel

Specifications

51 specifications in 11 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB
InterfaceWLAN
Ethernet LAN (RJ-45) ports0

Network

Maximum data transfer rate867 Mbit/s
Networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported1,2,5.5,6,9,11,12,18,24,36,48,54,130,300,867 Mbit/s
ModulationDSSS, OFDM
Channels quantity (EU)11 channels
Bandwidth (first)2.4 GHz
Bandwidth (second)5.8 GHz
Maximum indoor range100 m

Design

InternalNo
Product colourBlack
AntennaYes
Antenna designExternal
WPS push buttonYes
Country of originChina
Receiver sensitivity11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M 11ac:-59dBm@867M

Power

Input current0.5 A
Output voltage5 V

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac operating systems supportedYes
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width150 mm
Depth230 mm
Height40 mm
Weight100 g

Packaging data

Package typeBox
Package width160 mm
Package depth245 mm
Package height50 mm
Package weight120 g

Packaging content

Cables includedUSB
Quick installation guideYes
ManualYes

Logistics data

Harmonized System (HS) code85176990
Master (outer) case width2700 mm
Master (outer) case length3470 mm
Master (outer) case height5130 mm
Master (outer) case gross weight6.1 kg
Products per master (outer) case100 pc(s)

Other features

Gain5 dBi
Detachable antenna(s)Yes
Antennas quantity2
