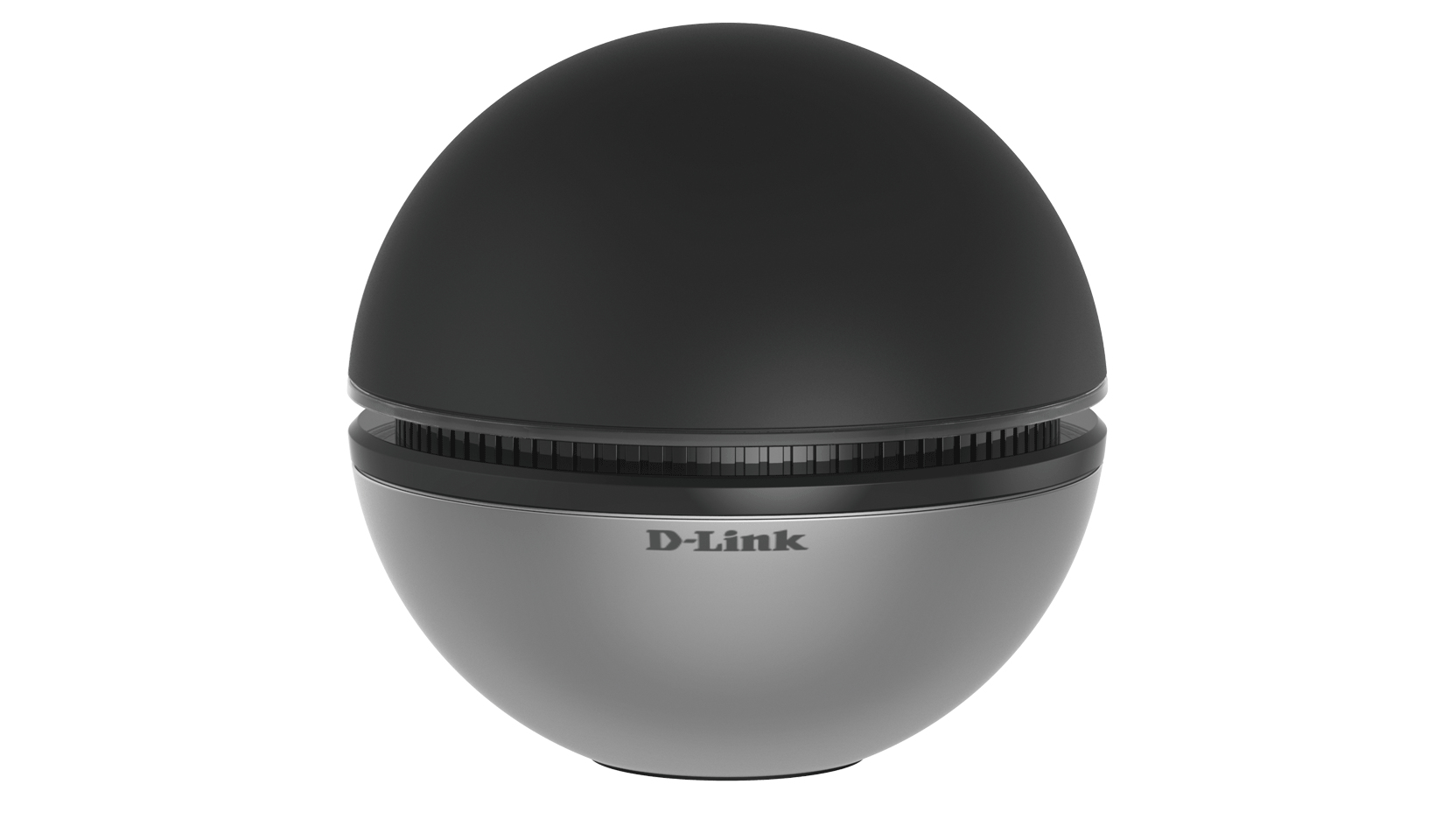

DWA-192 network card WLAN
Model DWA-192EAN 5054629982358
51 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityWireless
- Weight295 g
- ColourBlack, Silver
- Wi-FiYes
- InternalNo
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- Wireless
- Weight
- 295 g
- Colour
- Black, Silver
- Wi-Fi
- Yes
- Internal
- No
- Brand
- D-Link
- Category
- Network Card
- Model
- DWA-192
- Part number
- DWA-192
- EAN / UPC
- 5054629982358, 790069414695, 790069416644, 790069417832 +5 more
- Also known as
- D-Link DWA-192 network card WLAN
Specifications
51 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |

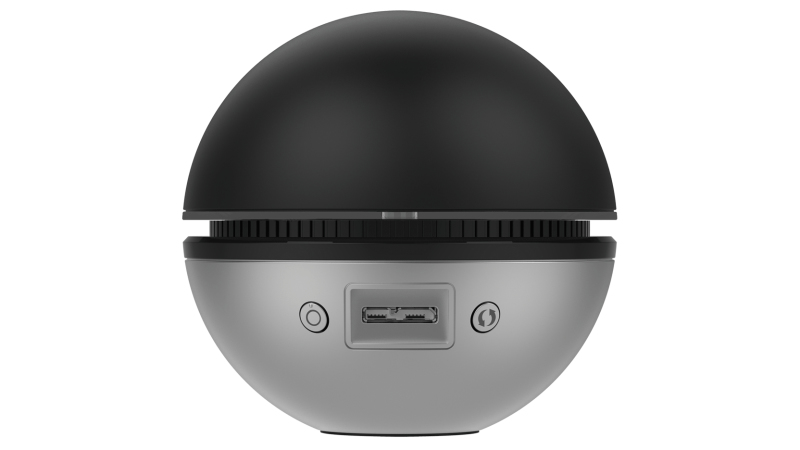

| Host interface | Micro-USB |
| Interface | WLAN |
| Ethernet LAN (RJ-45) ports | 0 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11g |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Security algorithms | WPA2, WPS, WPA |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Certification | FCC Class B, CE, IC, RCM, Wi-Fi |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power consumption | 880 mA |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Height | 80 mm |
| Weight | 295 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 103 mm |
| Package depth | 137 mm |
| Package height | 92.5 mm |
| Package weight | 420 g |

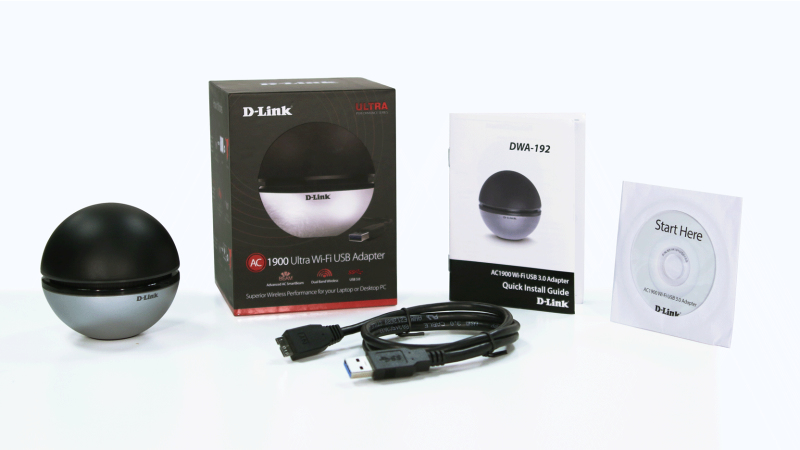

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 100 pc(s) |
| Master (outer) cases per pallet (sea) | 100 pc(s) |
| Pallet gross weight (air) | 493.5 kg |
| Pallet gross weight (sea) | 493.5 kg |
| Pallet height (air) | 192.5 cm |
| Pallet height (sea) | 192.5 cm |
| Products per pallet (air) | 1000 pc(s) |
| Products per pallet (sea) | 1000 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 4.75 kg |
| Shipping (inner) case height | 17.9 cm |
| Shipping (inner) case length | 48.9 cm |
| Shipping (inner) case net weight | 1.95 kg |
| Shipping (inner) case width | 22.9 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
