Product comparison · 2 network cards

StarTech.com Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Exp vs StarTech.com 1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card

Add a product
  • 29specifications compared
  • 20differ
  • 9identical
  • 28known for one product only

Key differences

  • Connectivity technology
    • Wireless
    • Wired
  • Host interface
    • PCI
    • PCI Express
  • Interface
    • WLAN / Bluetooth
    • Ethernet
  • PCI version
    • 3.0
    • 2.0
  • Maximum data transfer rate
    • 2400 Mbit/s
    • 2500 Mbit/s
  • Component for
    • PC/Laptop
    • PC/Server
  • Operating temperature (T-T)
    • 0 - 40 °C
    • 5 - 50 °C
  • Operating relative humidity (H-H)
    • 10 - 90%
    • 5 - 90%

Side by side

Differences highlightedShow differences only
57 specifications
A

StarTech.com

Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Exp

Model PAX2235-WIFI-6E-CARD

View product

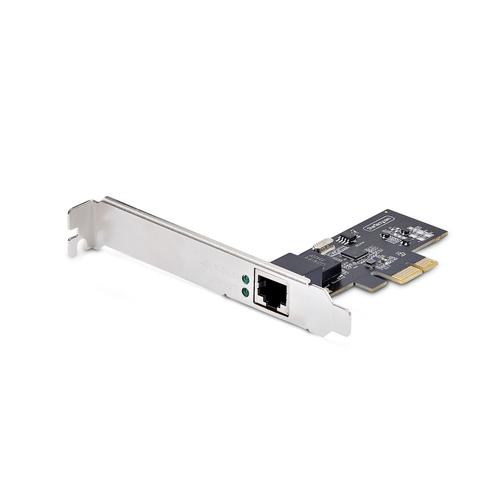

B

StarTech.com

1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card

Model PR12GI-NETWORK-CARD

View product
Ports & interfaces4 differ
Connectivity technologyDiffersWirelessWired
Host interfaceDiffersPCIPCI Express
InterfaceDiffersWLAN / BluetoothEthernet
PCI versionDiffers3.02.0
Ethernet LAN (RJ-45) portsKnown for one1
Network2 differ
Maximum data transfer rateDiffers2400 Mbit/s2500 Mbit/s
Networking standardsDiffersIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11nIEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wi-FiKnown for oneYes
Wi-Fi bandKnown for oneTri-band (2.4 GHz / 5 GHz / 6 GHz)
Frequency rangeKnown for one2.4 - 6 GHz
Wi-Fi standardsKnown for one802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supportedKnown for one574,2402 Mbit/s
ModulationKnown for one1024-QAM, OFDMA
Security algorithmsKnown for oneAES, WPA2, WPA3
Full duplexYesYes
BluetoothKnown for oneYes
Bluetooth versionKnown for one5.3
MU-MIMOKnown for oneYes
Ethernet LAN data ratesKnown for one10,100,1000,2500 Mbit/s
Wake-on-LAN readyKnown for oneYes
Auto MDIX IEEEKnown for oneYes
Auto-negotiationKnown for oneYes
Jumbo framesKnown for one9000
Jumbo frames supportKnown for oneYes
Design1 differ
InternalYesYes
Component forDiffersPC/LaptopPC/Server
Product colourBlackBlack
AntennaKnown for oneYes
Antenna designKnown for oneExternal
Antenna gain level (max)Known for one5 dBi
LED indicatorsYesYes
Mean time between failures (MTBF)Known for one50000 h
ChipsetKnown for oneIntel I225-V
System requirementsidentical
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 EnterpWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Linux operating systems supportedYesYes
Server operating systems supportedKnown for oneWindows Server 2019, Windows Server 2022
Operational conditions2 differ
Operating temperature (T-T)Differs0 - 40 °C5 - 50 °C
Storage temperature (T-T)-10 - 70 °C-10 - 70 °C
Operating relative humidity (H-H)Differs10 - 90%5 - 90%
Sustainabilityidentical
Sustainability complianceKnown for oneYes
Weight & dimensions4 differ
WidthDiffers62 mm89 mm
DepthDiffers120 mm121 mm
HeightDiffers18 mm15 mm
WeightDiffers200 g100 g
Packaging data3 differ
Package widthDiffers152 mm216 mm
Package depthDiffers141 mm150 mm
Package heightDiffers112 mm36 mm
Package weightKnown for one365 g
Packaging contentidentical
Mounting brackets includedYesYes
Quick installation guideYesYes
Technical detailsidentical
Compliance certificatesKnown for oneFederal Communications Commission (FCC)
Logistics data4 differ
Master (outer) case widthDiffers573 mm448 mm
Master (outer) case lengthDiffers481 mm379 mm
Master (outer) case heightDiffers307 mm329 mm
Products per master (outer) caseDiffers30 pc(s)40 pc(s)
Other featuresidentical
Bluetooth Low Energy (BLE)Known for oneYes
Cable lengthKnown for one1 m

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
