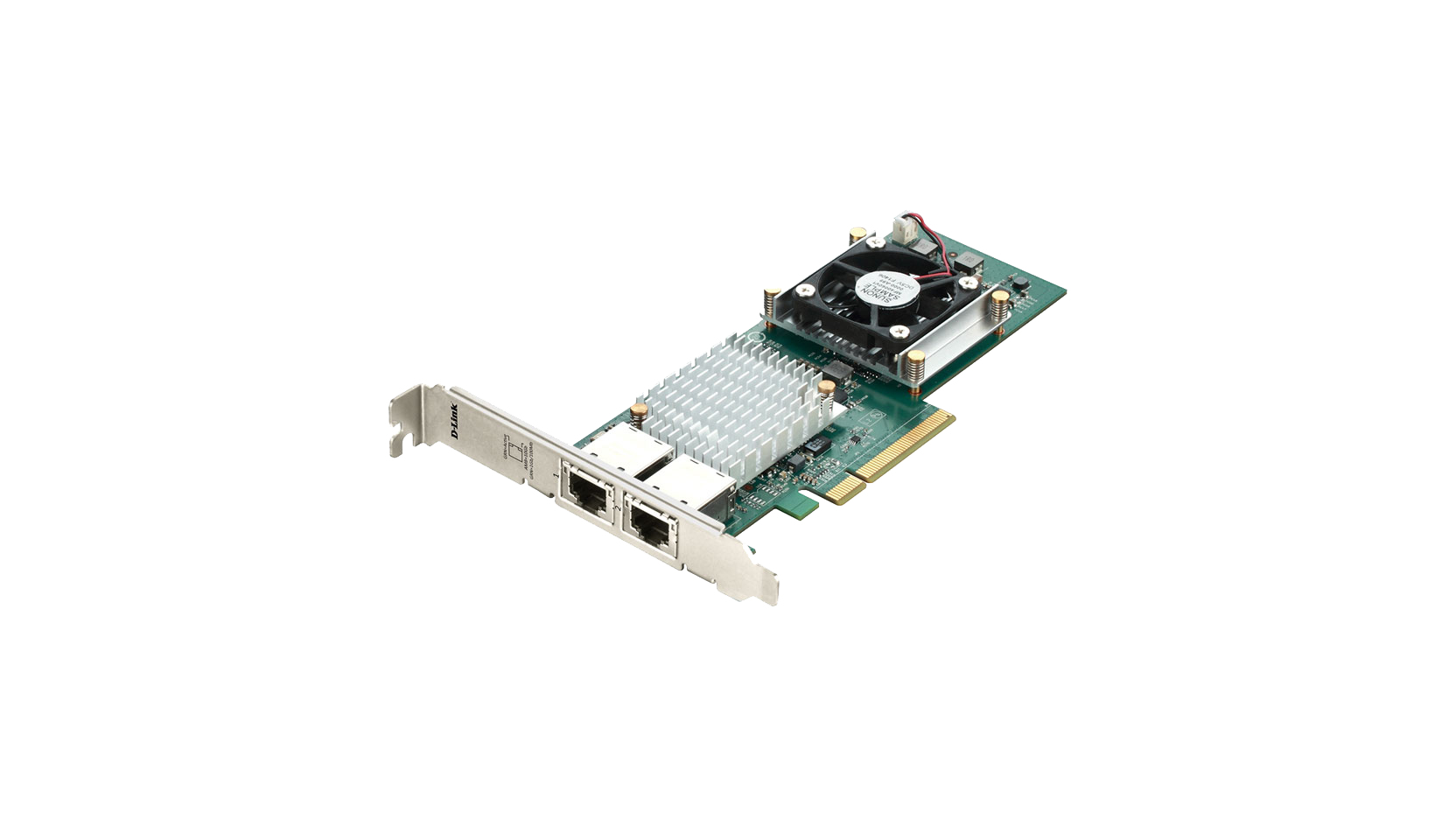

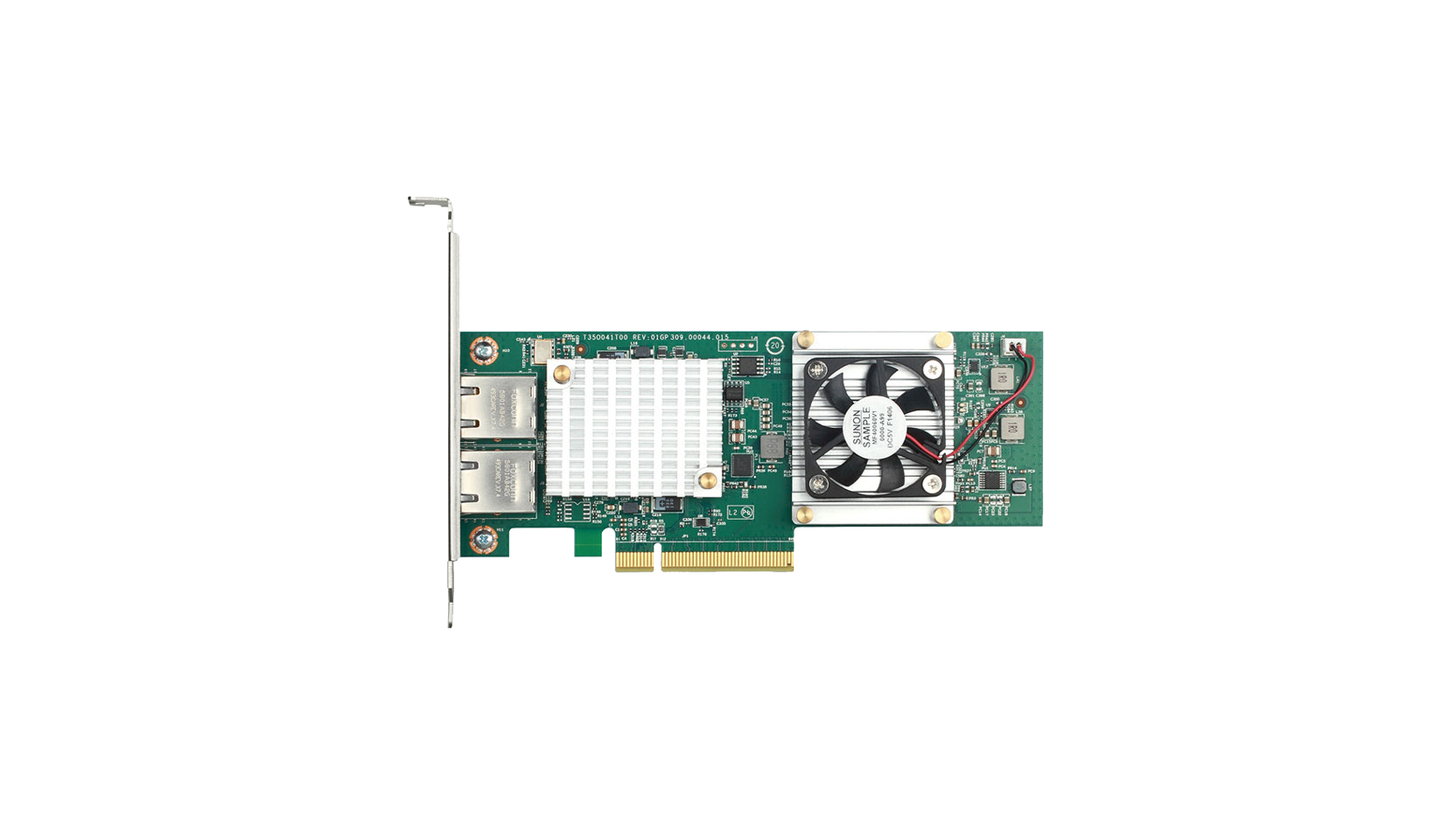

D-Link DXE-820T network card Internal Ethernet 10000 Mbit/s
D-Link

DXE-820T network card Internal Ethernet 10000 Mbit/s

Model DXE-820TEAN 790069413933

55 specifications
  • Speed10000 Mbit/s
  • ConnectivityWired
  • InternalYes
  • Output voltage3.3-12 V
  • Other operating systems supportedSolaris 11
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
10000 Mbit/s
Connectivity
Wired
Internal
Yes
Output voltage
3.3-12 V
Other operating systems supported
Solaris 11
Operating temperature (T-T)
0 - 40 °C
Brand
D-Link
Category
Network Card
Model
DXE-820T
Part number
DXE-820T
EAN / UPC
790069413933, 5057103059249
Also known as
D-Link DXE-820T network card Internal Ethernet 10000 Mbit/s

Specifications

55 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports2
PCI version2.0

Network

Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface type10 Gigabit
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Wi-FiNo
Full duplexYes
Jumbo frames9000
Jumbo frames supportYes
Quality of Service (QoS) supportYes
VLAN taggingYes
iSCSI supportYes

Design

InternalYes
ChipsetRISC
LED indicatorsYes
CertificationCE FCC C-Tick

Power

Output voltage3.3-12 V
Power consumption (typical)23.38 W

System requirements

Other operating systems supportedSolaris 11
Server operating systems supportedWindows Server 2008, Windows Server 2008 R2 x64, Windows Server 2012

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width181 mm
Depth21.6 mm
Height120.9 mm

Packaging data

Package width183 mm
Package depth190 mm
Package height32 mm
Package weight251 g

Logistics data

Master (outer) cases per pallet (air)36 pc(s)
Master (outer) cases per pallet (sea)36 pc(s)
Pallet gross weight (air)427.3 kg
Pallet gross weight (sea)427.3 kg
Pallet height (air)191.5 cm
Pallet height (sea)191.5 cm
Products per pallet (air)1440 pc(s)
Products per pallet (sea)1440 pc(s)
Products per shipping (inner) case40 pc(s)
Shipping (inner) case gross weight11.2 kg
Shipping (inner) case height44.5 cm
Shipping (inner) case length39.3 cm
Shipping (inner) case net weight10 kg
Shipping (inner) case width35.9 cm
Pallet gross width120 cm
Pallet gross length110 cm

Other features

Buffer size96 KB
Flow control supportYes
Management protocolsSNMP
