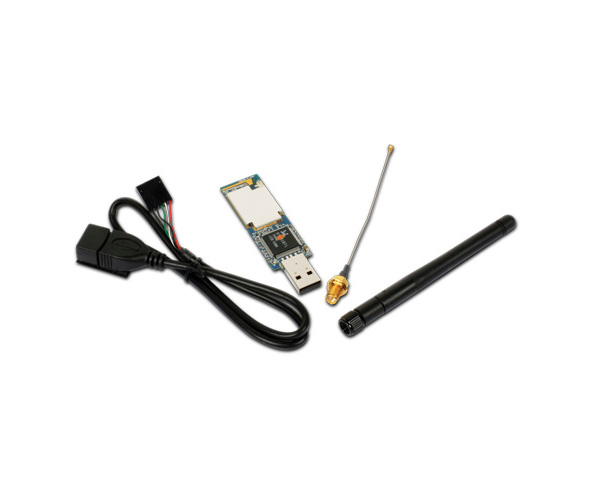

Shuttle Wireless LAN Module

Shuttle Wireless LAN Module

Model Wireless LAN ModulePart no. PN20EAN 811686005179

24 specifications
  • Speed54 Mbit/s
  • ConnectivityWireless
  • Weight3 g
  • InternalNo
  • Compatible operating systemsWindows 2000/XP/Vista, Linux
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Speed
54 Mbit/s
Connectivity
Wireless
Weight
3 g
Internal
No
Compatible operating systems
Windows 2000/XP/Vista, Linux
Operating temperature (T-T)
0 - 50 °C
Brand
Shuttle
Category
Network Card
Model
Wireless LAN Module
Part number
PN20
EAN / UPC
811686005179
Also known as
Shuttle Wireless LAN Module 54 Mbit/s

Specifications

24 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB

Network

Maximum data transfer rate54 Mbit/s
Ethernet LANYes
Bandwidth2.400 GHz

Design

InternalNo
Antenna typeExternal Antenna, designed for Shuttle XPC
ChipsetRealtek RTL8187, RF Chip: Realtek RTL8225
CertificationFCC, CE

System requirements

Compatible operating systemsWindows 2000/XP/Vista, Linux

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 80 °C

Weight & dimensions

Width20 mm
Depth78 mm
Height4 mm
Weight3 g

Other features

Compliance industry standardsWiFi IEEE 802.11b/g
Dimensions (WxDxH)20 x 78 x 4 mm
Supported data transfer rates6, 9, 12, 18, 24, 36, 48, 54
Supported protocols64/128 bit WEP / WPA / WPA2
Wireless connectionYes
Outdoor range400 m
Indoor range100 m
I/O portsUSB2.0 Interface, internal connector for Shuttle XPC
