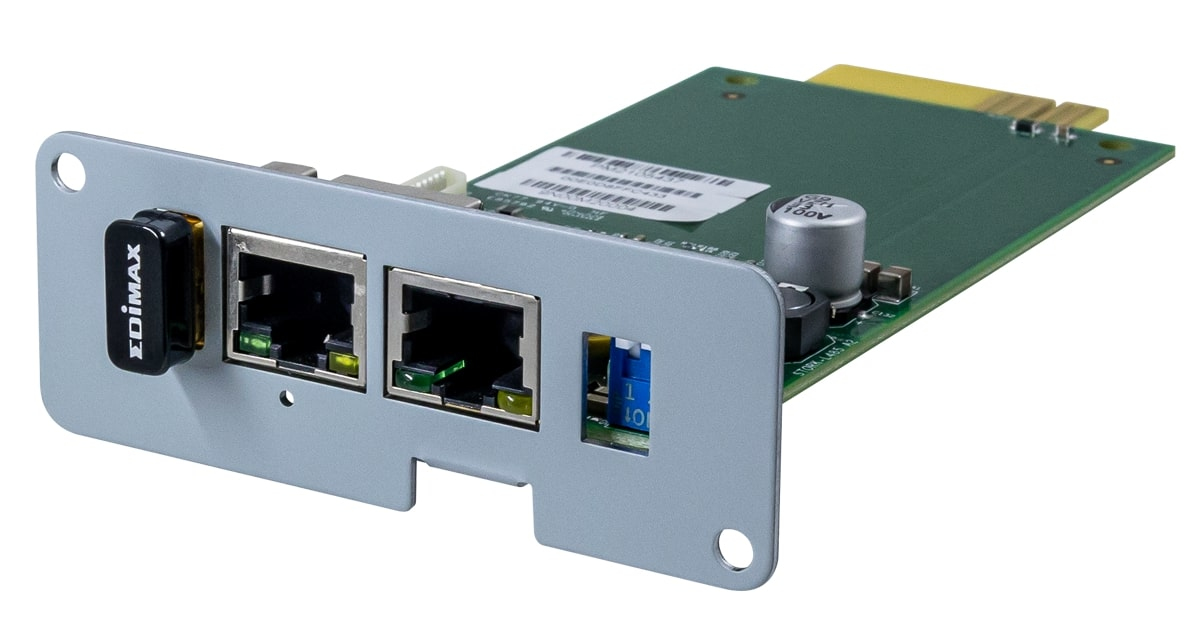

Legrand Network interface Built-in + WiFi Dongle

Network interface Built-in + WiFi Dongle

Model 311059EAN 3414972227070

26 specifications

Speed1000 Mbit/s
ConnectivityWired
Weight69 g
InternalYes
Output voltage5.5 - 40 V
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Speed: 1000 Mbit/s
Connectivity: Wired
Weight: 69 g
Internal: Yes
Output voltage: 5.5 - 40 V
Operating temperature (T-T): 0 - 40 °C

Brand: Legrand
Category: Network Card
Model: 311059
Part number: 311059
EAN / UPC: 3414972227070
Also known as: Legrand Network interface Built-in + WiFi Dongle

Specifications

26 specifications in 8 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
USB ports quantity	2

Network

Specification	Value
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6, DHCP, DNS, HTTP, HTTPS, SSH, NTP, SMTP, SNMP, MODBUS TCP, Wake on LAN, UPnP, RADIUS

Design

Specification	Value
Internal	Yes
Component for	Uninterruptible power supply (UPS)
LED indicators	Error

Power

Specification	Value
Output voltage	5.5 - 40 V
Power consumption (typical)	3 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	20 - 95%

Weight & dimensions

Specification	Value
Width	68 mm
Depth	133 mm
Height	43 mm
Weight	69 g

Packaging content

Specification	Value
Mounting brackets included	Yes
Quick installation guide	Yes

Other features

Specification	Value
Processor frequency	180 MHz
Processor architecture	ARM9
Flash memory	8 MB
