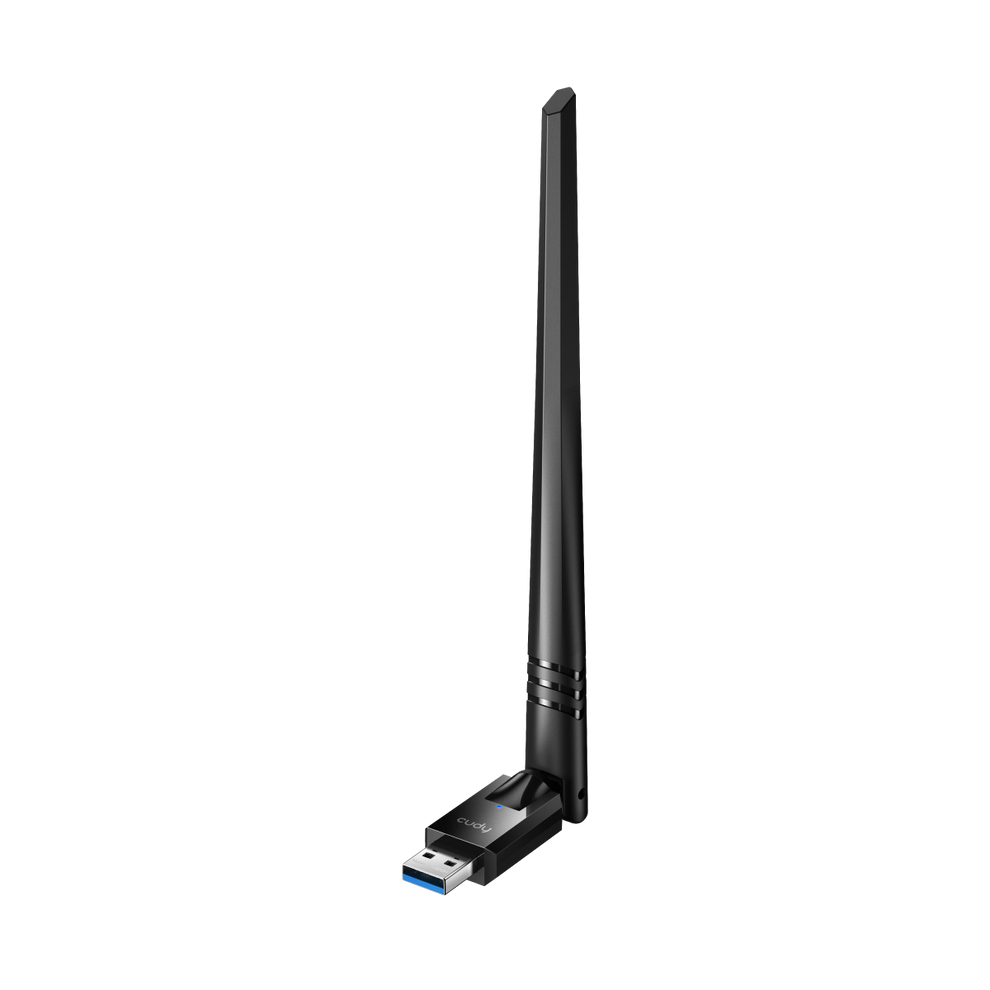

AX900 High Gain Wi-Fi 6 Bluetooth 5.4 USB Adapter, WU900H 1.0
Model AX900 High Gain Wi-Fi 6 Bluetooth 5.4 USB Adapter, WU900H 1.0Part no. WU900H 1.0EAN 6971690795108
39 specifications
- Speed600 Mbit/s
- ConnectivityWireless
- Weight18.8 g
- ColourBlack
- InternalNo
- Linux operating systems supportedYes
Overview
- Speed
- 600 Mbit/s
- Connectivity
- Wireless
- Weight
- 18.8 g
- Colour
- Black
- Internal
- No
- Linux operating systems supported
- Yes
- Brand
- Cudy
- Category
- Network Card
- Model
- AX900 High Gain Wi-Fi 6 Bluetooth 5.4 USB Adapter, WU900H 1.0
- Part number
- WU900H 1.0
- EAN / UPC
- 6971690795108
- Also known as
- Cudy AX900 High Gain Wi-Fi 6 Bluetooth 5.4 USB Adapter, WU900H 1.0 WLAN / Bluetooth 600 Mbit/s
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN / Bluetooth |
| USB connector form factor | Straight |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 600,286 Mbit/s |
| Spread spectrum method | OFDMA |
| Modulation | 1024-QAM |
| Security algorithms | WPA2, WPA |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| LED indicators | Yes, System |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222 mm |
| Depth | 20 mm |
| Height | 15 mm |
| Weight | 18.8 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 80 mm |
| Package depth | 22 mm |
| Package height | 200 mm |
| Package weight | 62.3 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
