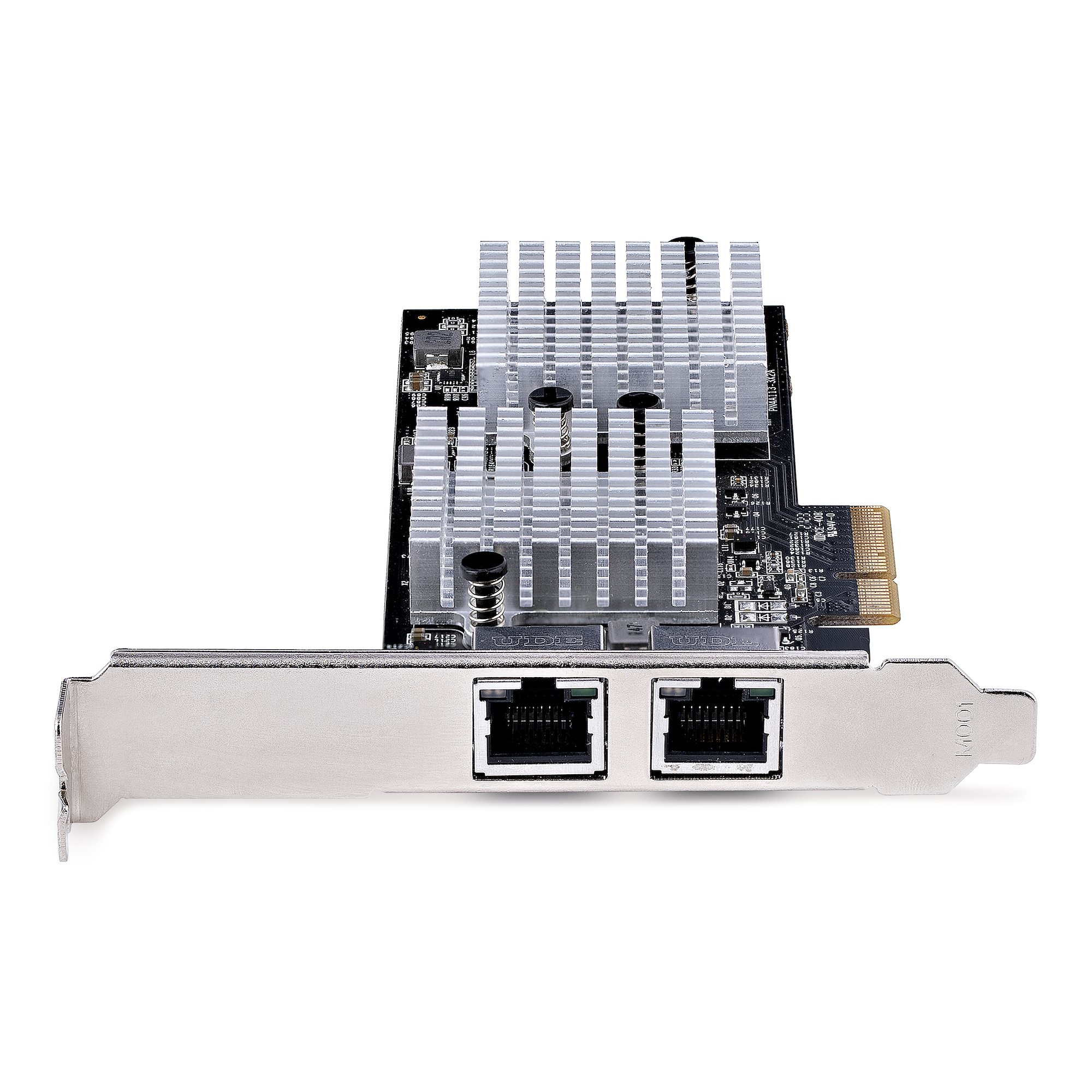

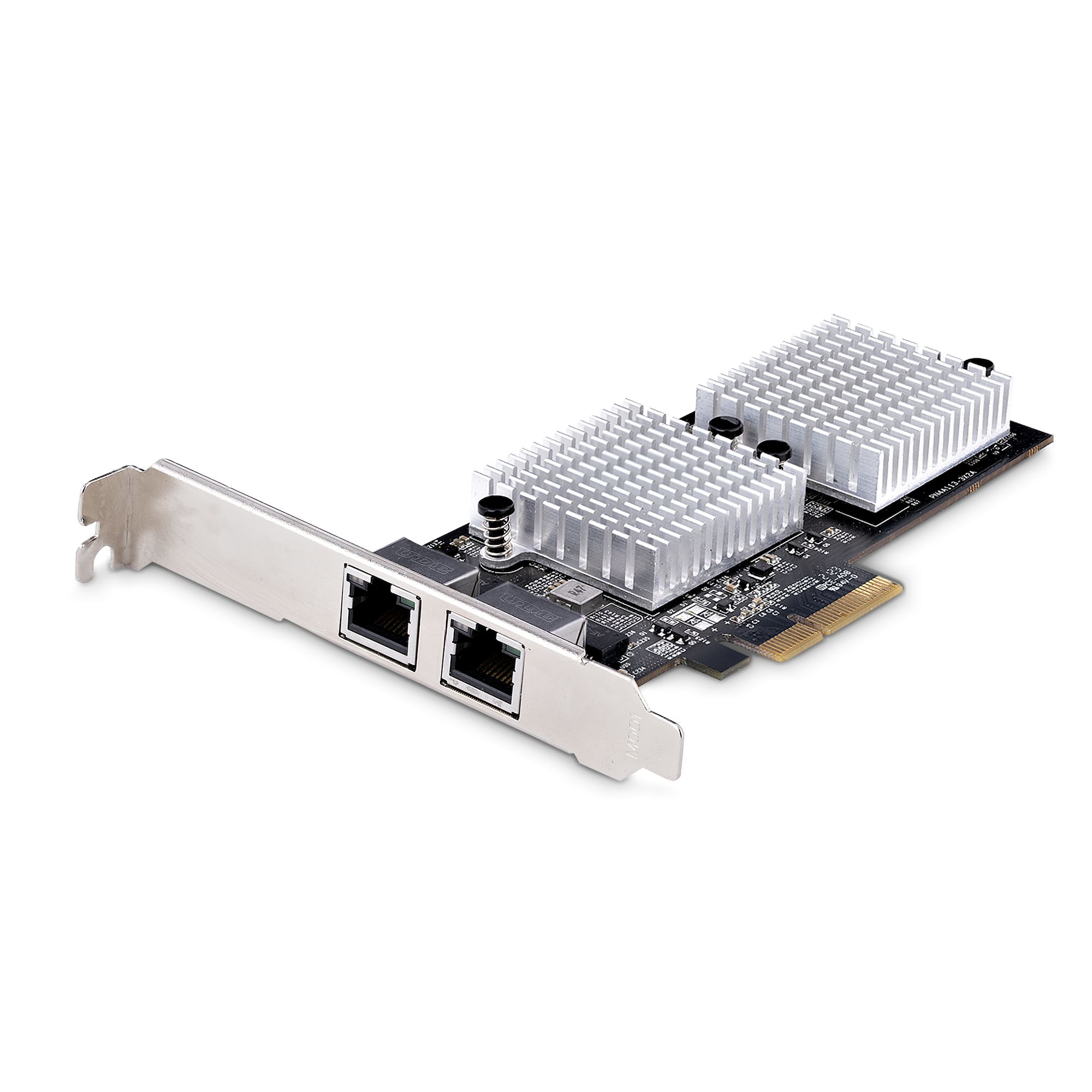

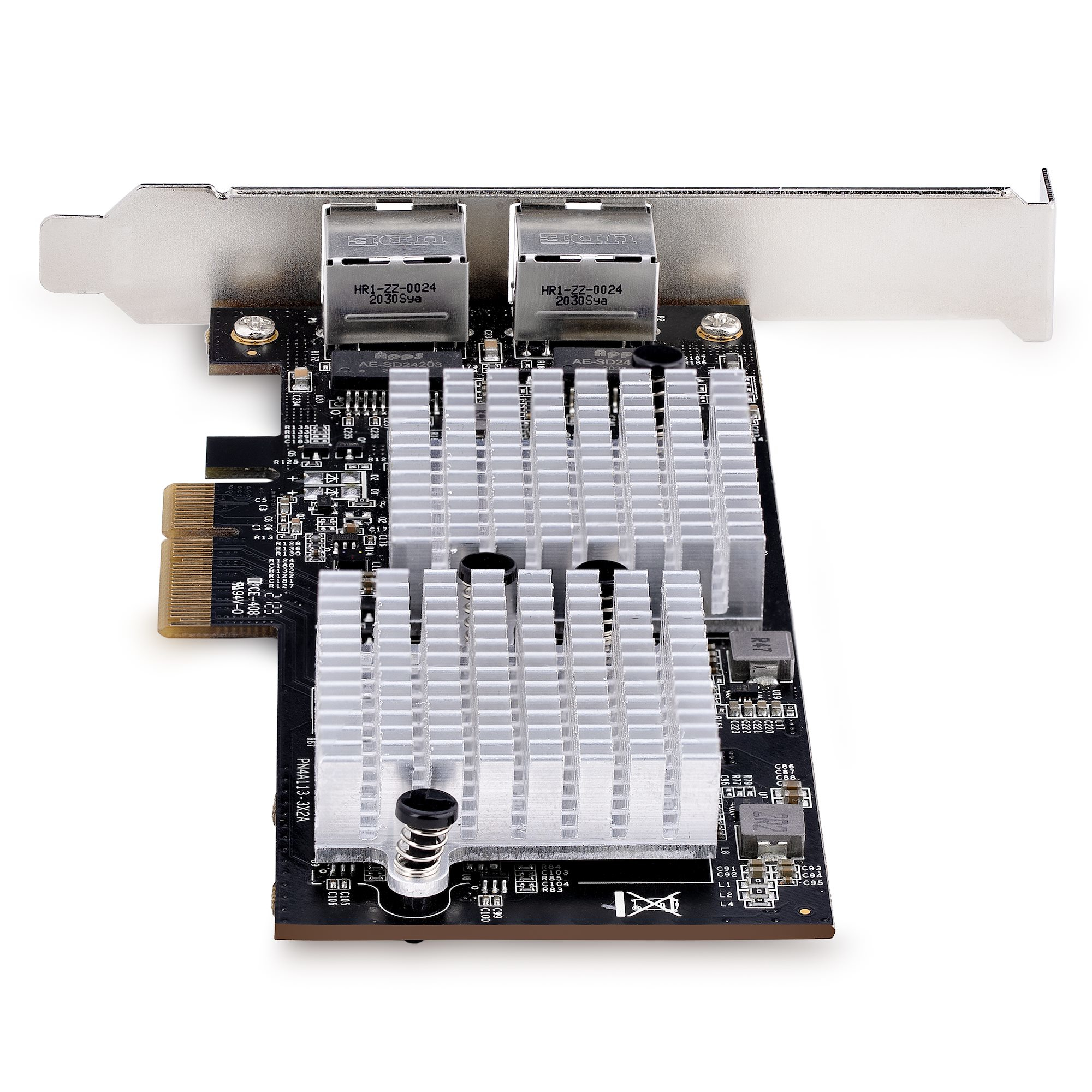

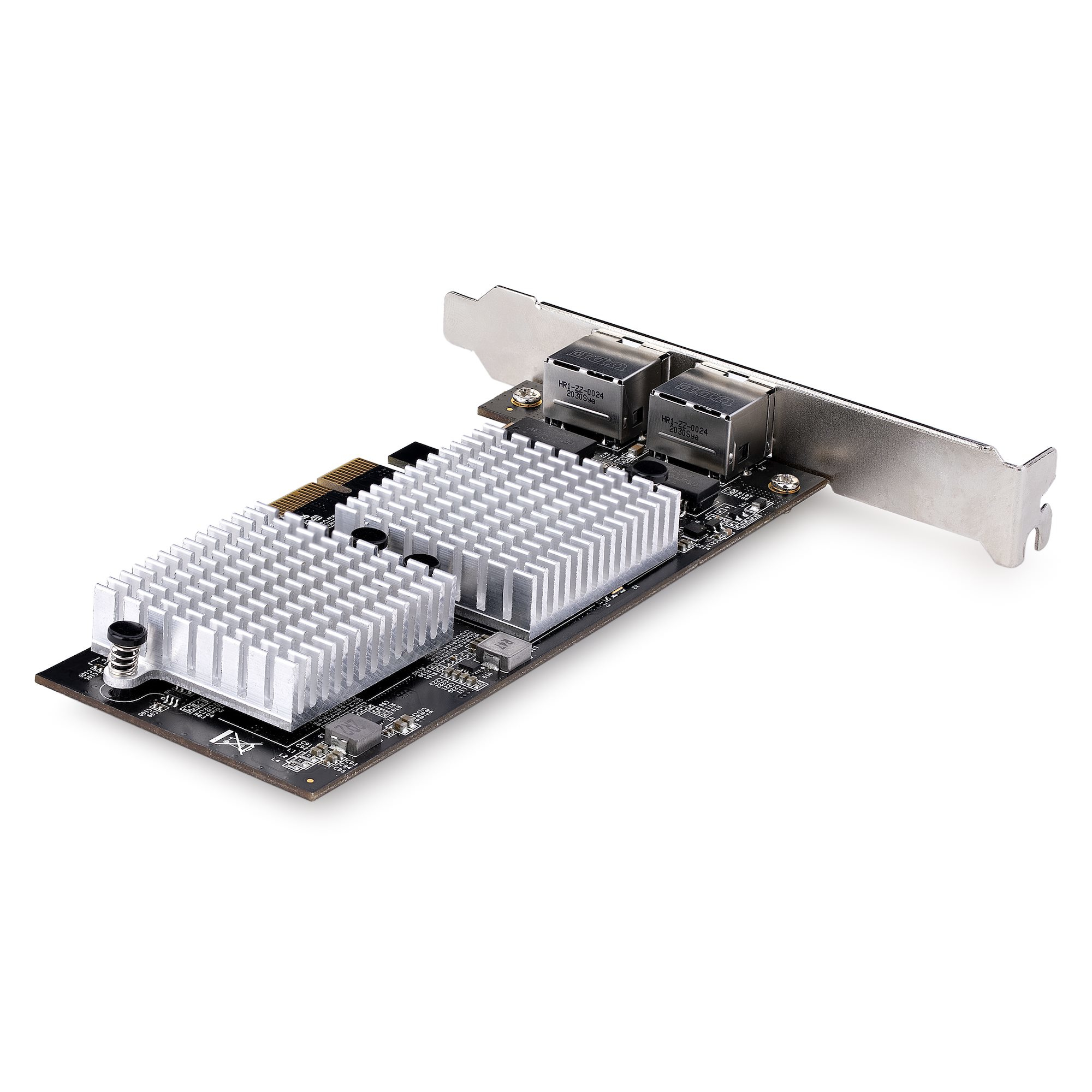

2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card
Model ST10GSPEXNDP2EAN 065030897693
46 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight116 g
- ColourBlack
- InternalYes
- Operating temperature (T-T)5 - 50 °C
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 116 g
- Colour
- Black
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST10GSPEXNDP2
- Part number
- ST10GSPEXNDP2
- EAN / UPC
- 065030897693
- Also known as
- StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card
Specifications
46 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
| Maximum operating distance | 100 m |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Black |
| Chipset | Marvell AQC113CS |
| LED indicators | Activity, Link, Status |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Ent |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 20 mm |
| Depth | 145 mm |
| Height | 65 mm |
| Weight | 116 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 148 mm |
| Package depth | 215 mm |
| Package height | 36 mm |
| Package weight | 208 g |
Packaging content
| Specification | Value |
|---|---|

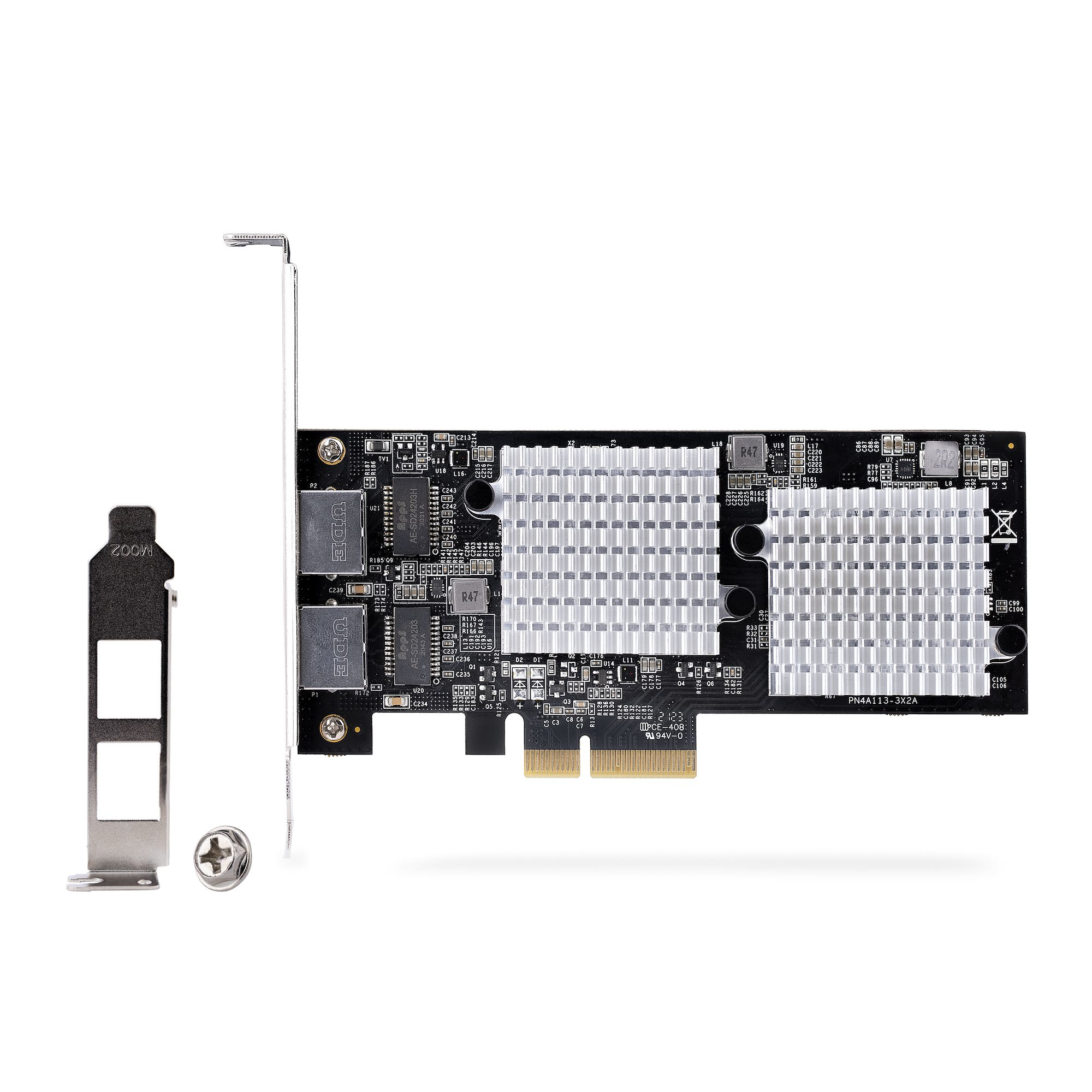

| Mounting brackets included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 440 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 315 mm |
| Products per master (outer) case | 40 pc(s) |
