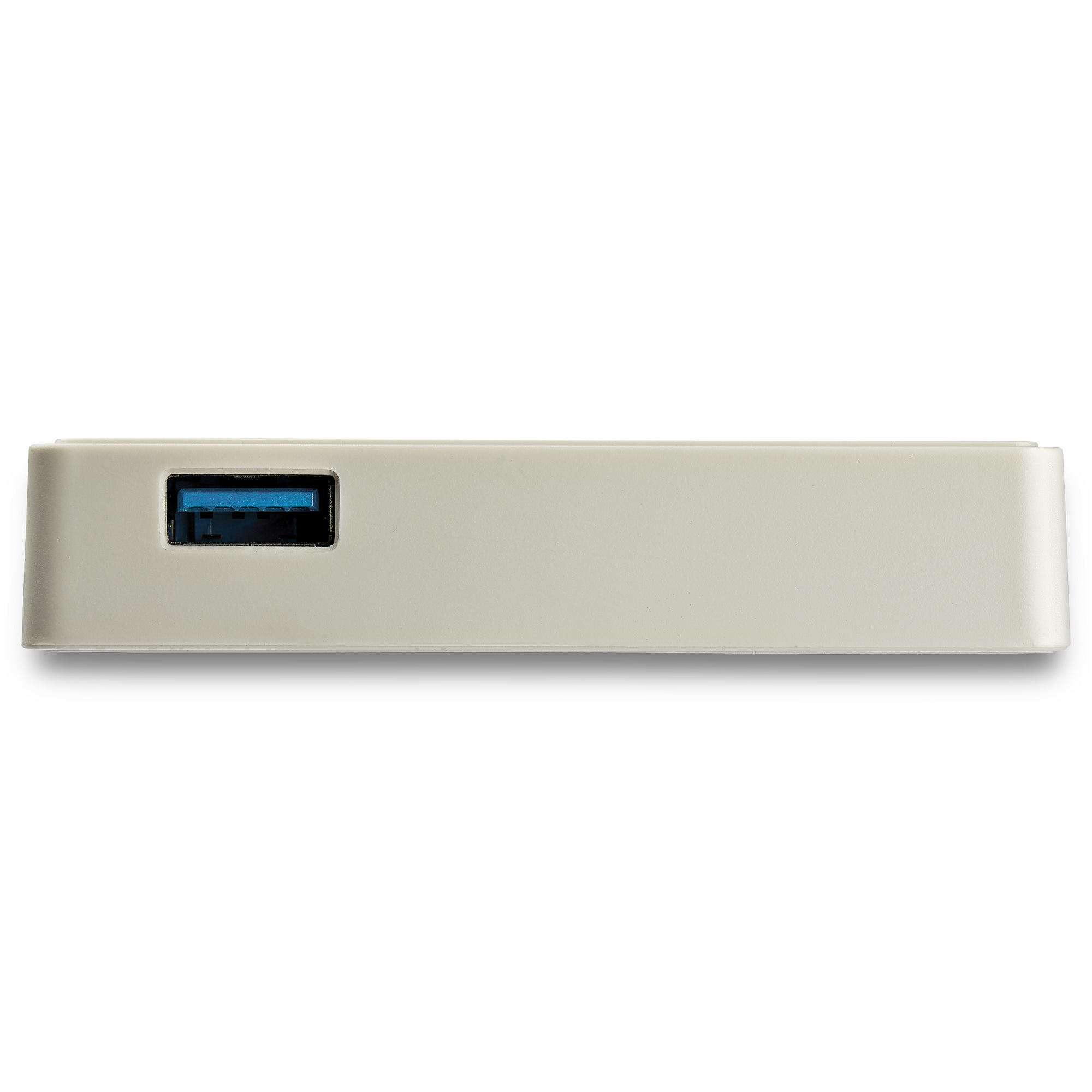

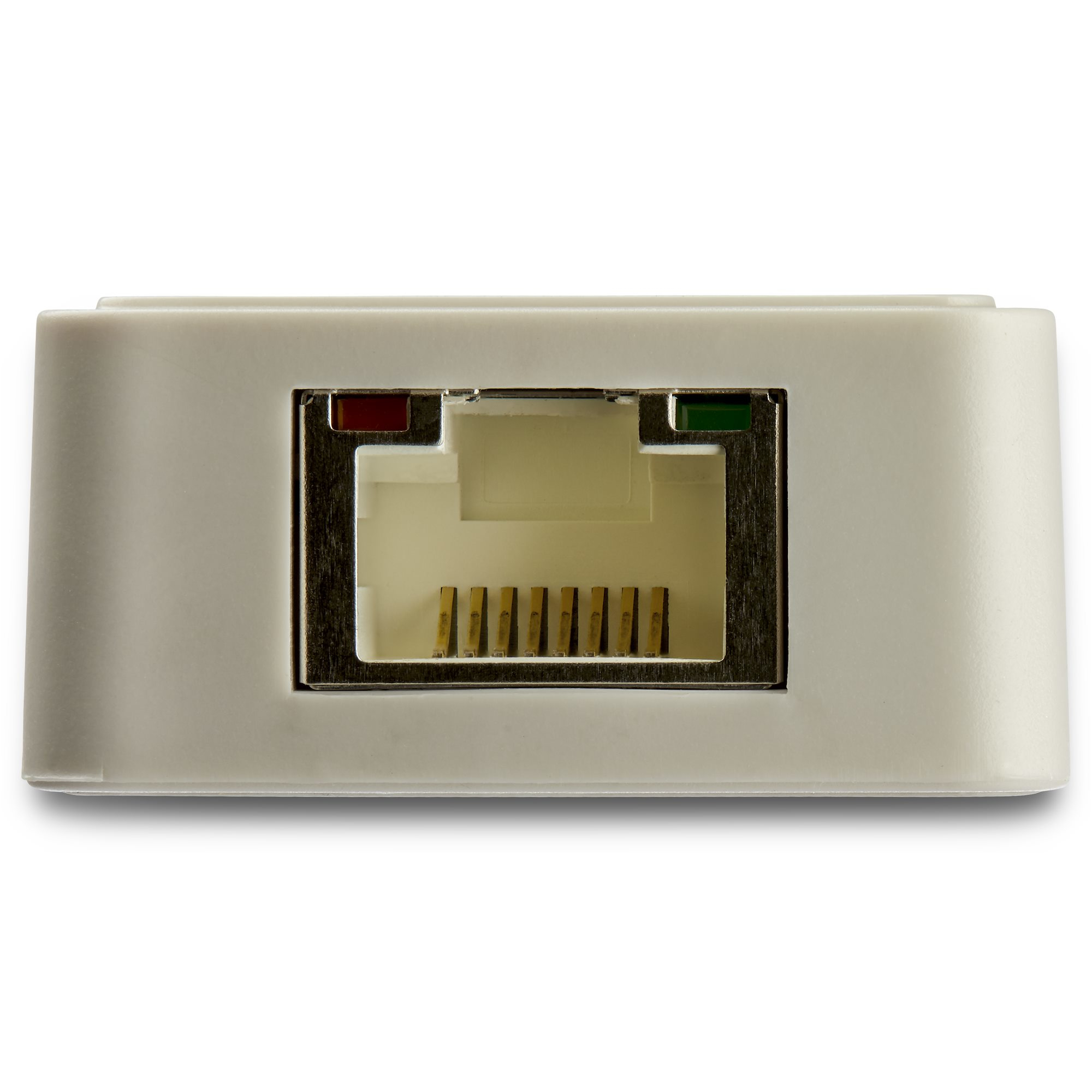

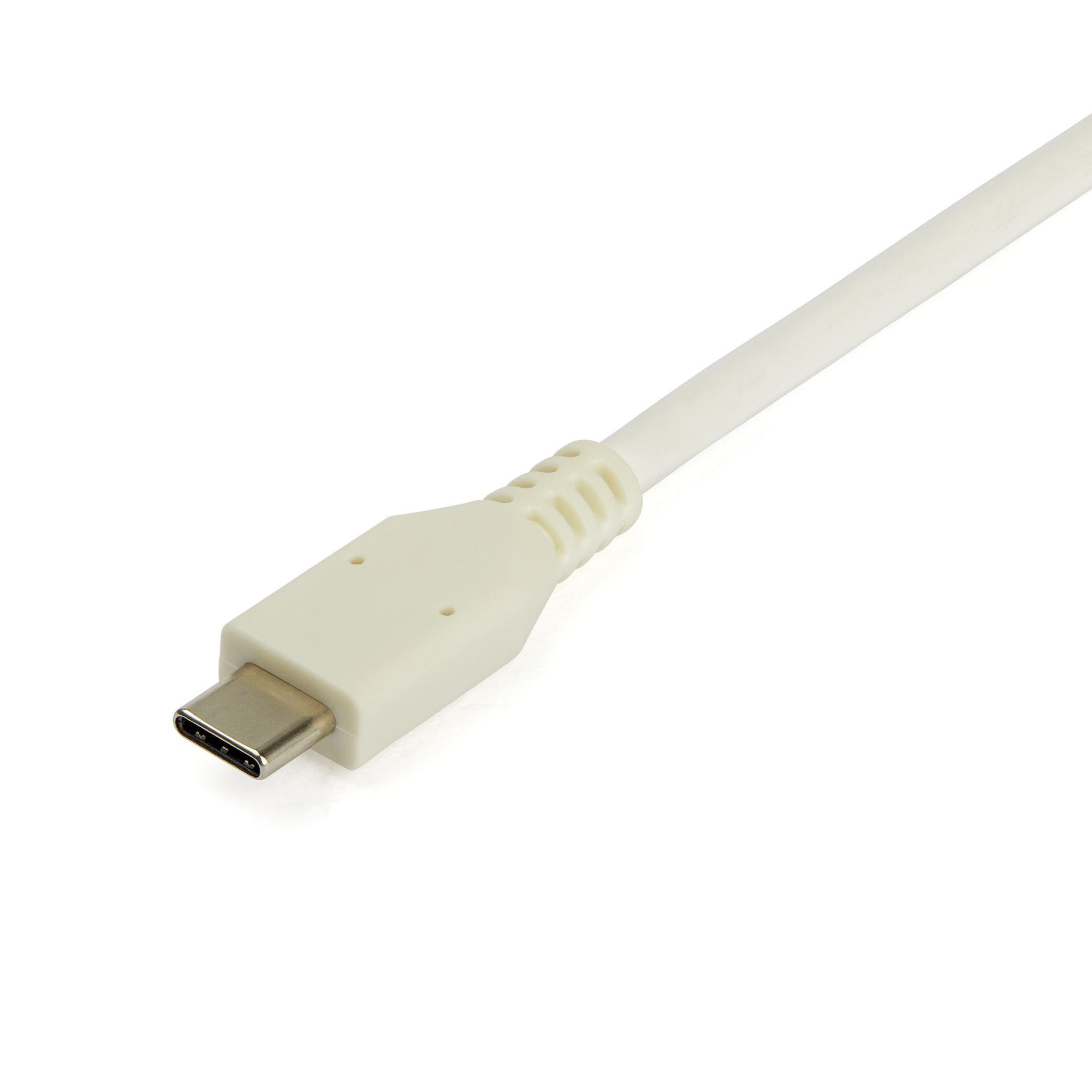

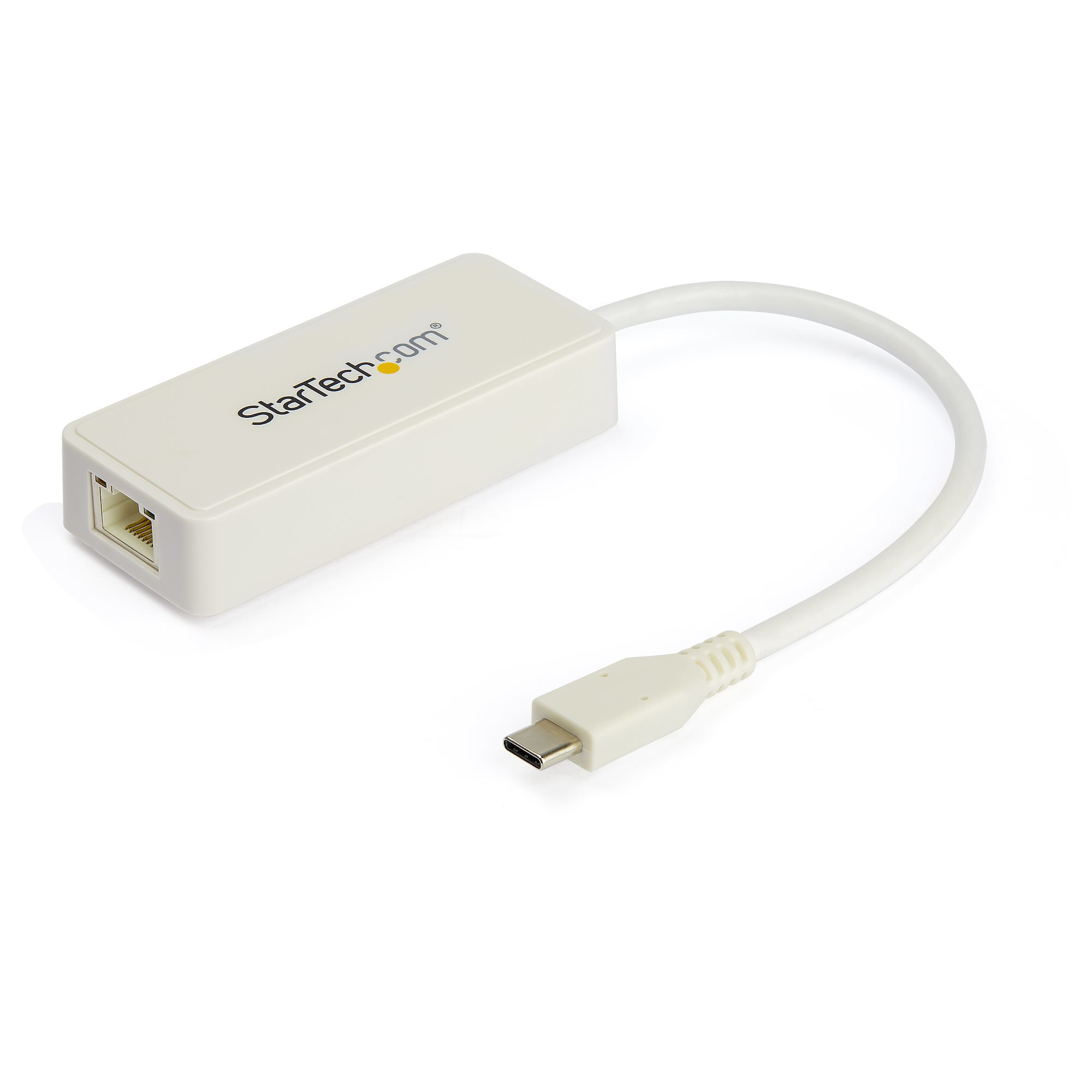

USB C to Gigabit Ethernet Adapter w/USB A Port - White 1Gbps NIC USB 3.0/USB 3.1 Type C Network Adapter - 1GbE USB-C RJ45/LAN TB3 Compatible Window
Model US1GC301AUWEAN 065030882941
47 specifications
- Speed5000 Mbit/s
- ConnectivityWired
- Weight38 g
- ColourWhite
- InternalNo
- Linux operating systems supportedYes
Overview
- Speed
- 5000 Mbit/s
- Connectivity
- Wired
- Weight
- 38 g
- Colour
- White
- Internal
- No
- Linux operating systems supported
- Yes
- Brand
- StarTech.com
- Category
- Network Card
- Model
- US1GC301AUW
- Part number
- US1GC301AUW
- EAN / UPC
- 065030882941
- Also known as
- StarTech.com USB C to Gigabit Ethernet Adapter w/USB A Port - White 1Gbps NIC USB 3.0/USB 3.1 Type C Network Adapter - 1GbE USB-C RJ45/LAN TB3 Compatible Window
Specifications
47 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | White |
| Chipset | Realtek RTL8153, VLI VL817 |
| LED indicators | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 275 mm |
| Height | 17 mm |
| Weight | 38 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 170 mm |
| Package height | 31 mm |
| Package weight | 100 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 322 mm |
| Master (outer) case length | 592 mm |
| Master (outer) case height | 364 mm |
| Products per master (outer) case | 80 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | Plastic |
| Cable length | 0.203 m |
