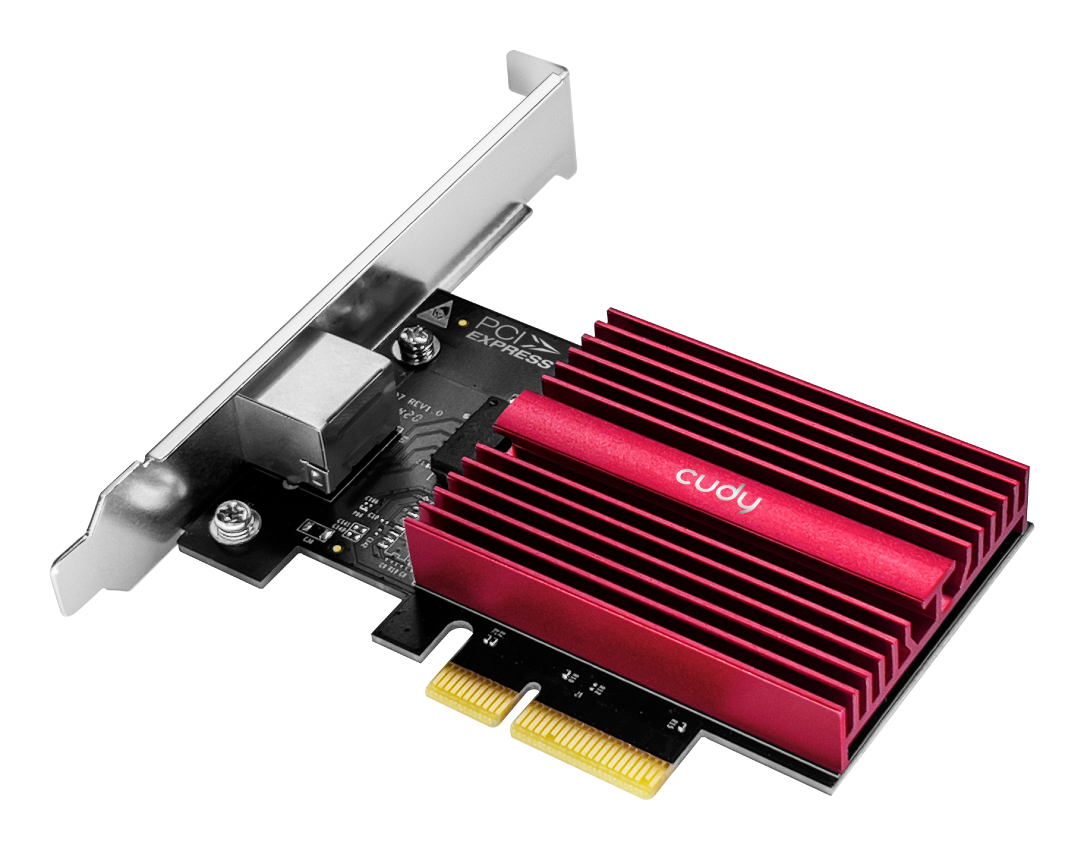

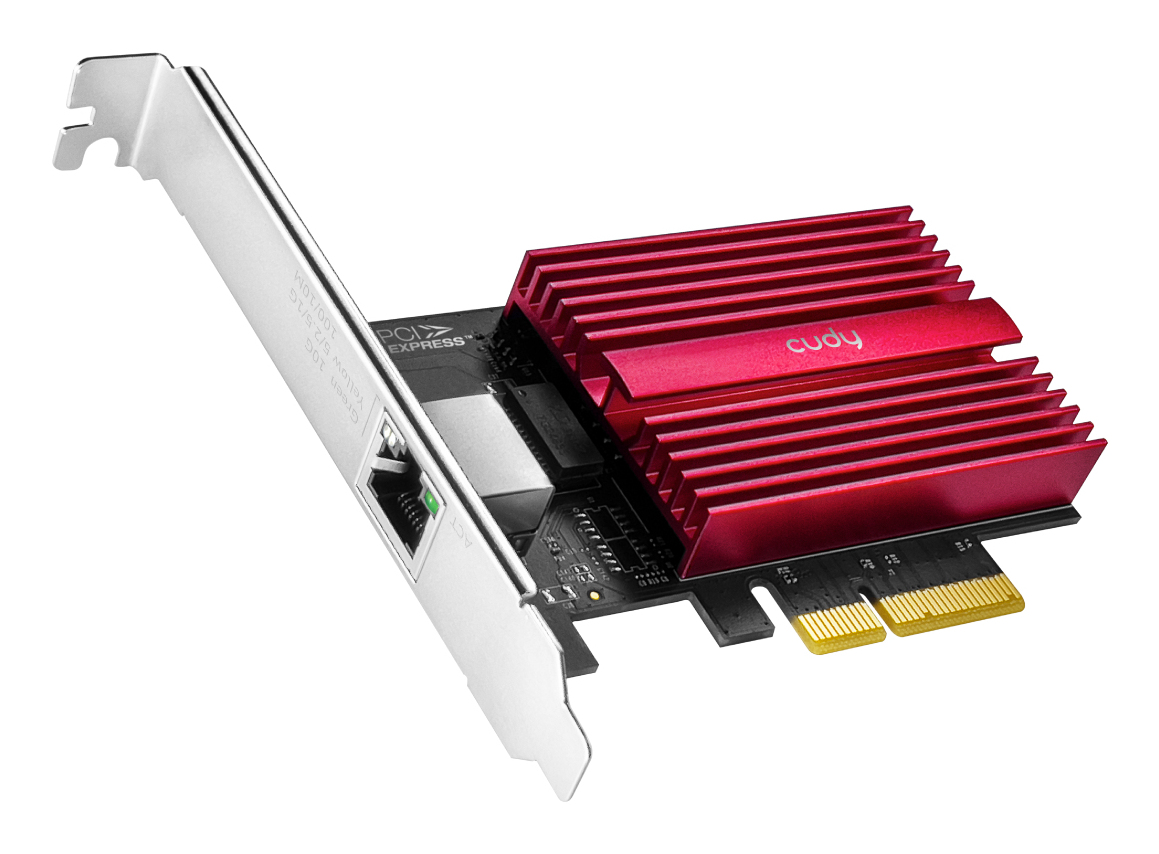

PE10G network card Internal Ethernet 10000 Mbit/s
Model PE10GEAN 6971690790523
46 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight84.5 g
- ColourRed
- InternalYes
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 84.5 g
- Colour
- Red
- Internal
- Yes
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- Cudy
- Category
- Network Card
- Model
- PE10G
- Part number
- PE10G
- EAN / UPC
- 6971690790523
- Also known as
- Cudy PE10G network card Internal Ethernet 10000 Mbit/s
Specifications
46 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 0 |
| PCI version | 3.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Mobile network generation | Not supported |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Red |
| LED indicators | Activity, Link, Speed |
| Country of origin | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
| Other operating systems supported | Linux |
| Server operating systems supported | Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 66 mm |
| Height | 15 mm |
| Weight | 84.5 g |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | No |
| Package width | 220 mm |
| Package depth | 144 mm |
| Package height | 35 mm |
| Package weight | 247 g |

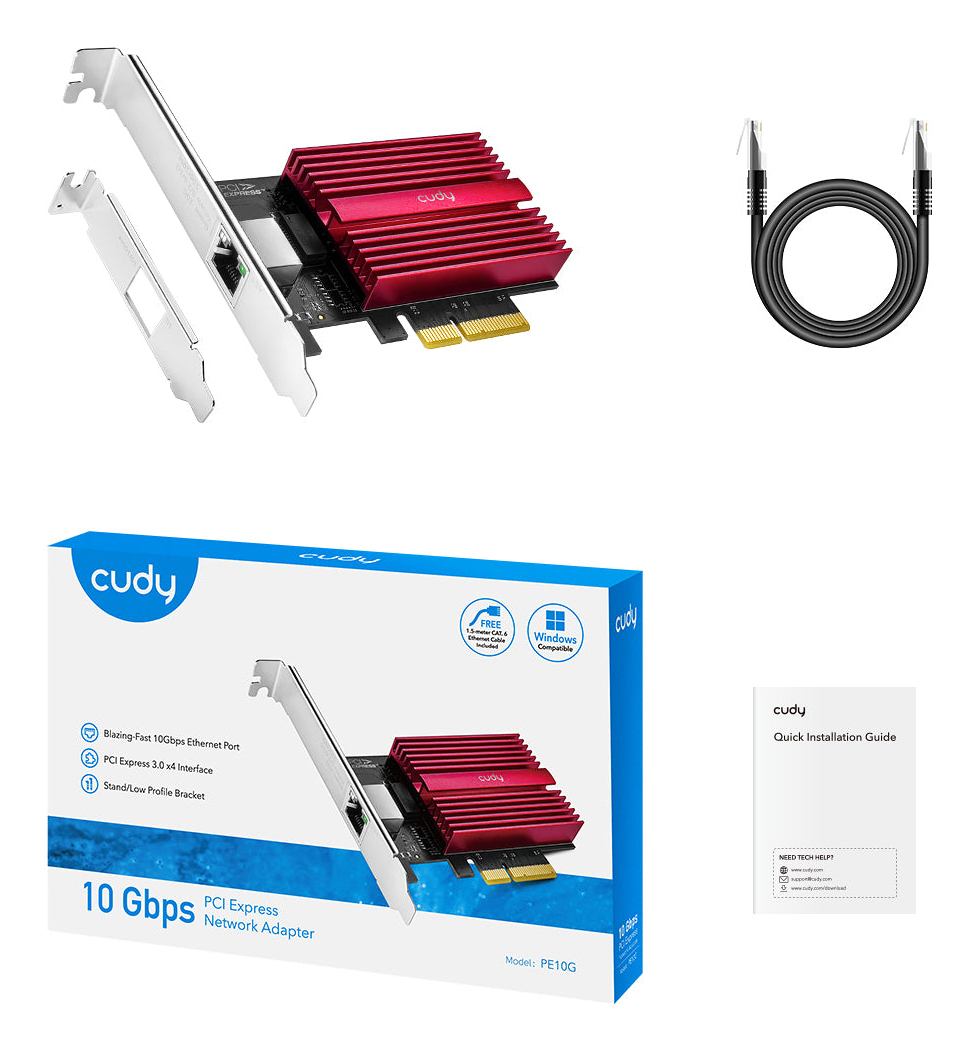

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Mounting brackets included | Yes |
| Bluetooth header cable | No |
| Resource CD | No |
| Quick installation guide | Yes |
| Manual | Yes |
| Packaging content | PE10G Low-Profile Bracket Installation Guide Ethernet Cable |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Warranty period | 1 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Quick start guide | Yes |
