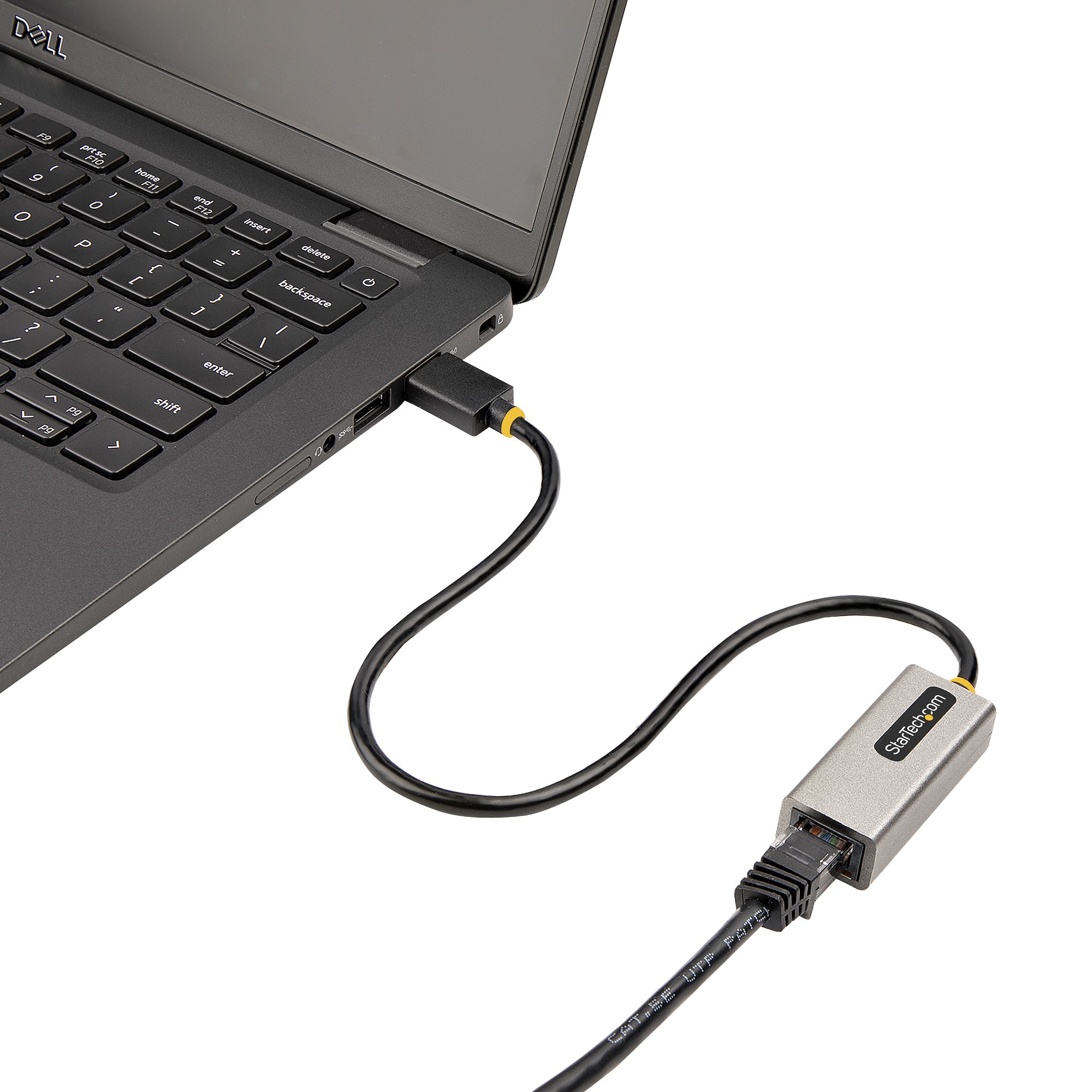

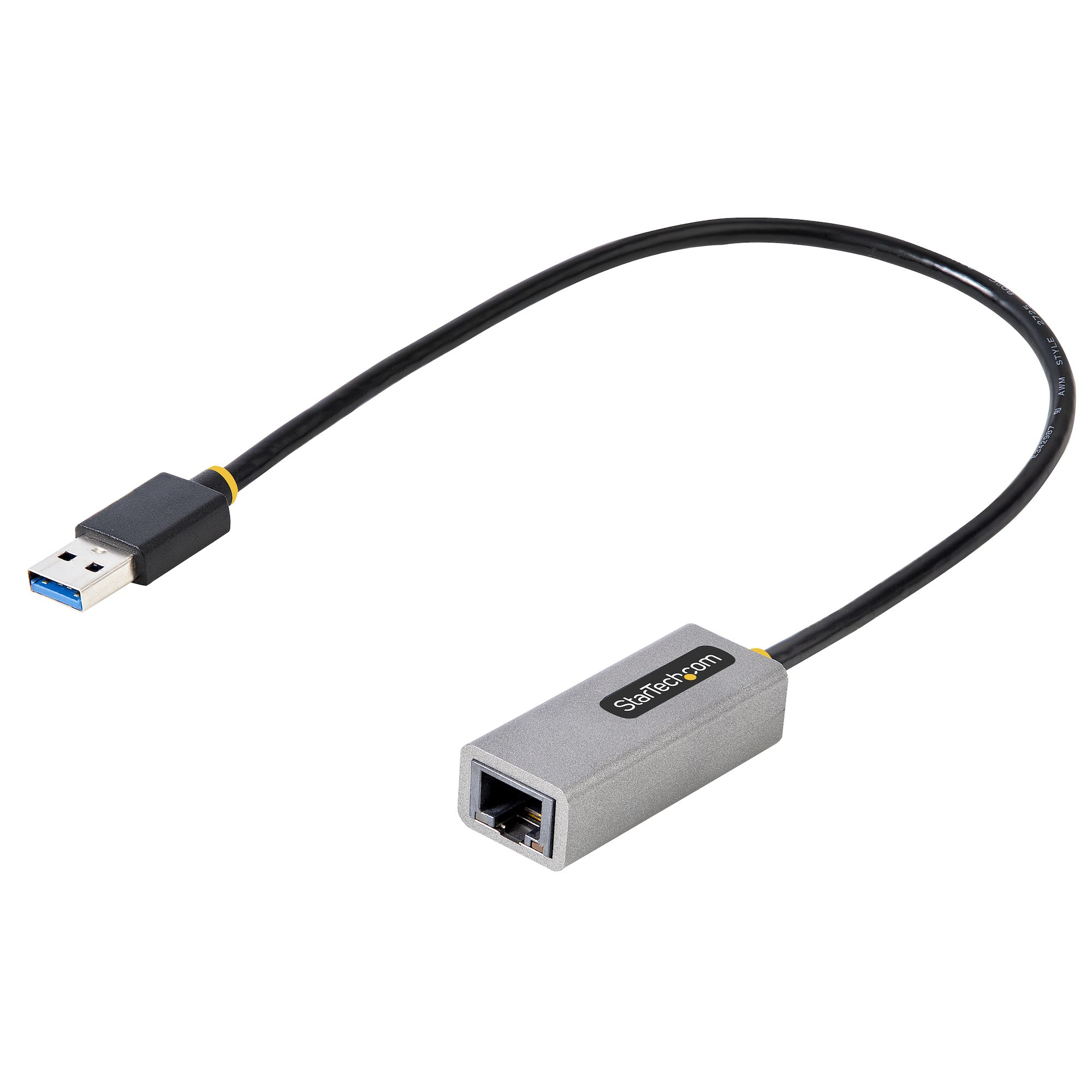

USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE)
11in Attached C
Model USB31000S2EAN 065030893664
47 specifications
- Speed5000 Mbit/s
- ConnectivityWired
- Weight27 g
- ColourGrey
- InternalNo
- USB poweredYes
Overview
- Speed
- 5000 Mbit/s
- Connectivity
- Wired
- Weight
- 27 g
- Colour
- Grey
- Internal
- No
- USB powered
- Yes
- Brand
- StarTech.com
- Category
- Network Card
- Model
- USB31000S2
- Part number
- USB31000S2
- EAN / UPC
- 065030893664
- Also known as
- StarTech.com USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE), 11in Attached C
Specifications
47 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Grey |
| Chipset | Realtek RTL8153 |
| LED indicators | Activity, Link |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 400 mm |
| Height | 15 mm |
| Weight | 27 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 123 mm |
| Package depth | 183 mm |
| Package height | 18 mm |
| Package weight | 32 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 200 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | Plastic |
| Cable length | 0.3 m |
