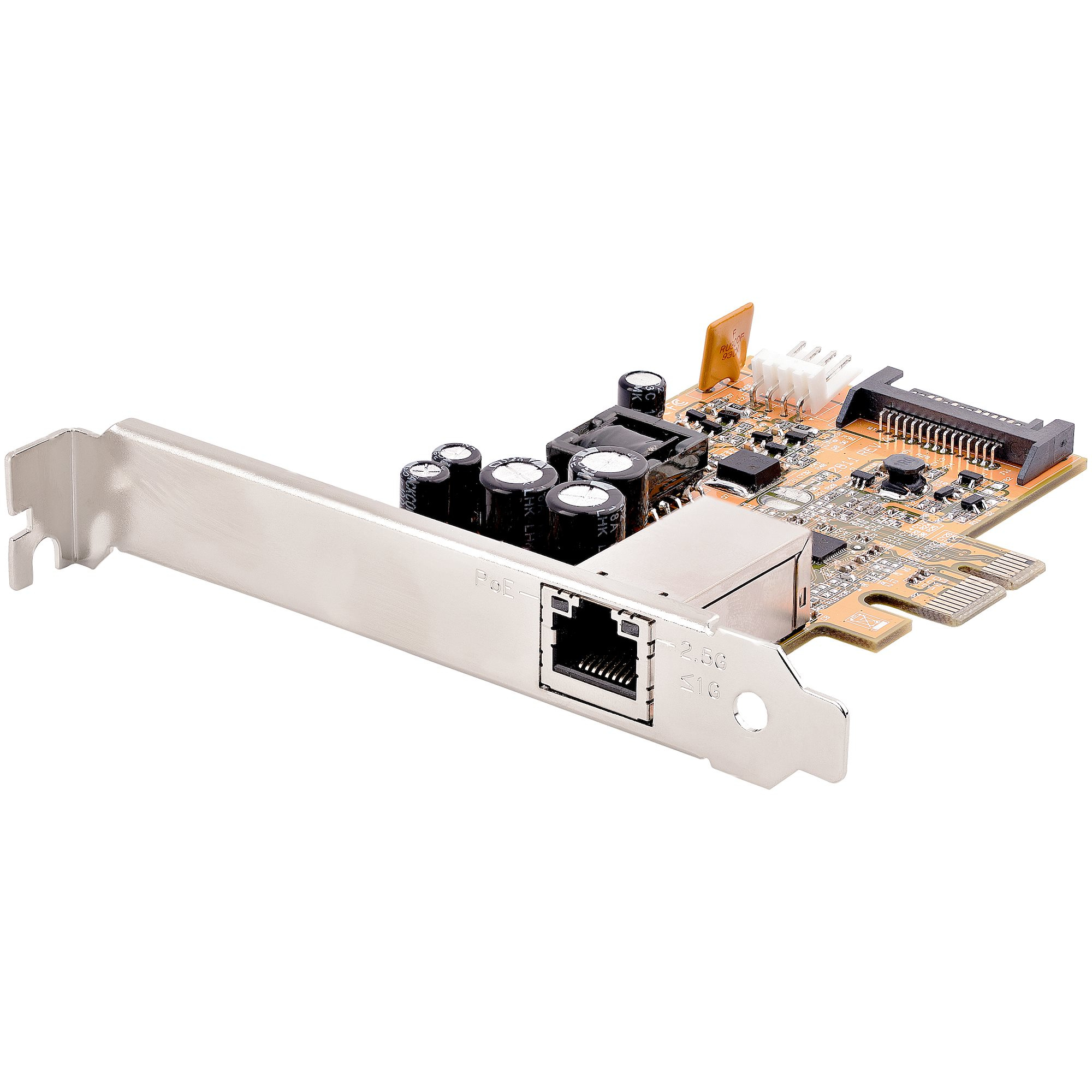

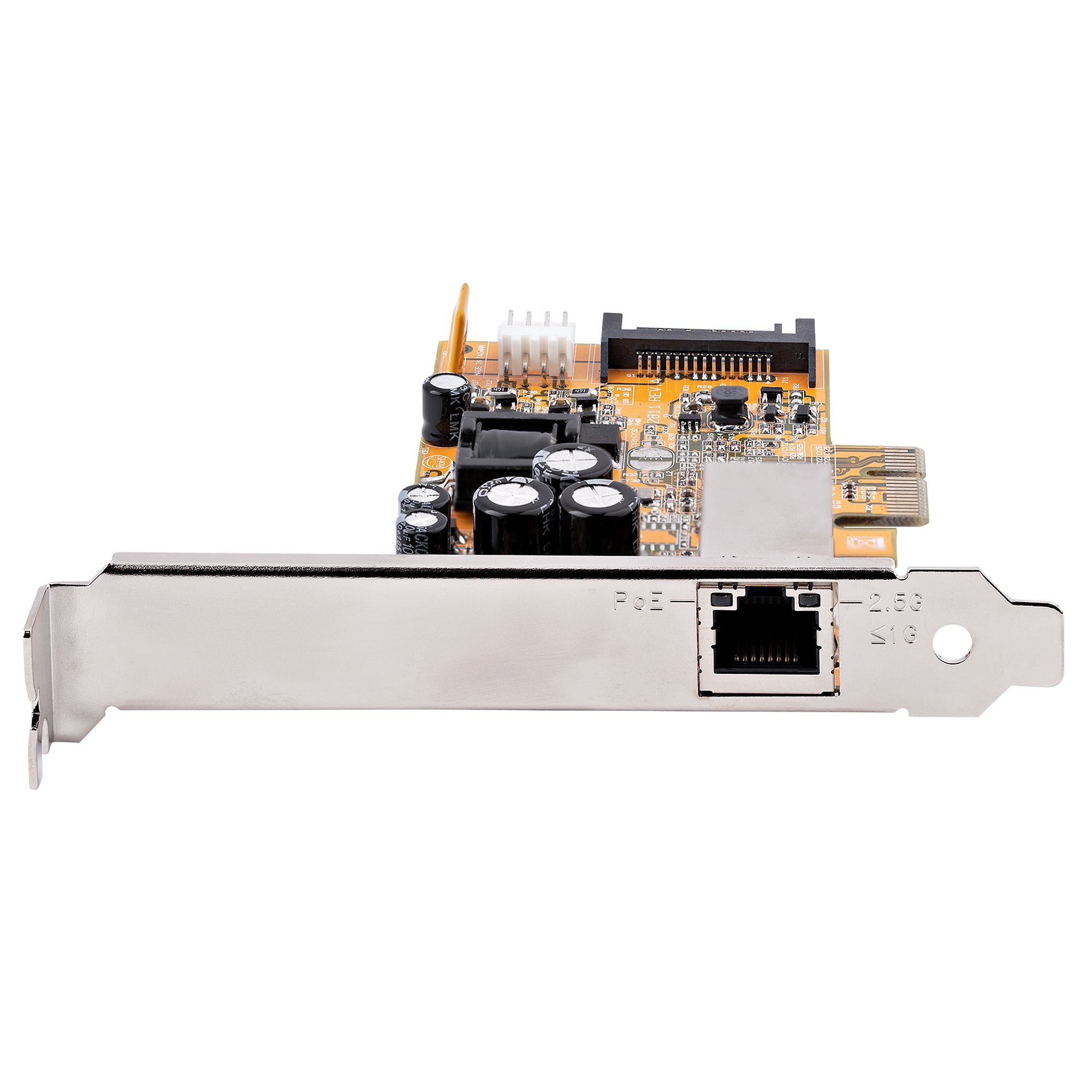

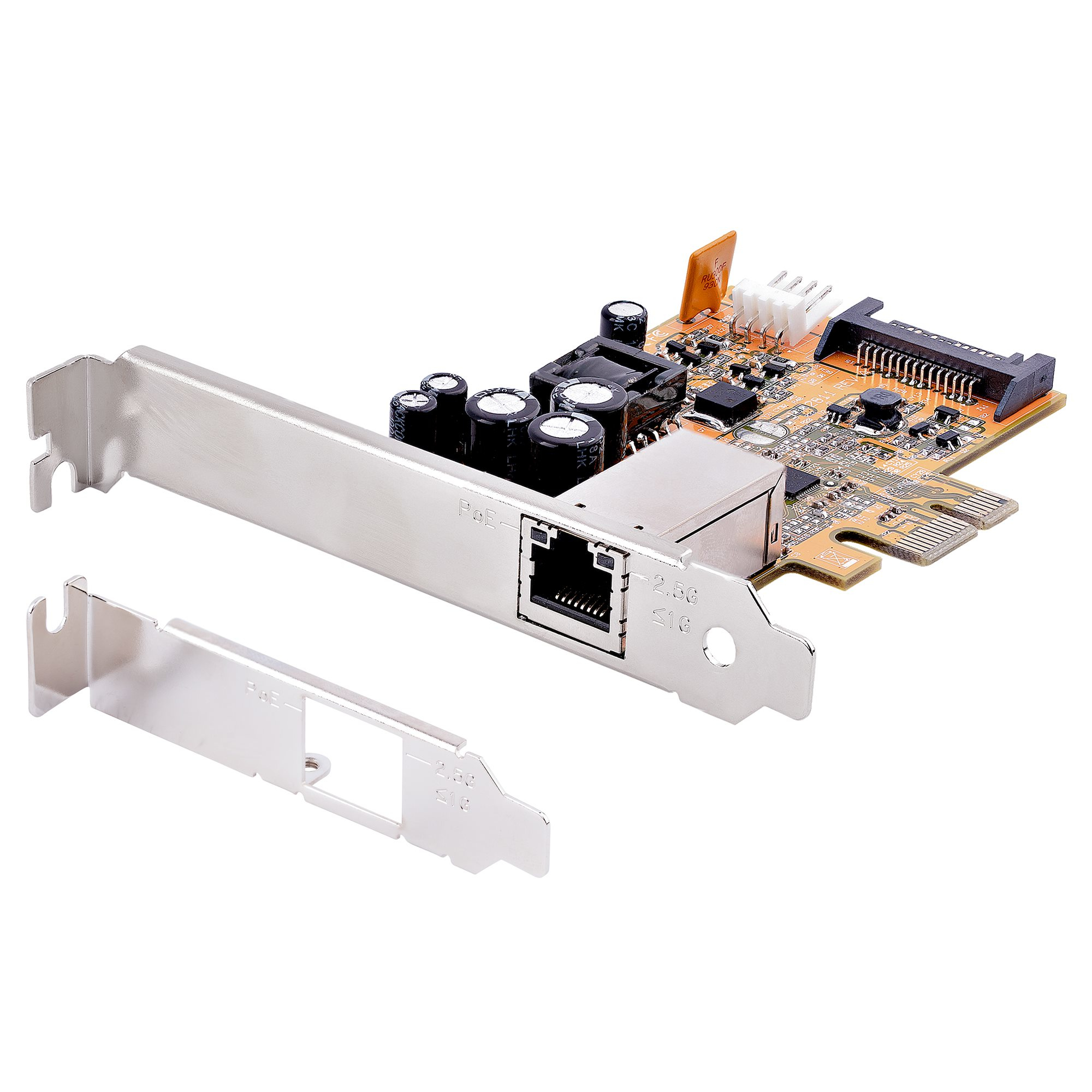

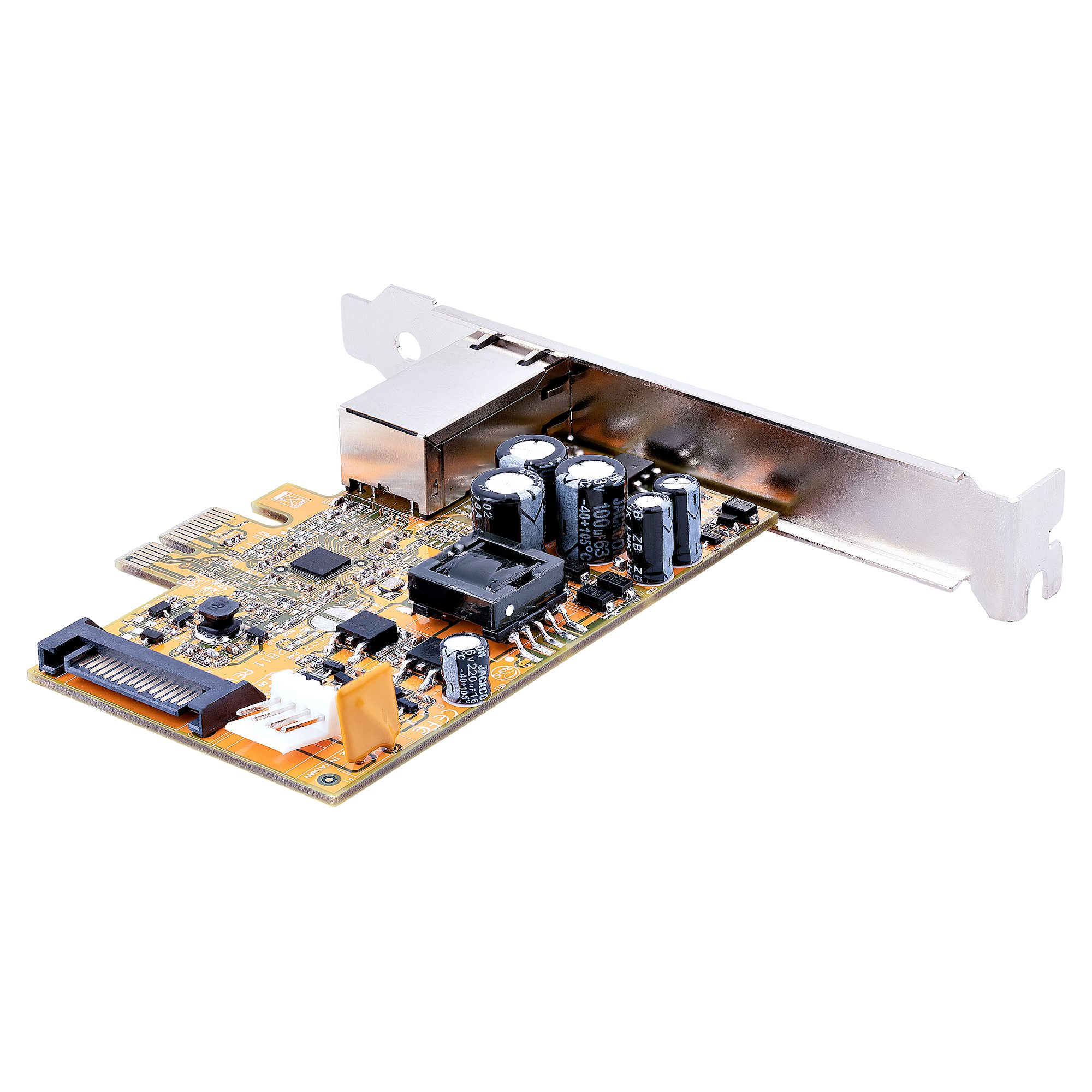

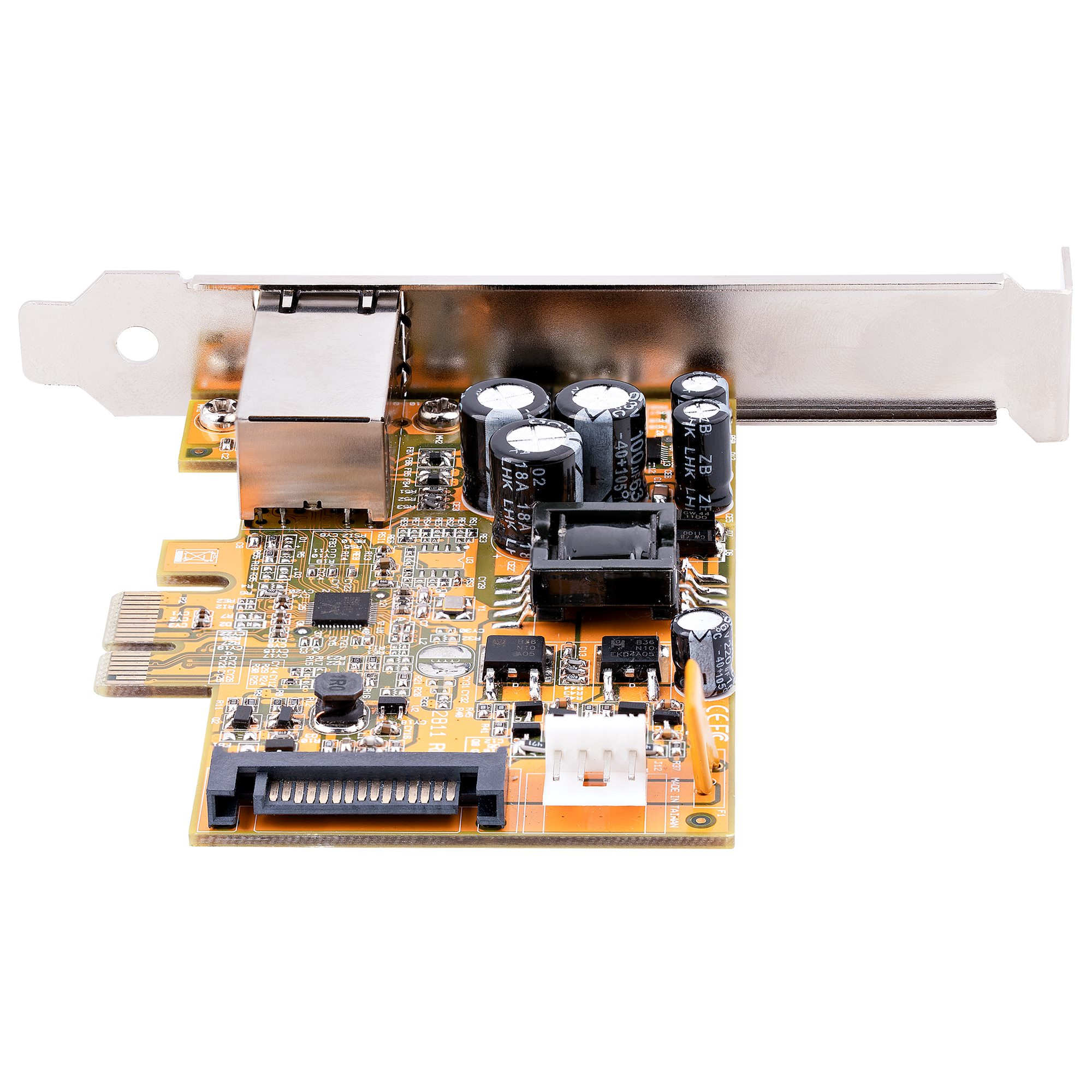

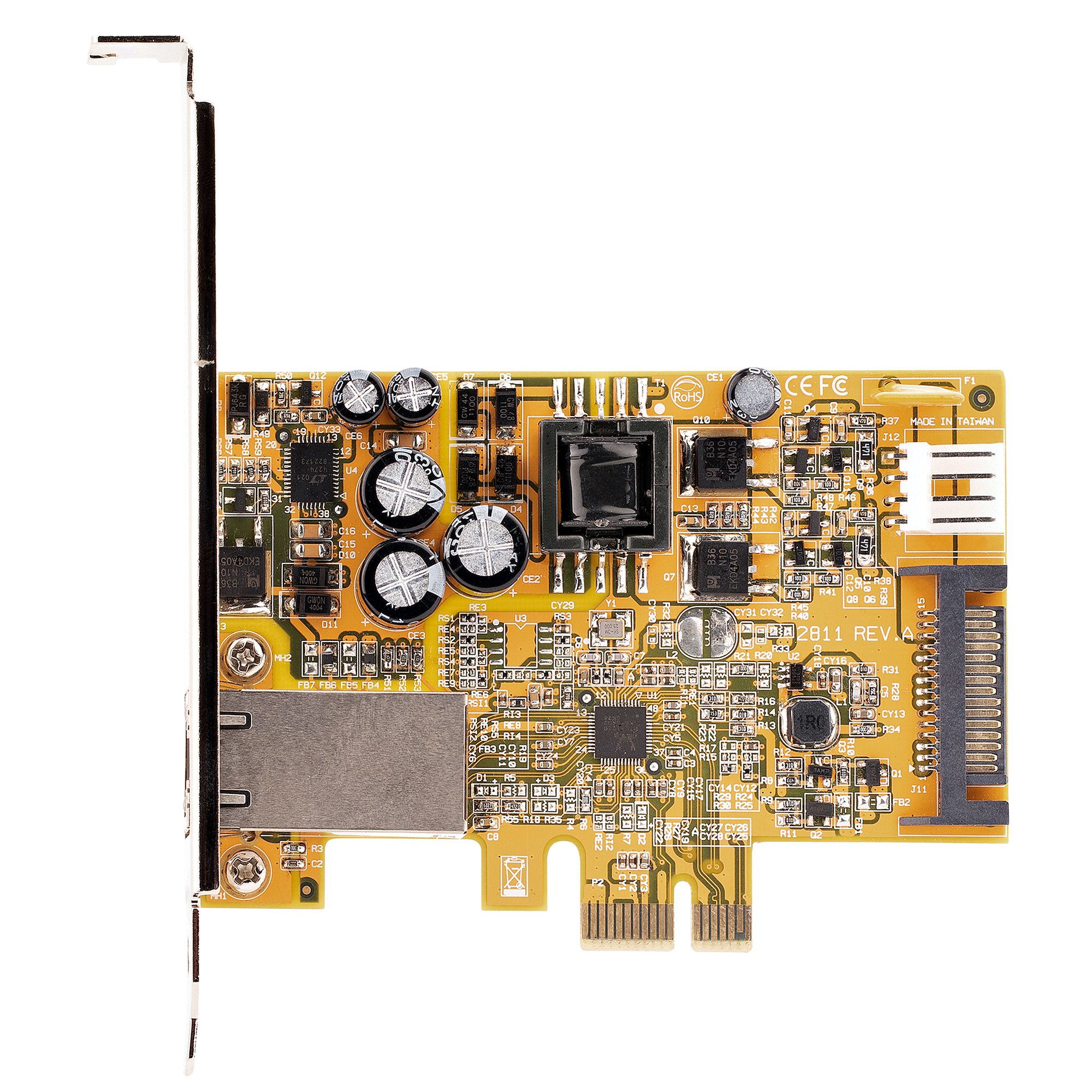

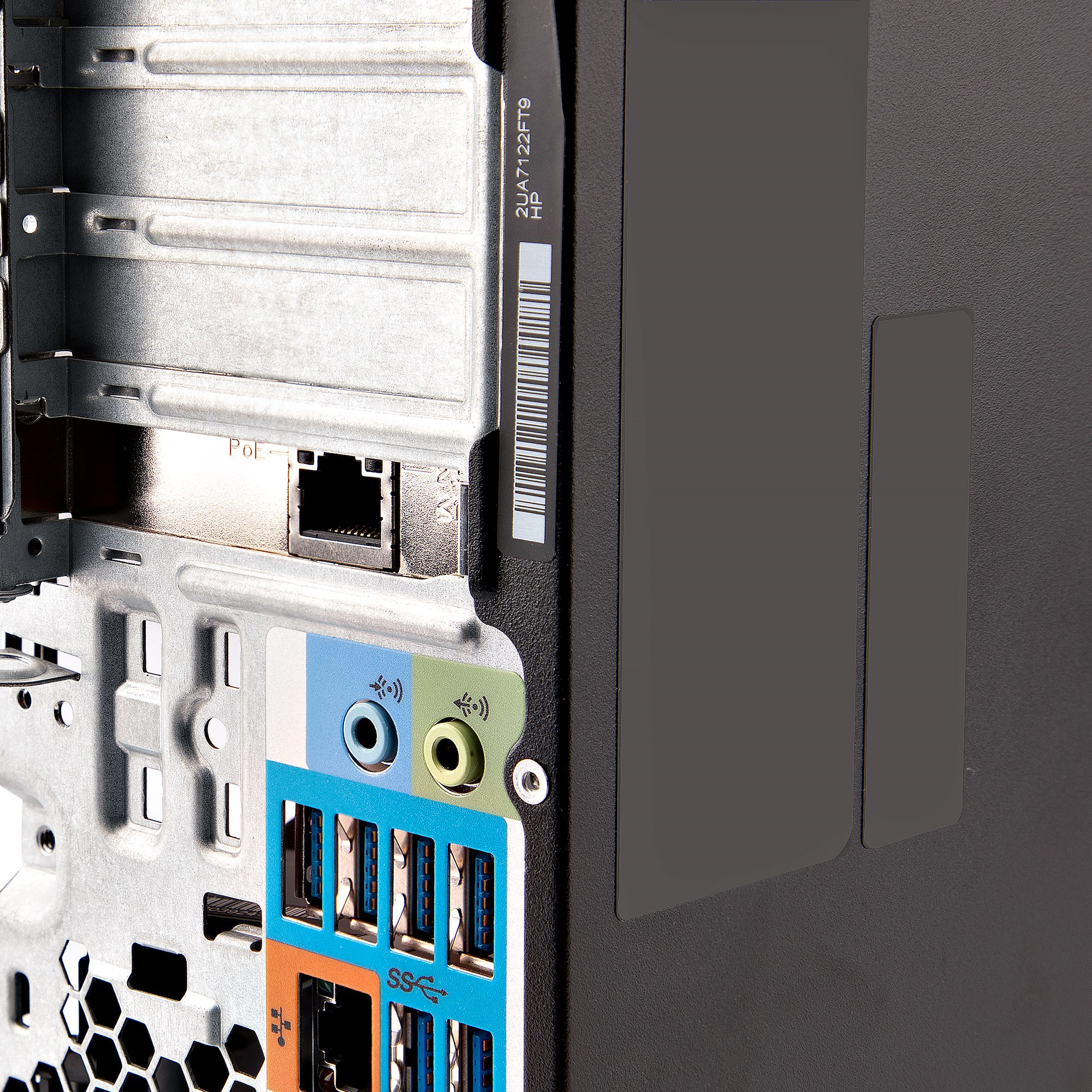

1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45
30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket
Model ST1000PEXPSEEAN 065030893107
46 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- Weight220 g
- InternalYes
- Output voltage48 V
- Operating temperature (T-T)0 - 55 °C
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Weight
- 220 g
- Internal
- Yes
- Output voltage
- 48 V
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- StarTech.com
- Category
- Network Card
- Model
- ST1000PEXPSE
- Part number
- ST1000PEXPSE
- EAN / UPC
- 065030893107
- Also known as
- StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket
Specifications
46 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| PCI version | 2.1 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
| Maximum operating distance | 100 m |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Chipset | Realtek RTL8125B |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 48 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 95 mm |
| Height | 15 mm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 144 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 220 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 537 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 345 mm |
| Products per master (outer) case | 50 pc(s) |
