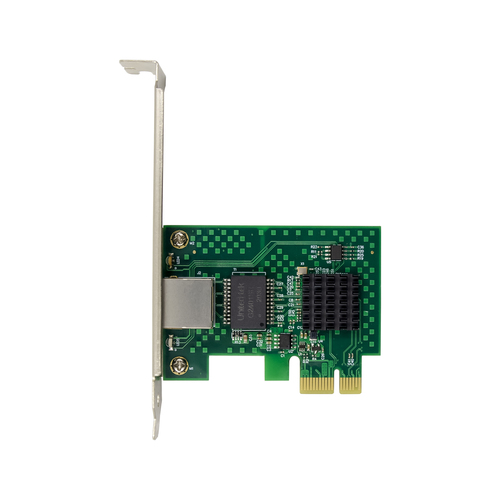

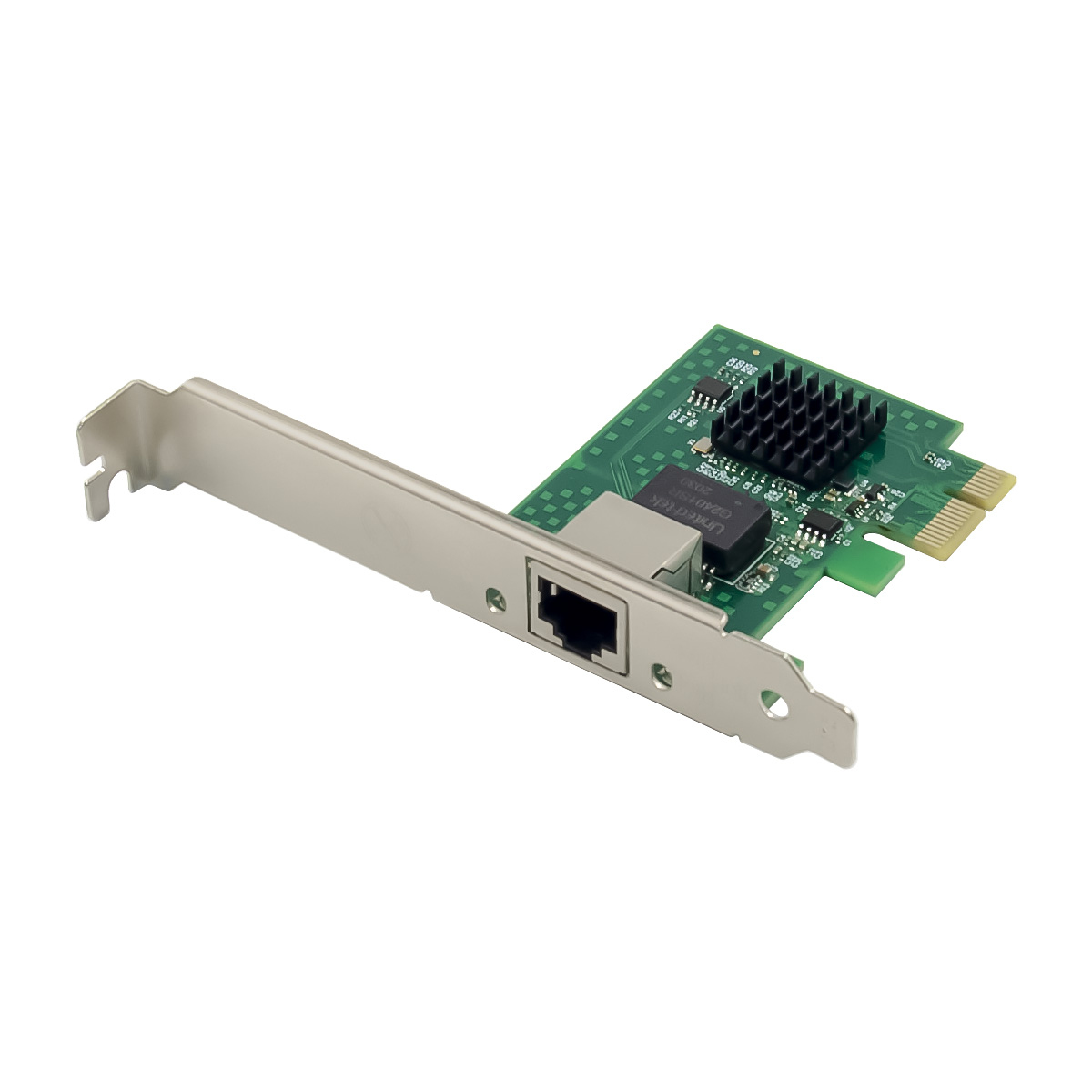

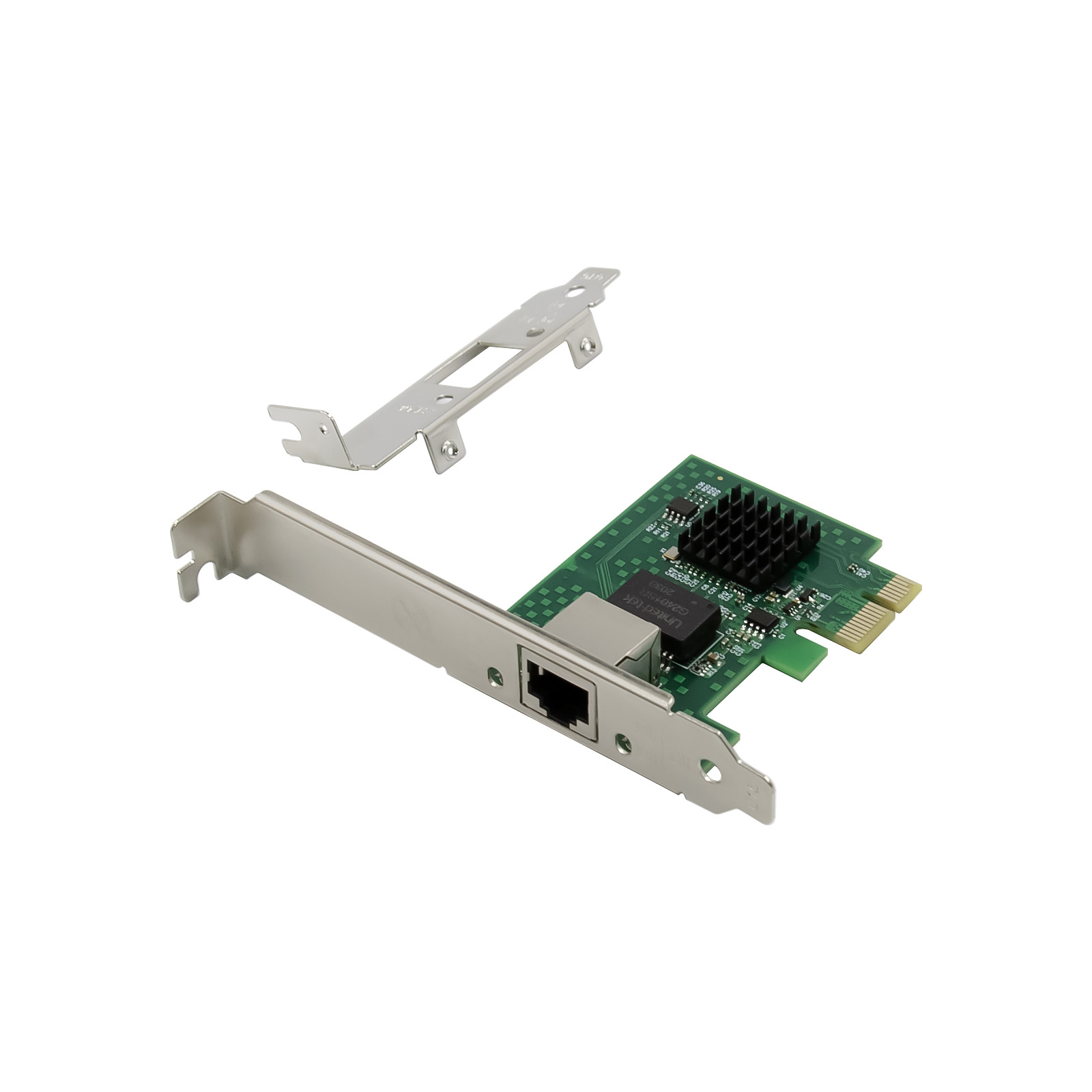

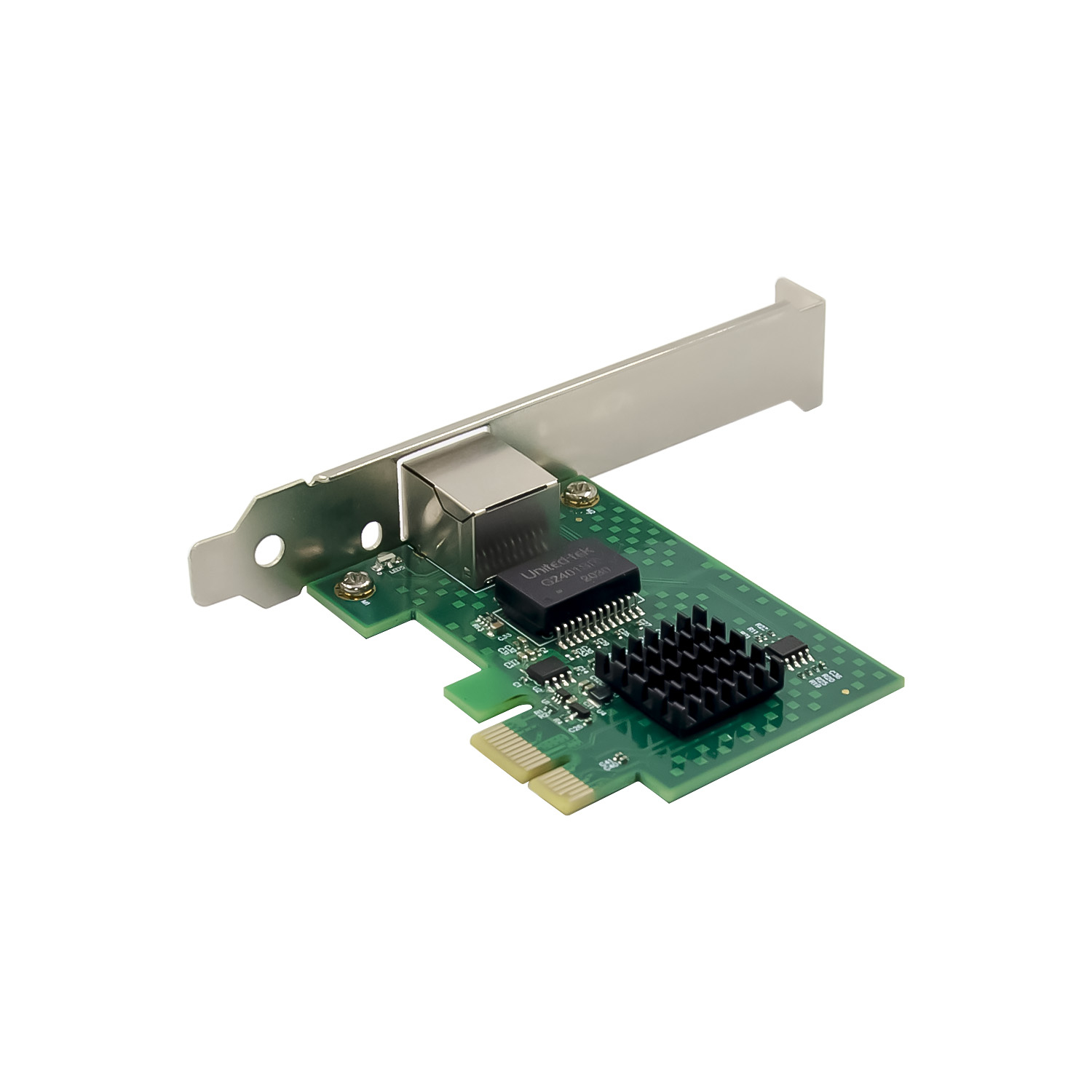

2.5-Gigabit PCIe Network Card, 1 x RJ45
Model GNC-0113EAN 4015867236239
48 specifications
- Speed5000 Mbit/s
- ConnectivityWired
- Weight40 g
- ColourGreen
- InternalYes
- Operating temperature (T-T)0 - 45 °C
Overview
- Speed
- 5000 Mbit/s
- Connectivity
- Wired
- Weight
- 40 g
- Colour
- Green
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- LevelOne
- Category
- Network Card
- Model
- GNC-0113
- Part number
- GNC-0113
- EAN / UPC
- 4015867236239, 4015867244654
- Also known as
- LevelOne 2.5-Gigabit PCIe Network Card, 1 x RJ45
Specifications
48 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 3.1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Wake-on-LAN ready | Yes |
| Jumbo frames | 9500 |
| Jumbo frames support | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Green |
| Country of origin | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 55 mm |
| Height | 20 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 183 mm |
| Package depth | 152 mm |
| Package height | 30 mm |
| Package weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517620090 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 189.4 cm |
| Master (outer) cases per pallet | 19 pc(s) |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Buffer size | 40 KB |
