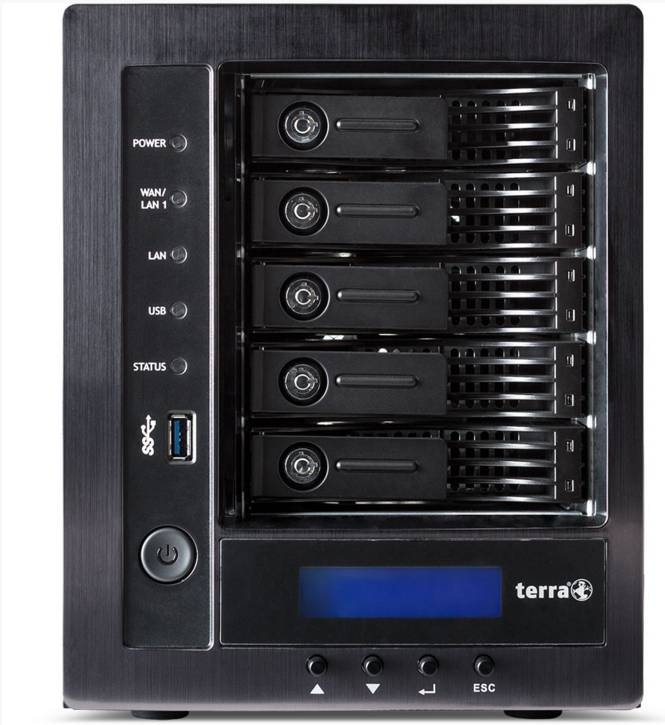

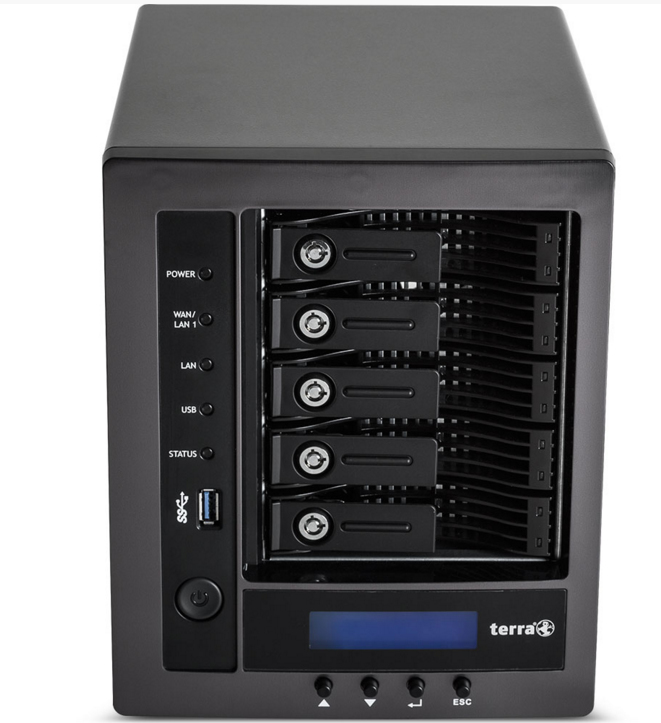

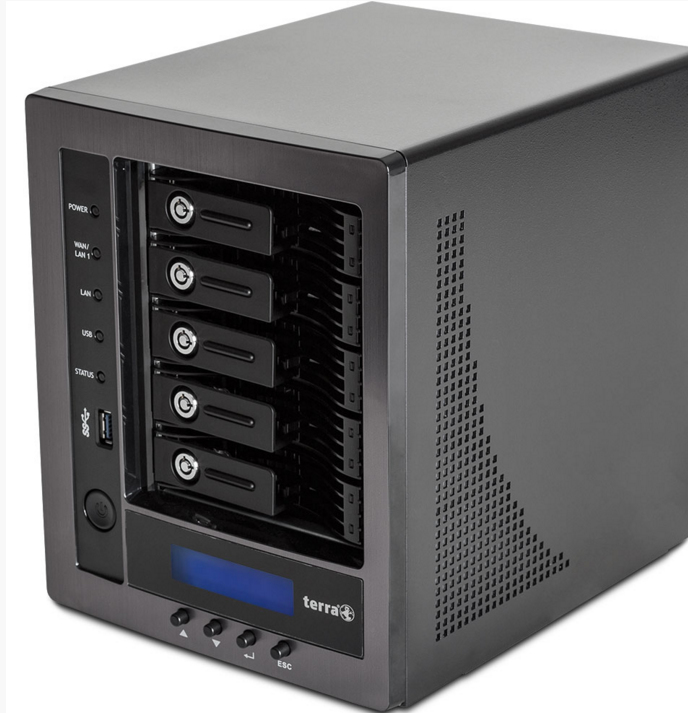

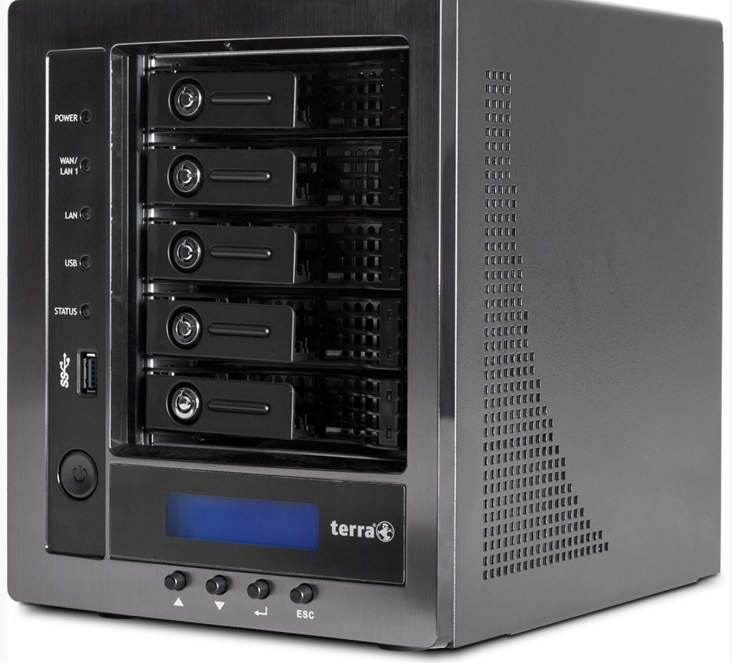

TERRA NASBOX 5-2002 G3

Model NASBOX 5-2002 G3Part no. 1100906EAN 4039407032020

91 specifications

Overview

Brand: TERRA
Category: NAS & Storage Servers
Model: NASBOX 5-2002 G3
Part number: 1100906
EAN / UPC: 4039407032020
Also known as: TERRA NASBOX 5-2002 G3 NAS Intel® Celeron® J1900 4 GB DDR3 2 TB HDD Linux Black

91 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	2 TB
Number of storage drives installed	2
Number of storage drives supported	5
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
HDD speed	5400 RPM
Maximum supported storage capacity	30 TB
RAID support	Yes
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor frequency	2 GHz
Processor boost frequency	2.42 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR1SC
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	25 X 27 mm
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor socket	BGA 1170
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Product colour	Black

Specification	Value
Type	NAS
Built-in FTP server	Yes
Network Time Protocol (NTP) client	Yes

Specification	Value
Operating system installed	Linux
Operating system version	Fedora

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	4
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Specification	Value
Processor ARK ID	78867
