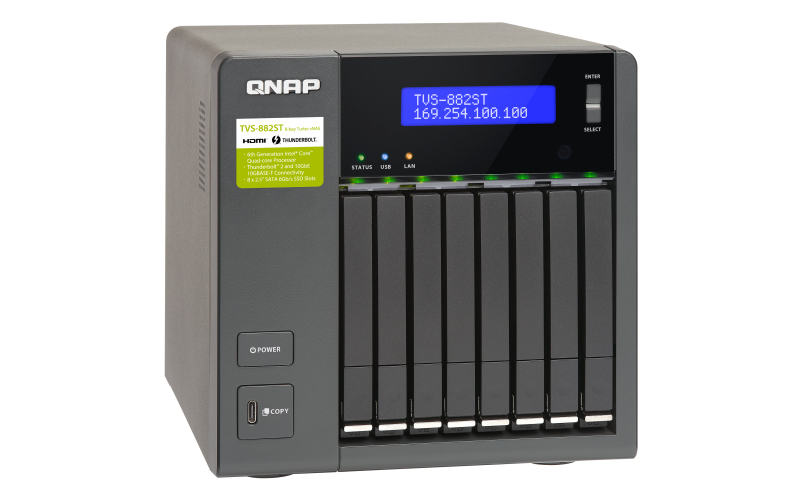

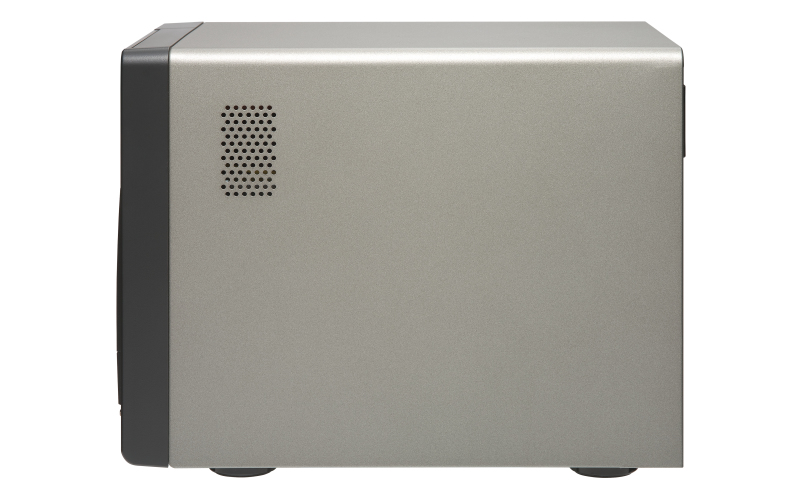

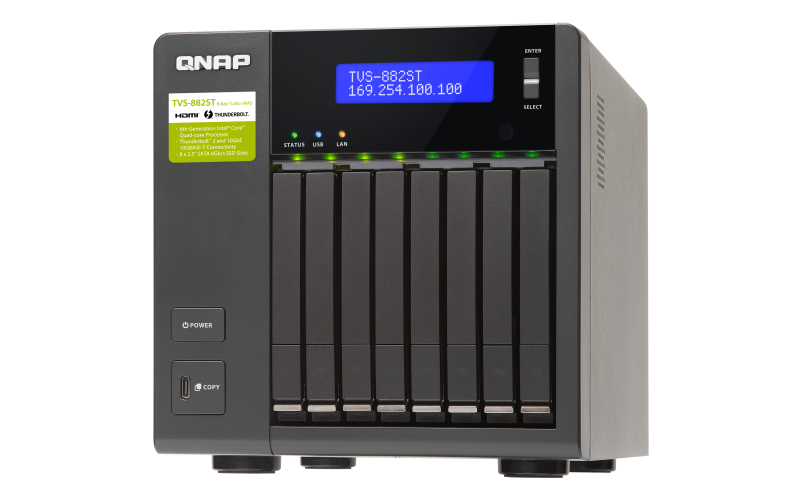

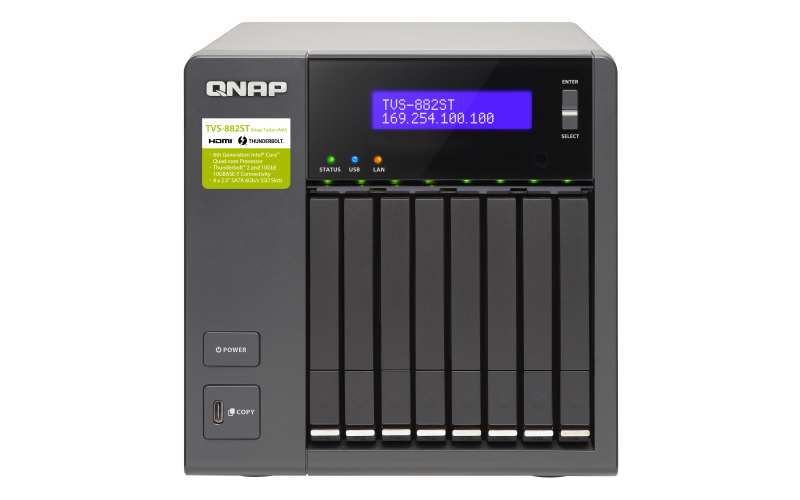

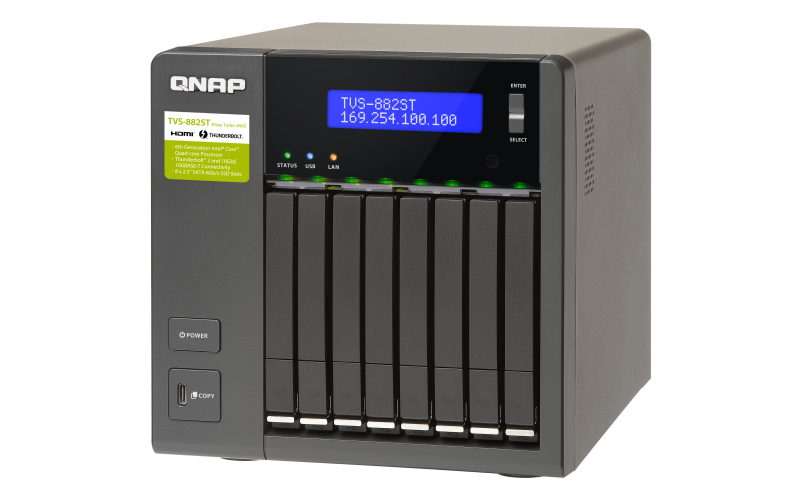

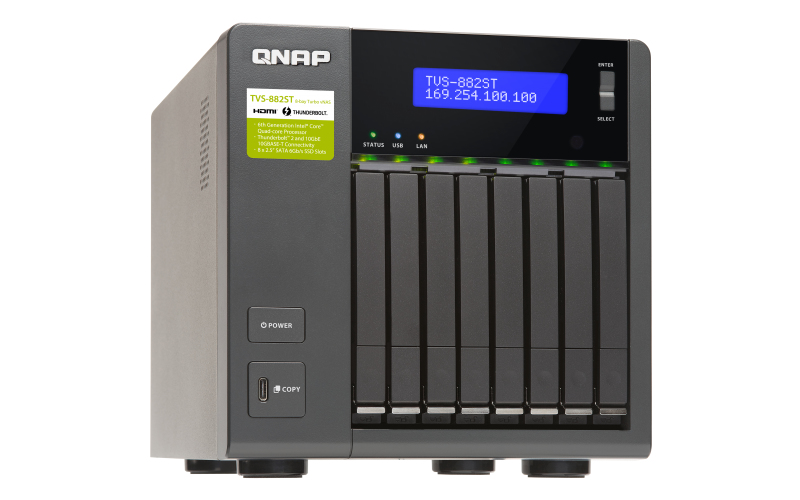

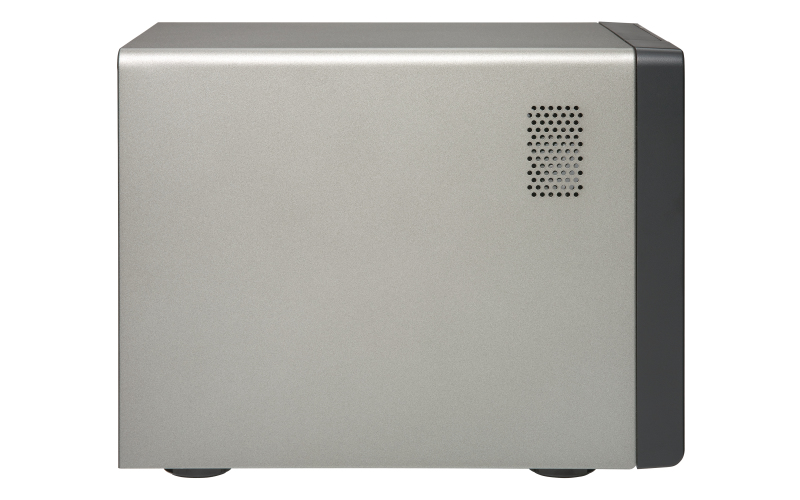

TVS-882ST NAS Desktop Intel® Core™ i5 i5-6442EQ
8 GB DDR4 0 TB QNAP Turbo System Black
Model TVS-882STPart no. TVS-882ST-I5-8G/24TB-IW+REAN 5055628432332
175 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Noise15.2 dB
- TypeNAS
- OSQNAP Turbo System
- Weight3.97 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Noise
- 15.2 dB
- Type
- NAS
- OS
- QNAP Turbo System
- Weight
- 3.97 kg
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TVS-882ST
- Part numbers
- TVS-882ST-I5-8G/24TB-IW+R, TVS-882ST-I5-8G/32TB-IW, TVS-882ST-I5-8G/32TB-IW+R, TVS-882ST-I5-8G/16TB-IWP, TVS-882ST-I5-8G/32TB-IWP, TVS-882ST-I5-8G/48TB-IWP +10 more
- EAN / UPC
- 5055628432332, 5055628432349, 5055628432356, 5055628432363 +3 more
- Also known as
- QNAP TVS-882ST NAS Desktop Intel® Core™ i5 i5-6442EQ 8 GB DDR4 0 TB QNAP Turbo System Black
Specifications
175 specifications in 15 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive size | 2.5" |
| RAID support | Yes |
| RAID levels | 1, 2, 3, 4, 5, 6, JBOD |

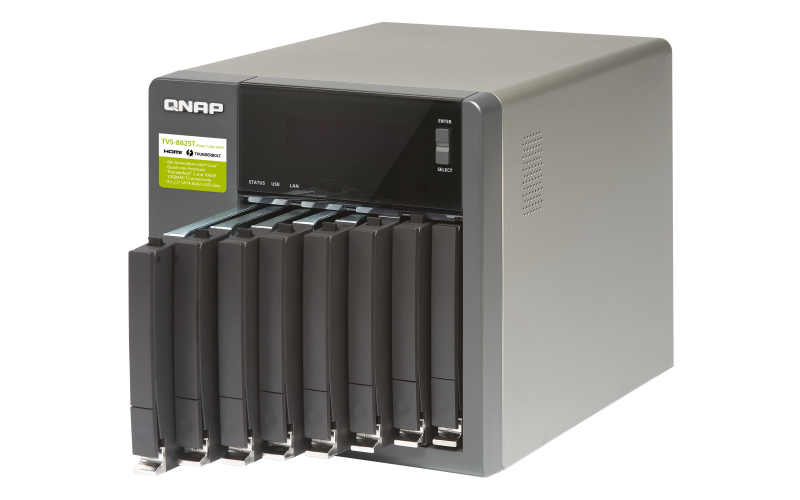

| Hot-swap drive bays | Yes |
| Supported file systems | ext4 |
| Bad block scan | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor model | i5-6442EQ |
| Processor frequency | 1.9 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 6 MB |
| Bus type | DMI3 |
| CPU configuration (max) | 1 |
| ECC supported by processor | No |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| PCI Express slots version | 3.0 |
| Processor cache type | Smart Cache |
| Processor code | SR2DY |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42 x 28 mm |
| Processor series | Intel Core i5-6400 Mobile series |
| Processor socket | BGA 1440 |
| Stepping | R0 |
| System bus rate | 8 GT/s |
| Tcase | 100 °C |
| Thermal Design Power (TDP) | 25 W |
| Tjunction | 100 °C |
| On-board graphics card model | Intel® HD Graphics 530 |
| Maximum internal memory supported by processor | 64 GB |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Flash memory | 512 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Wi-Fi | No |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |

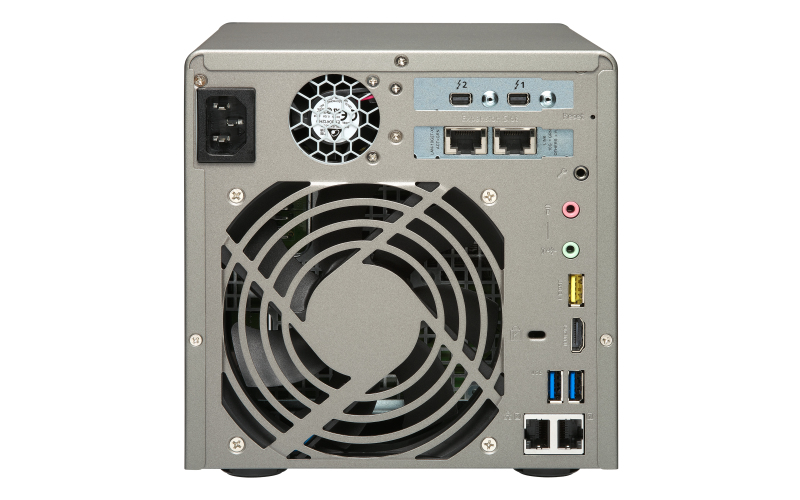

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Fiber ports quantity | 0 |
| HDMI ports quantity | 1 |
| Audio in/out | Yes |
| Microphone in | Yes |
| Thunderbolt 2 ports quantity | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x191B |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| LED indicators | HDD, Power, Status, USB |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Noise level | 15.2 dB |
| Built-in optical drive | No |
| Snapshot | Yes |
| Web-based management | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Disk scan | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES, AES, FIPS 140-2 |
| Share folder | CIFS/SMB |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.3 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 42.7 W |
| Power consumption (HDD standby) | 25.57 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 235 mm |
| Height | 177 mm |
| Weight | 3.97 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Number of screws | 32 |
| Remote control included | Yes |
| Package type | Box |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Maximum number of PCI Express lanes | 16 |
| Thermal Monitoring Technologies | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Processor ARK ID | 90617 |
