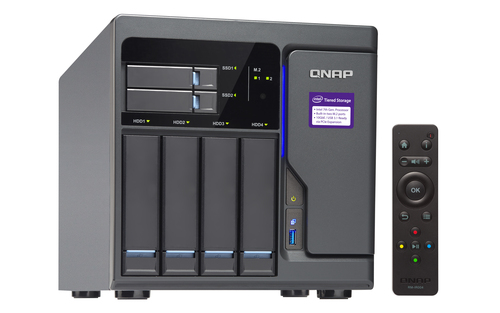

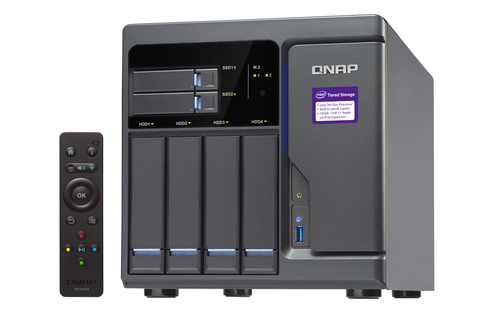

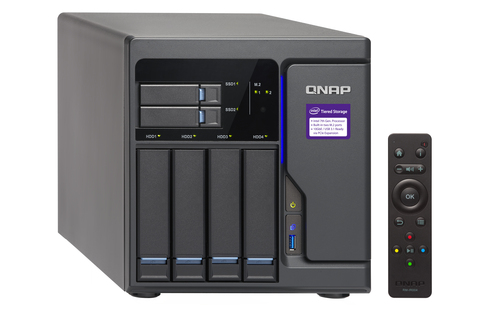

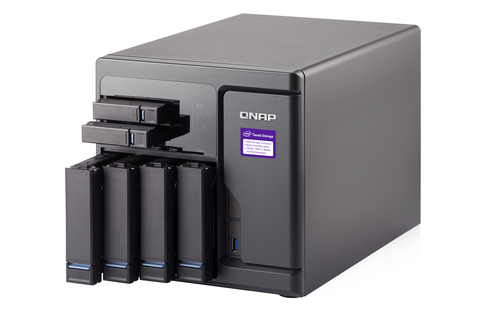

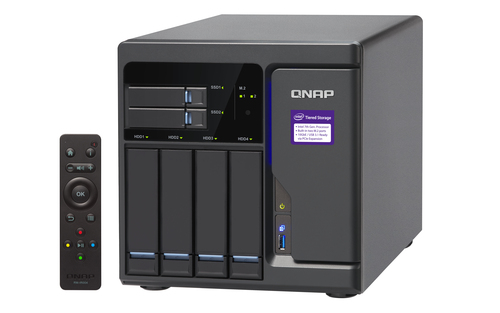

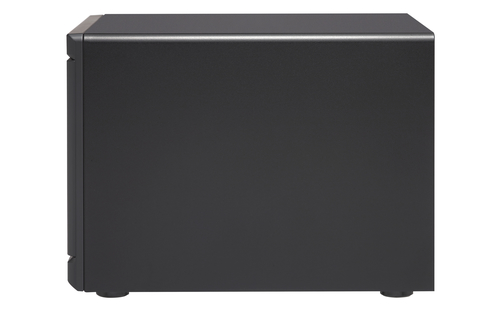

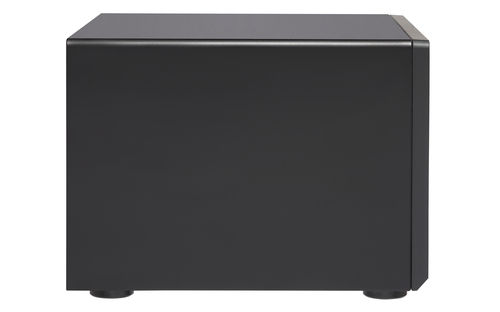

TVS-682 NAS Tower Intel® Core™ i3 i3-6100

8 GB DDR4 0 TB QNAP Turbo NAS System Black

Model TVS-682Part no. TVS-682-PT-8G-48TB-SEAENEAN 5050914956202

184 specifications

ProcessorIntel® Core™ i3
Memory8 GB
Noise20.5 dB
TypeNAS
OSQNAP Turbo NAS System
Weight7.7 kg

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 8 GB
Noise: 20.5 dB
Type: NAS
OS: QNAP Turbo NAS System
Weight: 7.7 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-682
Part numbers: TVS-682-PT-8G-48TB-SEAEN, TVS-682-I3-8G, TVS-682-PT-8G, TVS-682-I3-8G/12TB-R, TVS-682-I3-8G/12TB-S, TVS-682-PT-8G-6TB-SEA +34 more
EAN / UPC: 5050914956202, 4058154113349, 4712511129564, 5050914947804 +56 more
Also known as: QNAP TVS-682 NAS Tower Intel® Core™ i3 i3-6100 8 GB DDR4 0 TB QNAP Turbo NAS System Black

Specifications

184 specifications in 15 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	6
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 2, 3, 4, 5, 6, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100
Processor frequency	3.7 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
Bus type	DMI3
CPU configuration (max)	1
ECC supported by processor	Yes
FSB Parity	No
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor cache type	L3
Processor code	SR2HG
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-6100 series
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
Stepping	S0
System bus rate	8 GT/s
Tcase	65 °C
Thermal Design Power (TDP)	51 W
On-board graphics card model	Intel® HD Graphics 530
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	34.1 GB/s
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4
Maximum RAM supported	64 GB
Memory slots	4
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
WLAN adapter supported	Yes

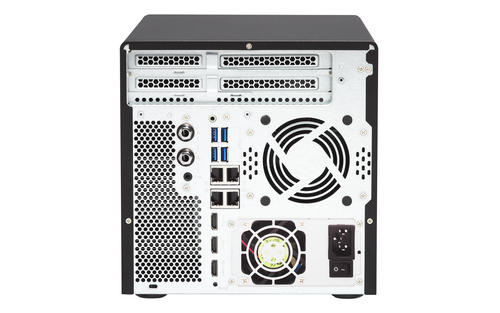

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Fiber ports quantity	0
HDMI ports quantity	3

Graphics

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1912
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
Fan diameter	8 cm
LED indicators	HDD, SSD, Status
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in speaker(s)	Yes
Number of built-in speakers	2

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	20.5 dB
Management protocols	DDNS, SNMP v2/v3
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Backup button	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	128-bit AES, 256-bit AES, FIPS 140-2, HTTPS, MSCHAPv2, SNMP, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo NAS System
Operating system version	4.2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Other operating systems supported	Android

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Output current	5 A

Weight & dimensions

Specification	Value
Width	224.9 mm
Depth	319.8 mm
Height	231.9 mm
Weight	7.7 kg
Package weight	9.5 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes
Number of screws	2

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
Processor ARK ID	90729
